Wastewater/Activity/PacpInspection/1.0Aug 3, 2017, 05:25 AM
- Date
- 08/02/2017
- W/O
- 646290
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00060
- PipeID
- P11593
- Time
- 10:25 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4676
- Sewer Name
- J JOINT OUTFALL J - UNIT 2A
- City
- HARBOR CITY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_646290_TV08100_JUL2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- J 0005
- Downstream MH
- J 0004
- Dir. of Survey
- Downstream
- Length Surveyed
- 631.1 ft.
- Total Length
- 631.1 ft.
- Structural Index
- 3
- Structural Quick
- 3X2X
- Structural Rating
- 625
- O&M Index
- 2
- O&M Quick
- 412X
- O&M Rating
- 254
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 879
Observation photos (3)

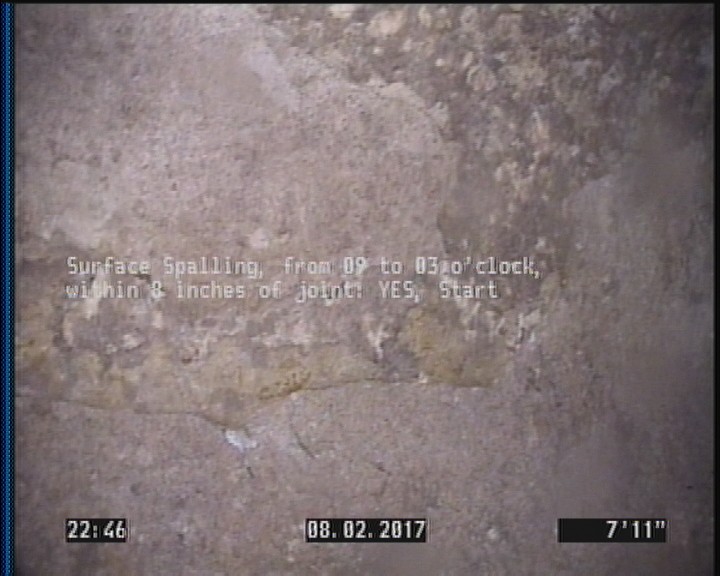

7.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
7.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

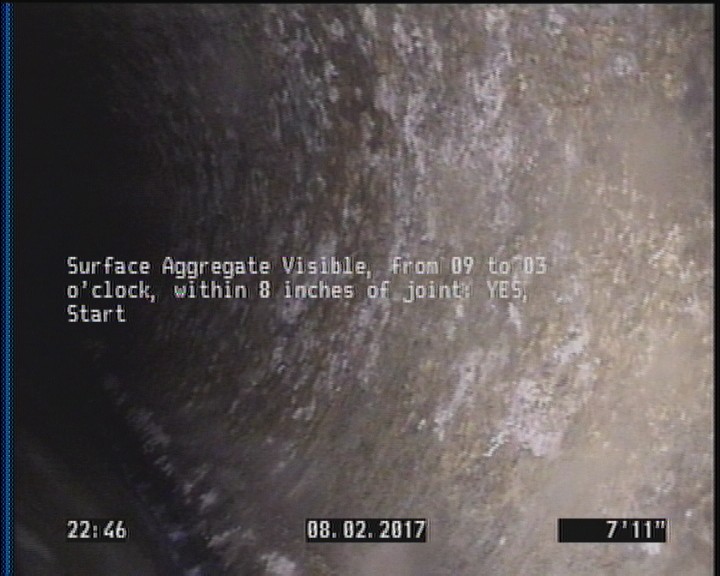

7.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 631.1 | AMH | J 0004 |
| 0 | MWM | — |
| 631.1 | SAV | — |
| 0 | AMH | J 0005 |
| 567.9 | TFA | — |
| 631.1 | MGO | CAPPED CONNECTION 3 OC |
| 631.1 | MGO | CAPPED CONNECTION AT 9 OC |
| 631.1 | SSS | — |
| 7.9 | SSS | — |
| 7.9 | DAGS | — |
| 7.9 | SAV | — |
| 631.1 | DAGS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345614
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-02T22:25:52-07:00
- sewer_category
- Gravity
