Wastewater/Activity/PacpInspection/1.0May 16, 2016, 09:44 AM
H 0578_H 0577_16052016_024511.mp4
- Date
- 05/16/2016
- W/O
- 568671
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00188
- PipeID
- P11002
- Time
- 2:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3349
- Sewer Name
- H JOINT OUTFALL H - UNIT 8E
- City
- BALDWIN PARK
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_568671_TV15173_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- H 0578
- Downstream MH
- H 0577
- Dir. of Survey
- Downstream
- Length Surveyed
- 133.6 ft.
- Total Length
- 133.6 ft.
- Structural Index
- 2
- Structural Quick
- 3D2D
- Structural Rating
- 127
- O&M Index
- 2
- O&M Quick
- 412D
- O&M Rating
- 56
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 183
Observation photos (4)

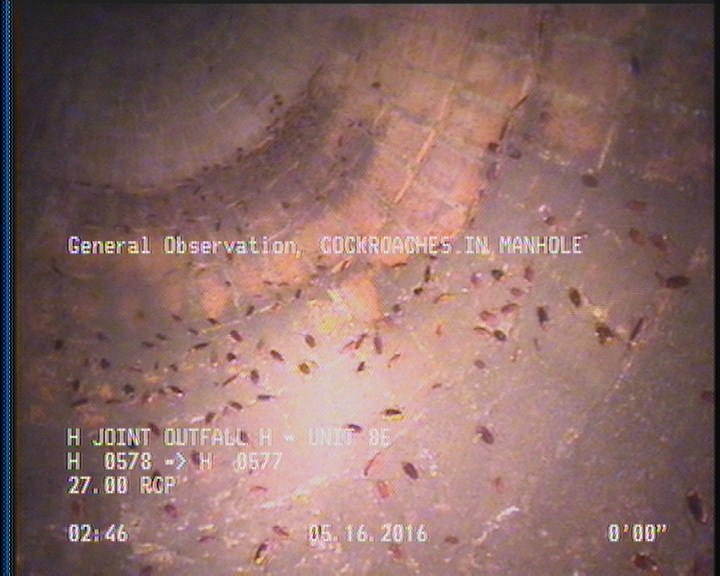

0 ft. - General Observation - COCKROACHES IN MANHOLE

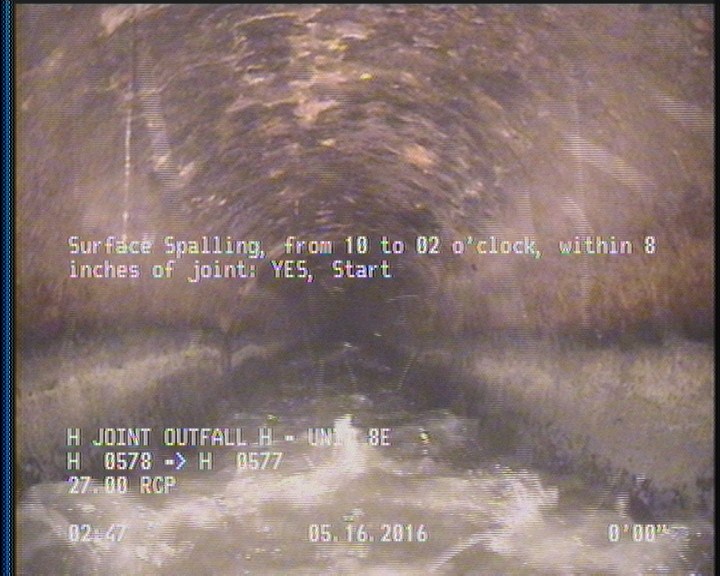

2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

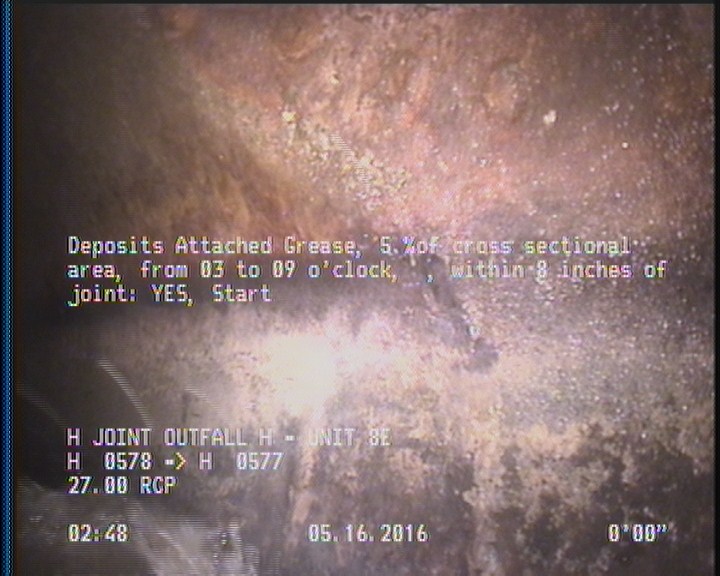

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

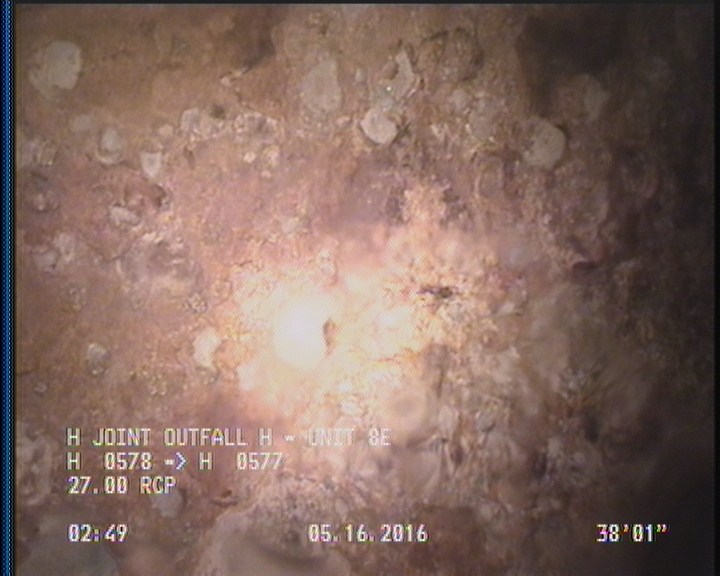

8.7 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CAPPED CONNECTION AT MH 3 O'CLOCK |
| 47.1 | TFC | — |
| 0 | AMH | H 0578 |
| 131.7 | SAV | — |
| 0 | MWL | — |
| 132.3 | SSS | — |
| 133.6 | AMH | H 0577 |
| 2 | SSS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 8.7 | SAV | — |
| 133.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 131.7 | DAGS | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC305628
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-16T02:44:54-07:00
- sewer_category
- SIPHON
