Wastewater/Activity/PacpInspection/1.0Sep 11, 2017, 05:34 PM
02 1550_02 1621_9112017_123301.mp4
- Date
- 09/11/2017
- W/O
- 0657852
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00233
- PipeID
- P04061
- Time
- 10:34 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7510
- Sewer Name
- 02 ARIZONA AVENUE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170911SHO_ARIZONA_AVENUE_RELIEF_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 02 1550
- Downstream MH
- 02 1621
- Dir. of Survey
- Downstream
- Length Surveyed
- 88.2 ft.
- Total Length
- 88.2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

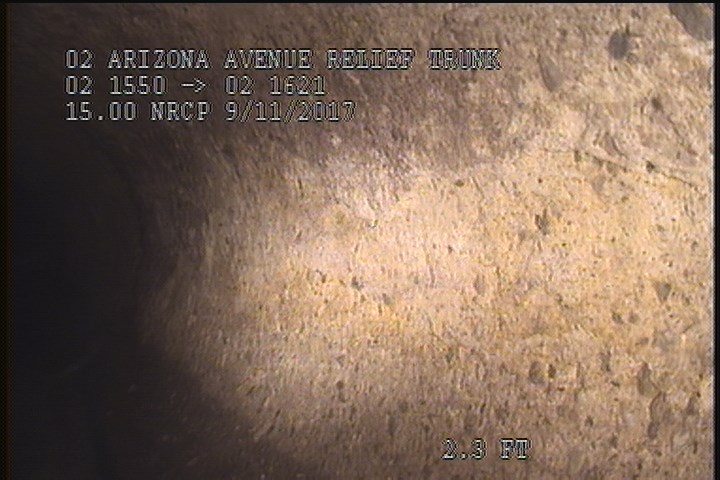

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

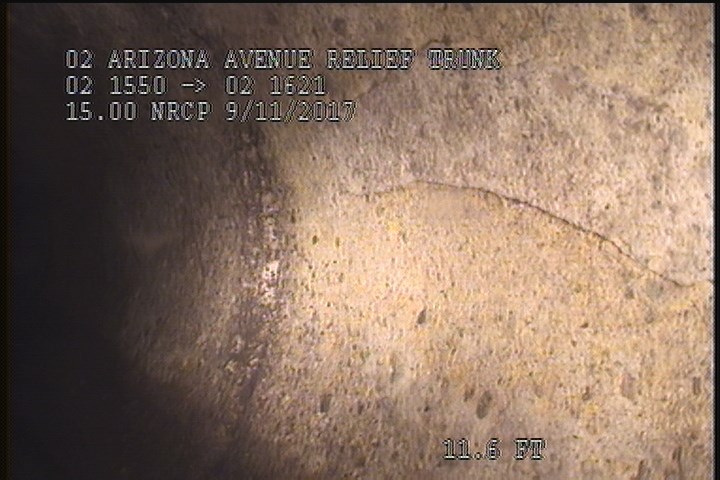

11.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 11.6 | SSS | — |
| 85.8 | SSS | — |
| 88.2 | AMH | 1240 |
| 0 | AMH | 1040 |
| 2 | SAV | — |
| 85.8 | SAV | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- RFIR
- custom_field_three
- SPALLING & AGG. VISIBLE
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-11T10:34:47-07:00
