Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2017, 11:14 AM

  • G 0158_G 0157_9142017_050622.mp4

Date
09/14/2017
W/O
0646302
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00839
Time
4:14 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0643
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20170911MDM_JOINT_OUTFALL_G_UNIT_8
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
G 0158
Downstream MH
G 0157
Dir. of Survey
Downstream
Length Surveyed
321.7 ft.
Total Length
321.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole G 0158 to G 0157
MH: G 0158MH: G 0157downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 95% START 8:00 TO 4:002 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT START24.9 ft. MGP - General Photograph - MAG COAT228.7 ft. MGO - General Observation - TILES 100% IN PLACE230.4 ft. MGO - General Observation - MAG COAT 95%321.3 ft. MGO - General Observation - MAG COAT 95% FINISH321.7 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (5)

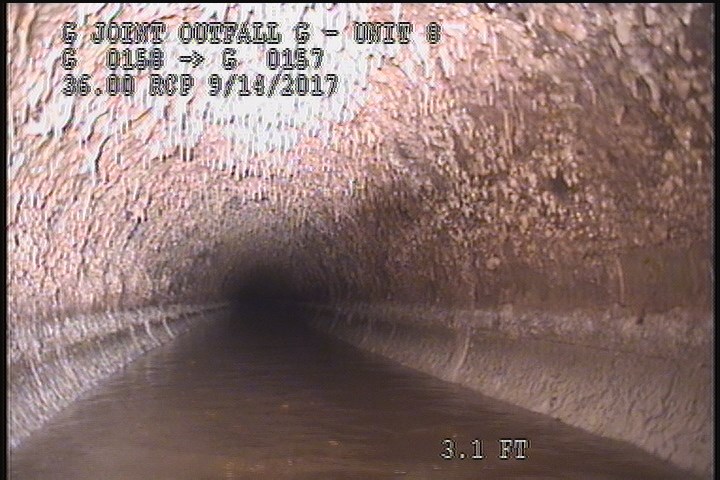

  • General Observation - MAG COAT 95% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 95% START 8:00 TO 4:00

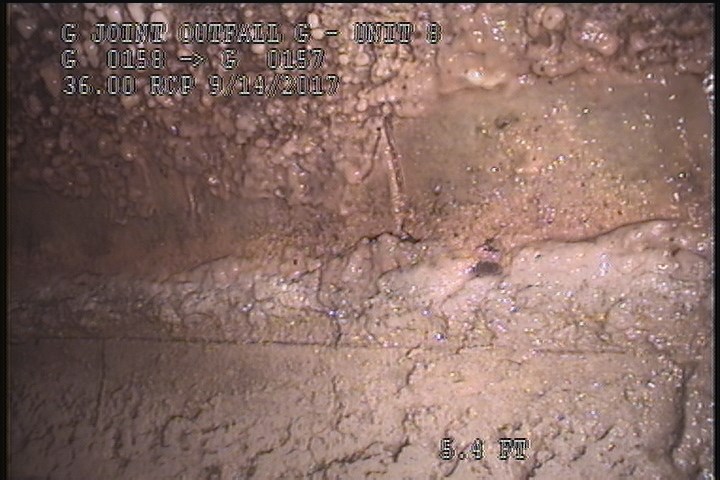

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT START

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT START

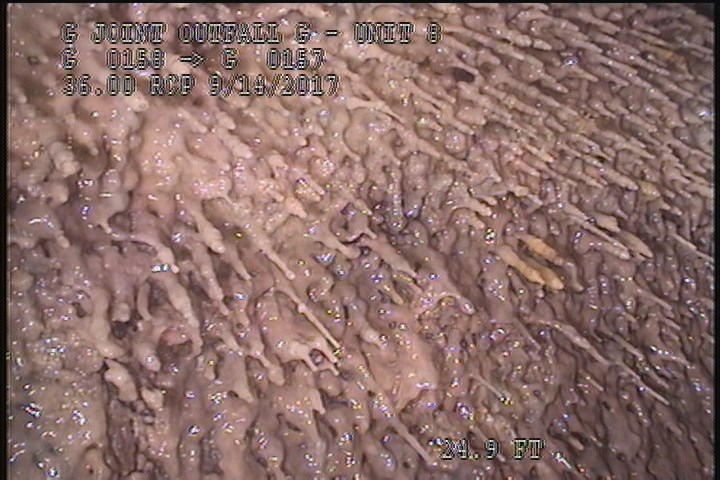

  • General Photograph - MAG COAT

    24.9 ft. - General Photograph - MAG COAT

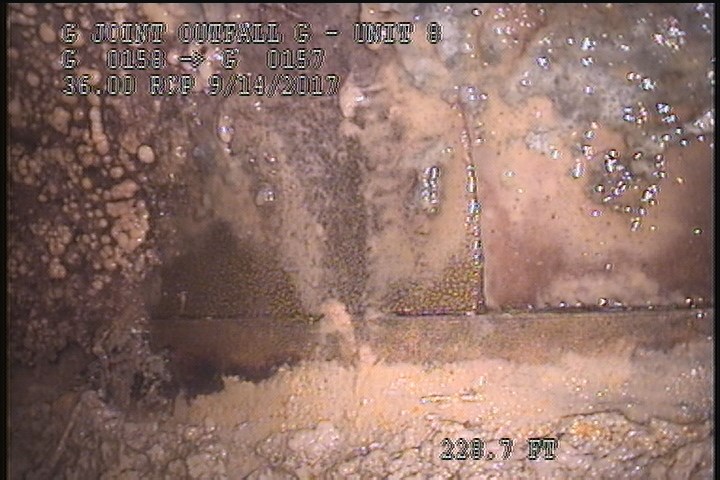

  • General Observation - TILES 100% IN PLACE

    228.7 ft. - General Observation - TILES 100% IN PLACE

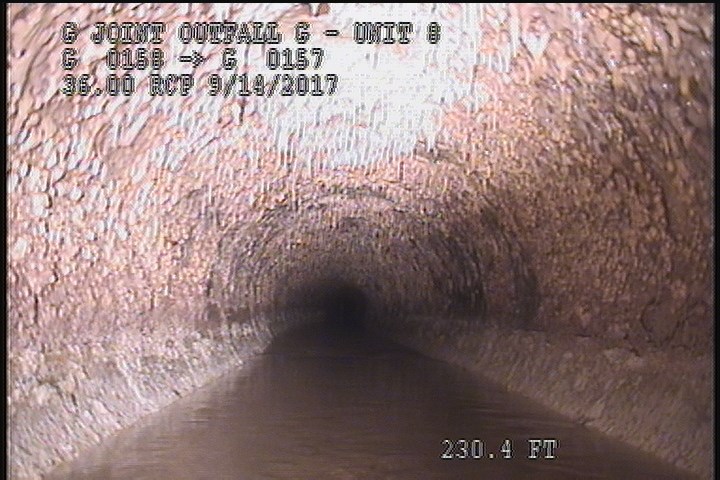

  • General Observation - MAG COAT 95%

    230.4 ft. - General Observation - MAG COAT 95%

All inspections of P00839Work order 0646302

Observations (11)

DistanceCodeObservation
321.3MGOMAG COAT 95% FINISH
0AMH4:15AM
0MGOConn. @ Mh, 3 O' Clock. Active
230.4MGOMAG COAT 95%
0MWL—
2MGOMAG COAT 95% START 8:00 TO 4:00
24.9MGPMAG COAT
321.7AMH4:40AM
2MGOTILES 100% IN PLACE UNDER MAG COAT START
0MWM—
228.7MGOTILES 100% IN PLACE

Properties (4)

custom_field_three
TILE LINE -TILES 100% IN PLACE
custom_field_two
3
customer
LACSD
datetime
2017-09-14T04:14:25-07:00
