Wastewater/Activity/PacpInspection/1.0Sep 9, 2017, 02:39 PM
03 0518_03 0516_992017_080638.mp4
- Date
- 09/09/2017
- W/O
- #
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00389
- PipeID
- P05221
- Time
- 7:39 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0636
- Sewer Name
- 03 NORTH LONG BEACH RELIEF TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- 20170909MDM_NORTH_LONG_BEACH_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0516
- Downstream MH
- 03 0518
- Dir. of Survey
- Upstream
- Length Surveyed
- 32 ft.
- Total Length
- 32 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

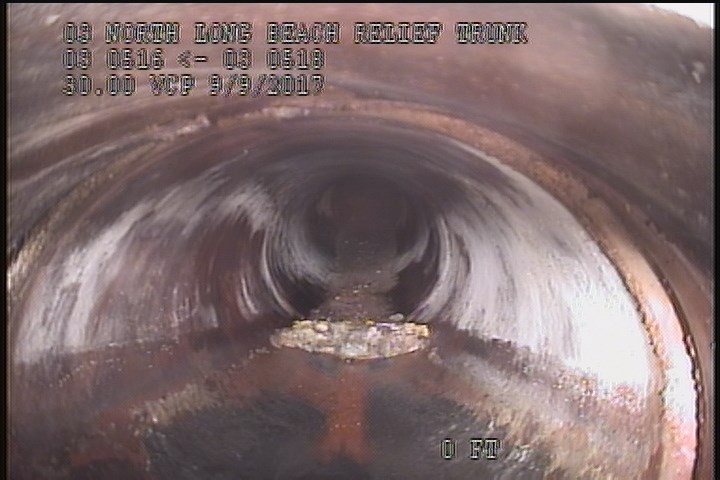

2 ft. - General Observation - 21" VCP

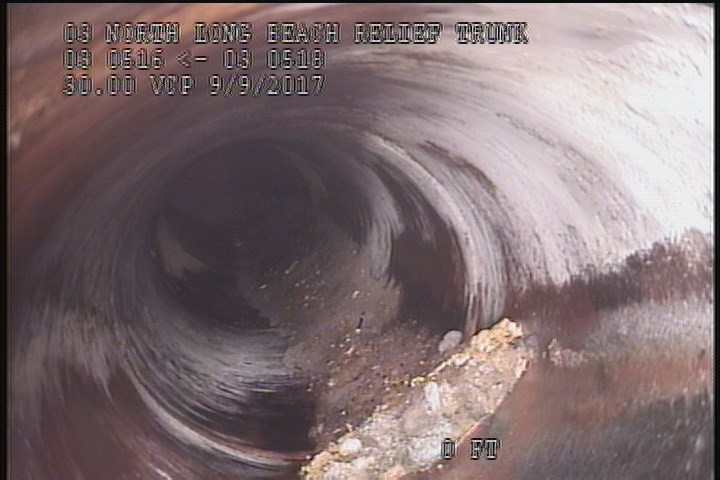

4 ft. - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

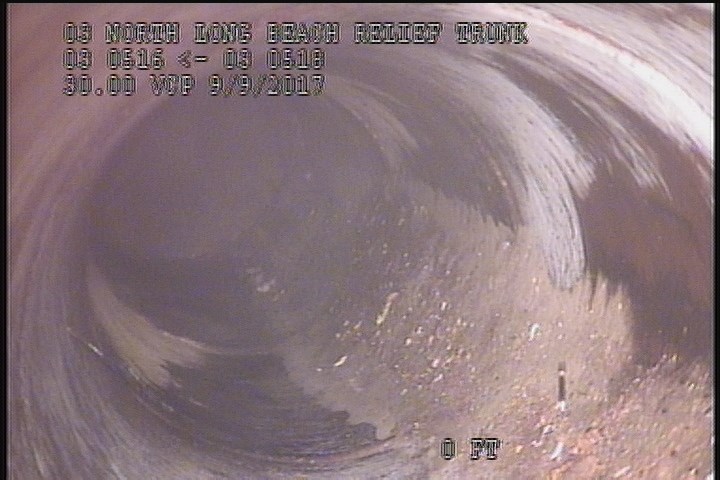

15 ft. - General Observation - 21" VCP

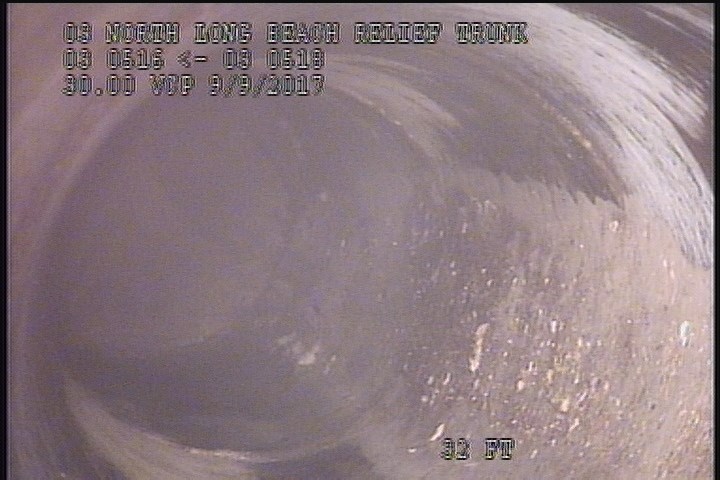

32 ft. - Upstream Manhole, Survey Ends - 8:10AM (ZOOM TO BULKHEAD)
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | NO FLOW BULKHEAD UPSTREAM |
| 32 | AMH | 8:10AM (ZOOM TO BULKHEAD) |
| 0 | AMH | 8:00AM |
| 4 | DSGV | — |
| 0 | MGO | ZOOM 30' |
| 0 | MWM | — |
| 15 | MGO | 21" VCP |
| 2 | MGO | 21" VCP |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-09T07:39:19-07:00
