Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 09:43 AM
- Date
- 07/06/2017
- W/O
- 640678
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01125
- PipeID
- P13168
- Time
- 2:43 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4635
- Sewer Name
- B JOINT OUTFALL B - UNIT 6H
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_640678_TV16072_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22 in.
- Upstream MH
- B 1127
- Downstream MH
- B 1128
- Dir. of Survey
- Upstream
- Length Surveyed
- 62.2 ft.
- Total Length
- 62.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 311B
- O&M Rating
- 16
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (2)

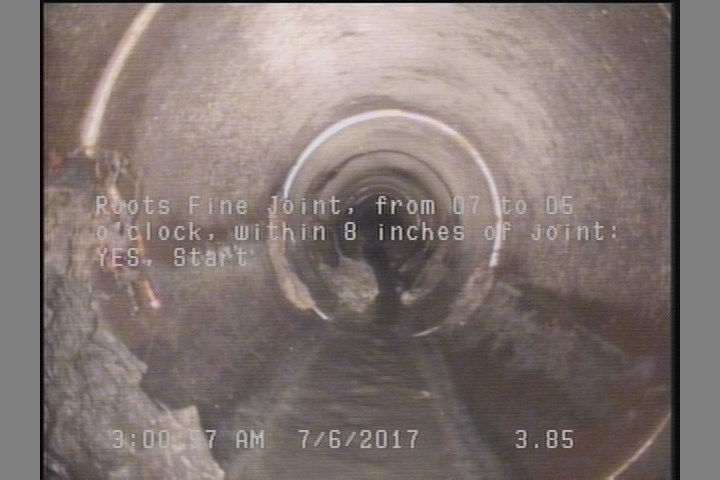

3.9 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

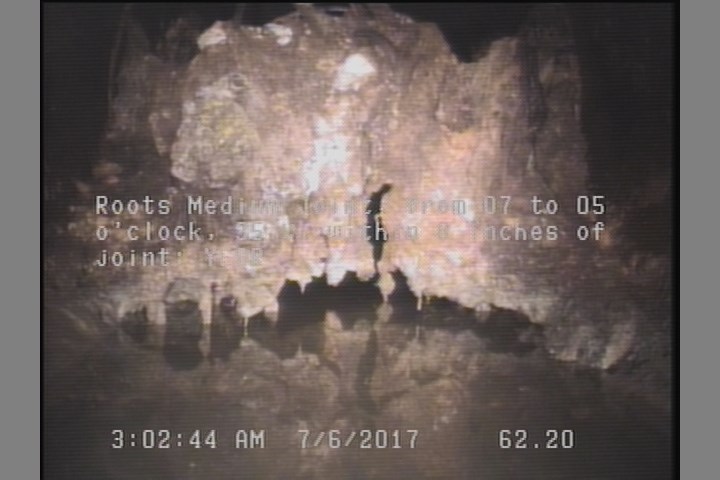

62.2 ft. - Roots Medium Joint, from 07 to 05 o'clock, 35 %, within 8 inches of joint: YESR
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 1127 |
| 3.9 | TF | — |
| 0 | MWL | — |
| 10.8 | TF | — |
| 0 | MWM | — |
| 3.9 | RFJ | — |
| 62.2 | RFJ | — |
| 0 | MGO | — |
| 62.2 | MSA | CAM BLKD BY ROOTS |
| 10.8 | RFL | — |
| 62.2 | RMJ | — |
Properties (4)
- additional_info
- SC345428
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-06T02:43:24-07:00
