Wastewater/Activity/PacpInspection/1.0Sep 6, 2017, 04:35 PM
- Date
- 09/06/2017
- W/O
- 0657949
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00203
- PipeID
- P01185
- Time
- 9:35 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7506
- Sewer Name
- 01 COMPTON CREEK EXTENSION TRUNK, SECTION 1
- City
- LOS ANGELES
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Maintenance Related
- Project
- 20170906SHO_COMPTON_CREEK_EXTENSION_TRUNK_SECTION_1
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 01 0119
- Downstream MH
- 01 0118
- Dir. of Survey
- Downstream
- Length Surveyed
- 309.4 ft.
- Total Length
- 309.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

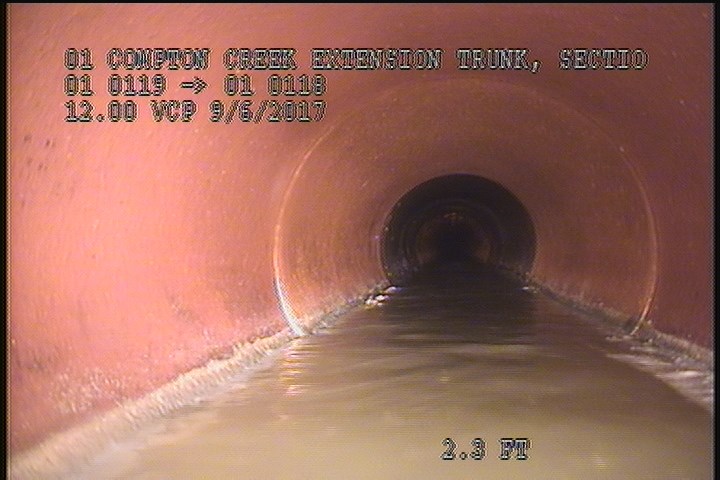

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 0938 |
| 2.3 | DAGS | — |
| 309.4 | AMH | 0950 |
| 0 | MGO | STUB CONNECTION @ 6 O CLOCK IN THE MH |
| 0 | MWL | — |
| 0 | MWM | — |
| 308.7 | DAGS | — |
Properties (5)
- additional_info
- GREASE INSPECTION ONLY
- custom_field_three
- GREASE INSPECTION ONLY
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-09-06T09:35:38-07:00
