Wastewater/Activity/PacpInspection/1.0Sep 6, 2017, 11:34 AM
Section#4_B 0919_B 0918__962017__G6817.mp4
- Date
- 09/06/2017
- W/O
- 0647702
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00922
- PipeID
- P20267
- Time
- 4:34 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6817
- Sewer Name
- B JOINT OUTFALL B - UNIT 1A REPLACEMENT
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170905MDM_JOINT_OUTFALL_B_UNIT_1A_REPLACEMENT
- Material
- RC-PVC T-LOCK LINED
- Shape
- Rectangular
- Height
- 0 in.
- Upstream MH
- B 0918
- Downstream MH
- B 0917
- Dir. of Survey
- Downstream
- Length Surveyed
- 980.9 ft.
- Total Length
- 980.9 ft.
- Structural Index
- 3
- Structural Quick
- 3g00
- Structural Rating
- 594
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 599
Observation photos (5)

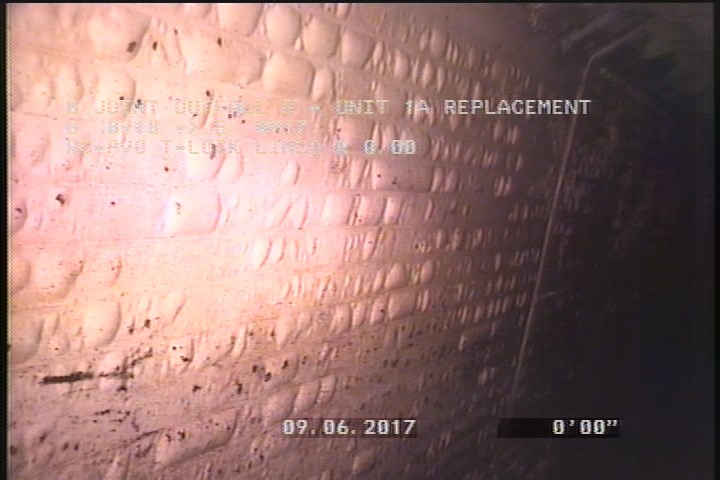

2 ft. - Lining Failure Blistered, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SMALL BLISTERS

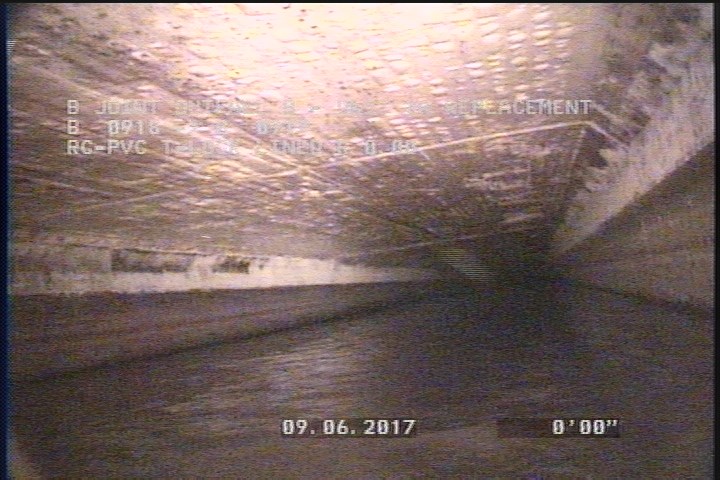

8 ft. - General Observation - RC-PVC-T-LOCK-LINER

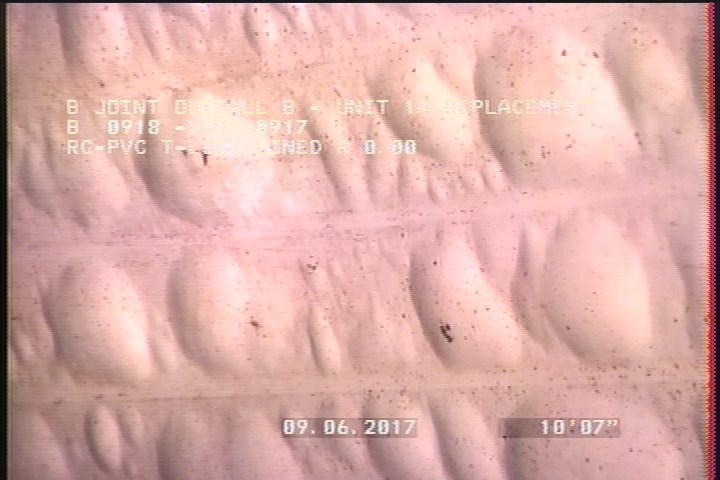

10.6 ft. - Lining Failure Blistered, from 10 to 02 o'clock, within 8 inches of joint: NO

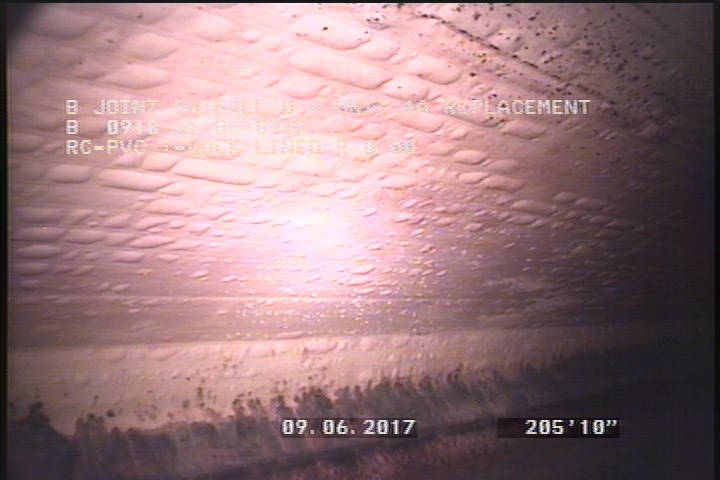

200.2 ft. - Lining Failure Blistered, from 10 to 02 o'clock, within 8 inches of joint: NO - SMALL

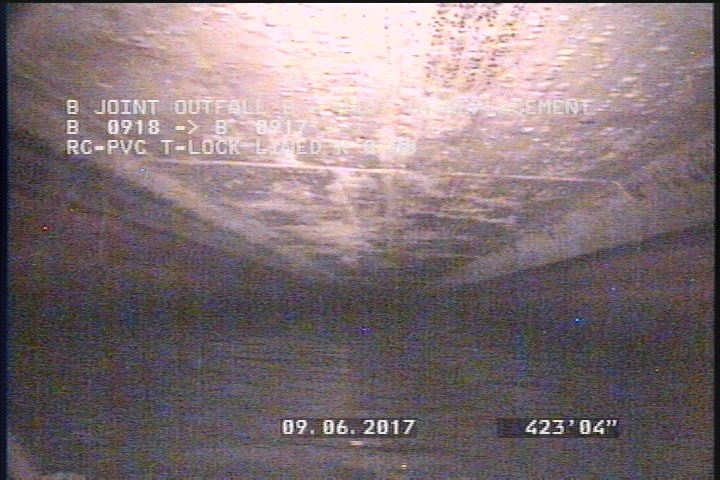

422.1 ft. - General Observation - RC-PVC-T-LOCK-LINER
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 8 | MGO | RC-PVC-T-LOCK-LINER |
| 10.6 | LFB | — |
| 2 | LFB | SMALL BLISTERS |
| 979.9 | LFB | — |
| 0 | MWL | — |
| 200.2 | LFB | SMALL |
| 980.9 | AMH | 6:20AM |
| 422.1 | MGO | RC-PVC-T-LOCK-LINER |
| 0 | AMH | 4:45AM |
Properties (2)
- customer
- LACSD
- datetime
- 2017-09-06T04:34:22-07:00
