Wastewater/Activity/PacpInspection/1.0Sep 6, 2017, 07:40 AM
Section#4_B 0919_B 0918__962017__G6817.mp4
- Date
- 09/06/2017
- W/O
- 0647702
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00922
- PipeID
- P20268
- Time
- 12:40 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6817
- Sewer Name
- B JOINT OUTFALL B - UNIT 1A REPLACEMENT
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170905MDM_JOINT_OUTFALL_B_UNIT_1A_REPLACEMENT
- Material
- RC-PVC T-LOCK LINED
- Shape
- Rectangular
- Height
- 0 in.
- Upstream MH
- B 0919
- Downstream MH
- B 0918
- Dir. of Survey
- Downstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

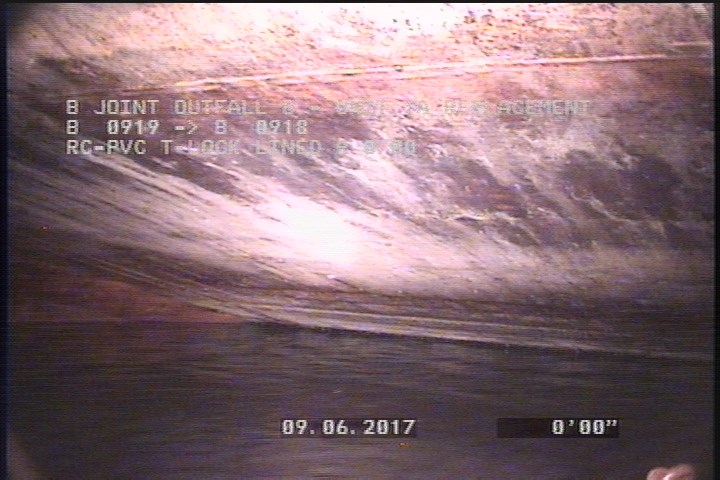

0 ft. - Water Mark, 90 %of cross sectional area

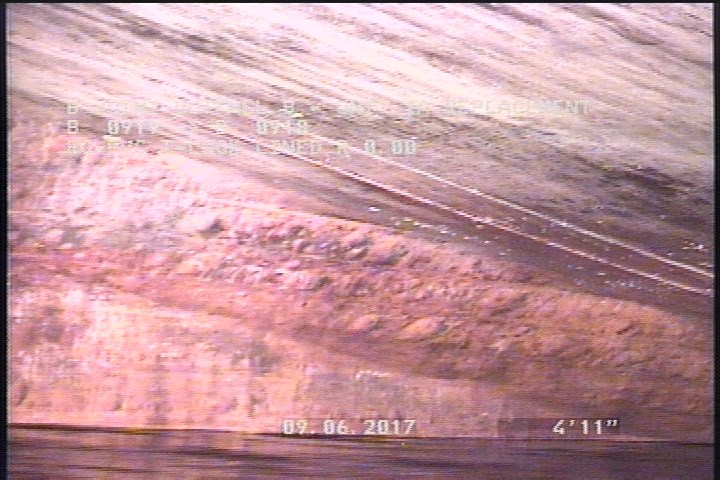

2 ft. - Lining Failure Blistered, from 10 to 11 o'clock, within 8 inches of joint: YES - POSSIBLE SMALL BLISTERS

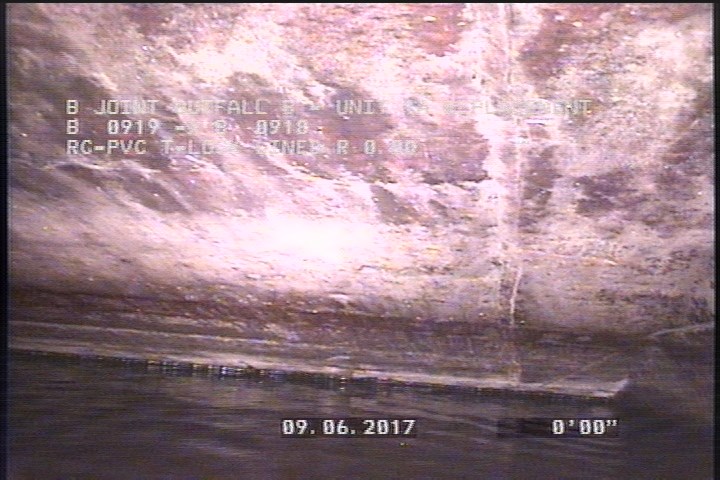

3 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 3 | MSA | DOWNLEG UPSTREAM SIPHON |
| 0 | AMH | 1:25AM |
| 0 | MWM | — |
| 2 | LFB | POSSIBLE SMALL BLISTERS |
| 0 | MWL | — |
Properties (4)
- additional_info
- DOWNLEG UPSTREAM SIPHON
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-09-06T00:40:43-07:00
