Wastewater/Activity/PacpInspection/1.0Sep 5, 2017, 08:45 AM
Section#1_B 0923_B 0922__952017__G6816.mp4
- Date
- 09/05/2017
- W/O
- 0647702
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00922
- PipeID
- P20272
- Time
- 1:45 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6816
- Sewer Name
- B JOINT OUTFALL B - UNIT 1A REPLACEMENT
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170905MDM_JOINT_OUTFALL_B_UNIT_1A_REPLACEMENT
- Material
- RC-PVC T-LOCK LINED
- Shape
- Rectangular
- Height
- 0 in.
- Upstream MH
- B 0923
- Downstream MH
- B 0922
- Dir. of Survey
- Downstream
- Length Surveyed
- 930.5 ft.
- Total Length
- 930.5 ft.
- Structural Index
- 3
- Structural Quick
- 3c00
- Structural Rating
- 537
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 542
Observation photos (7)

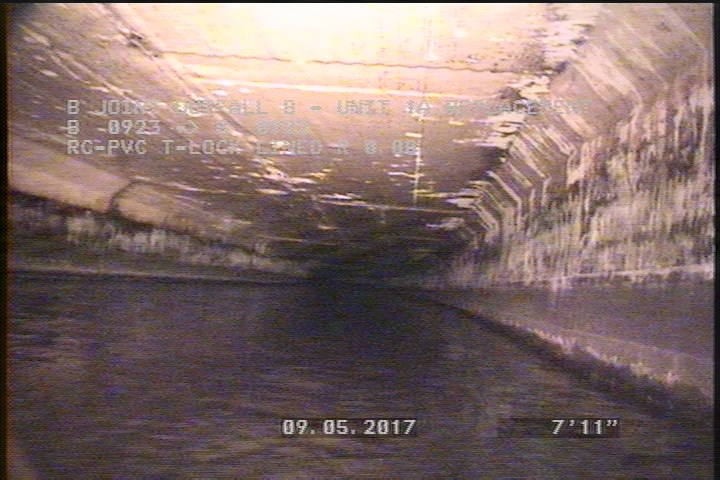

8 ft. - General Observation - RC-PVC-T-LOCK LINER

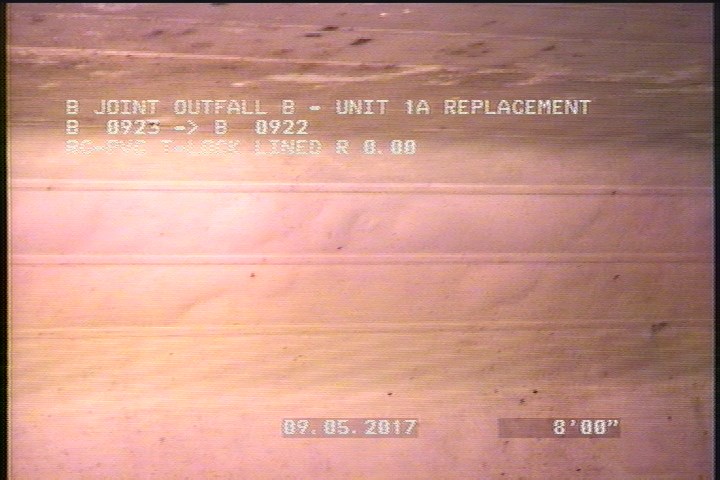

8 ft. - Lining Failure Blistered, from 10 to 12 o'clock, within 8 inches of joint: NO

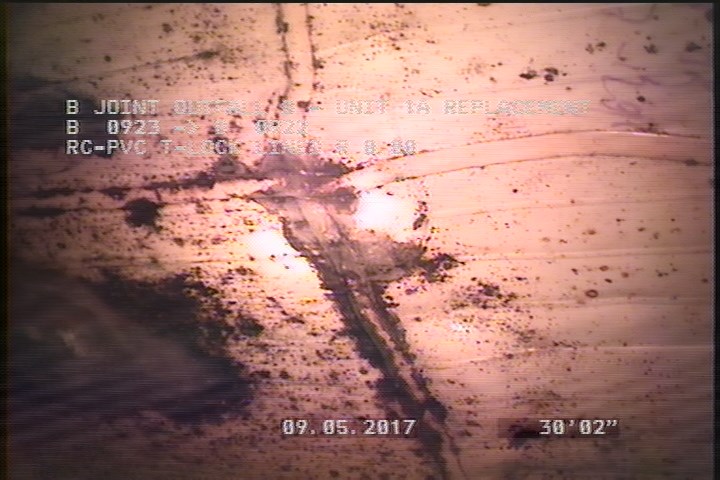

30.1 ft. - General Observation - T-LOCK LINER

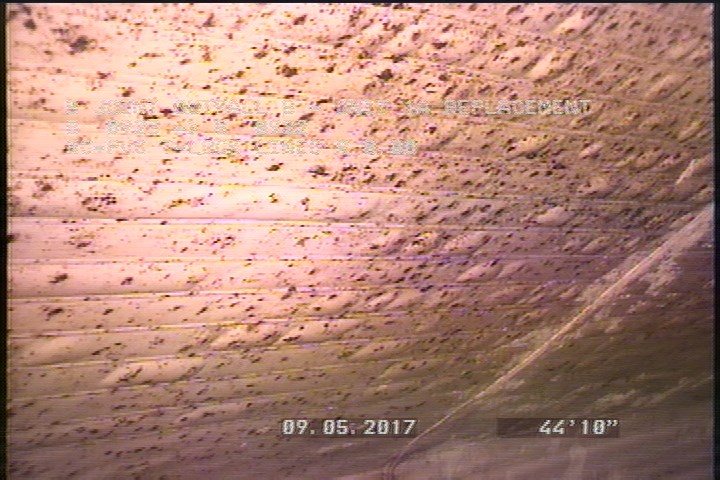

44.8 ft. - Lining Failure Blistered, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT BLISTERING

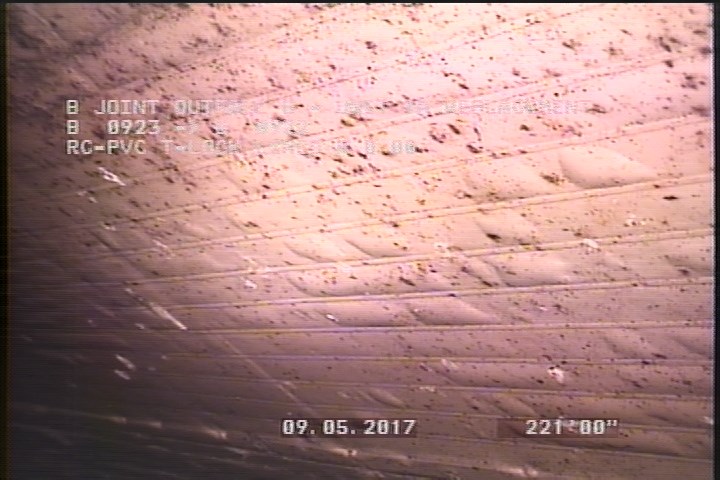

221 ft. - Lining Failure Blistered, from 10 to 02 o'clock, within 8 inches of joint: NO - SLIGHT

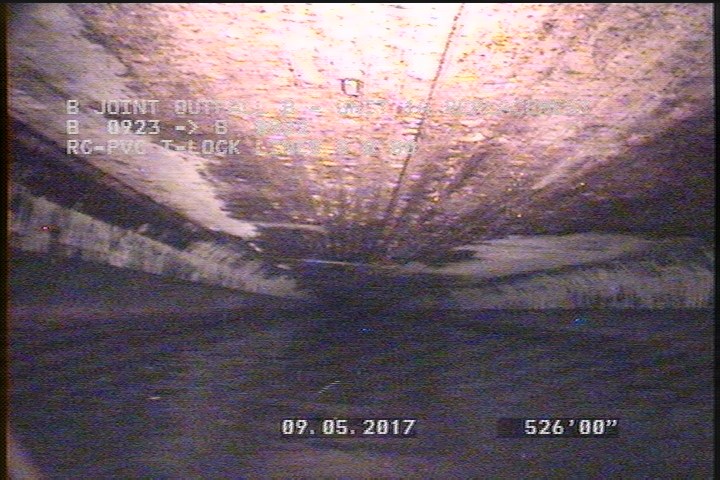

526 ft. - General Observation - RC-PVC-T-LOCK LINER

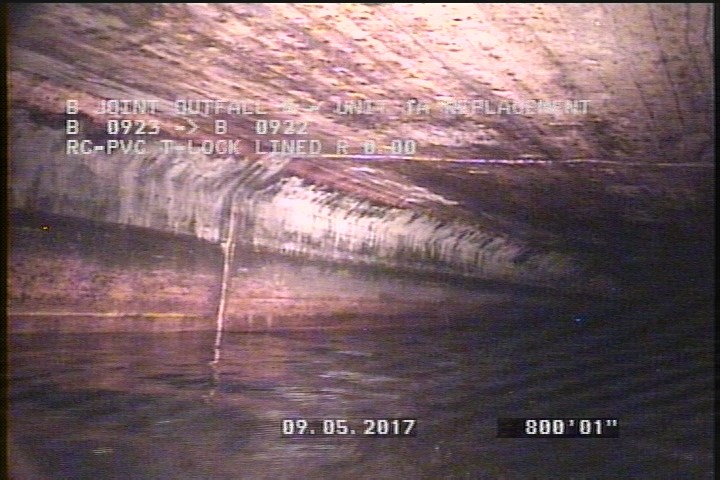

800 ft. - General Observation - RC-PVC-T-LOCK-LINER
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 44.8 | LFB | SLIGHT BLISTERING |
| 30.1 | MGO | T-LOCK LINER |
| 0 | MWL | — |
| 930.5 | AMH | 2:50AM |
| 930.1 | LFB | SLIGHT |
| 8 | MGO | RC-PVC-T-LOCK LINER |
| 0 | AMH | 1:55AM |
| 221 | LFB | SLIGHT |
| 526 | MGO | RC-PVC-T-LOCK LINER |
| 8 | LFB | — |
| 800 | MGO | RC-PVC-T-LOCK-LINER |
| 0 | MWM | — |
Properties (3)
- customer
- LACSD
- datetime
- 2017-09-05T01:45:36-07:00
- year_laid
- 20010927
