Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 1, 2017, 10:08 AM

  • 08 0465_08 0464_912017_035406.mp4

Date
09/01/2017
W/O
0660368
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00026
PipeID
P00521
Time
3:08 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
H0633
Sewer Name
08 216TH STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Maintenance Related
Project
20170901MDM_216TH_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
08 0465
Downstream MH
08 0464
Dir. of Survey
Downstream
Length Surveyed
143.9 ft.
Total Length
143.9 ft.
Structural Index
5
Structural Quick
5200
Structural Rating
10
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
5
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 08 0465 to 08 0464
MH: 08 0465MH: 08 0464downstream0 ft. MWM - Water Mark, 70 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:55AM2 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MISSING,BROKEN REBAR8 ft. MGO - General Observation - 36" RCP-CTL10.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - Active27.2 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES - BROKEN ,MISSING REBAR107.7 ft. MGP - General Photograph - 36" RCP-CTL143.5 ft. MGP - General Photograph - LINED PIPE DOWNSTREAM143.5 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - BROKEN,MISSING REBAR143.5 ft. MGP - General Photograph - INSERTION -PIT143.9 ft. MSA - Survey Abandoned - INSERTION - PIT

Observation photos (6)

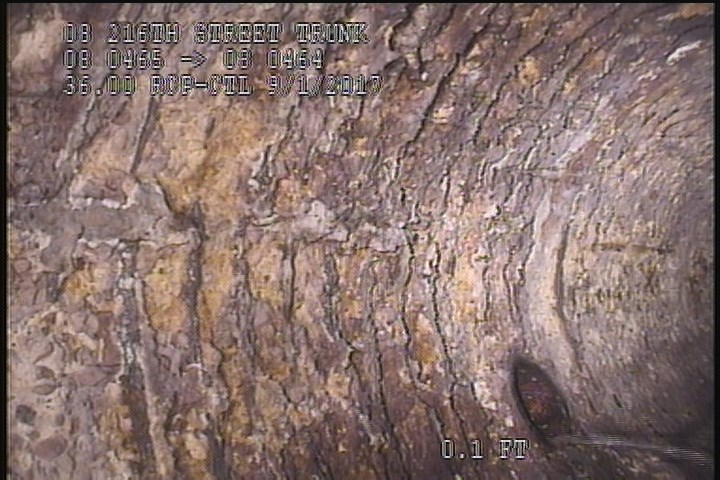

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MISSING,BROKEN REBAR

    2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MISSING,BROKEN REBAR

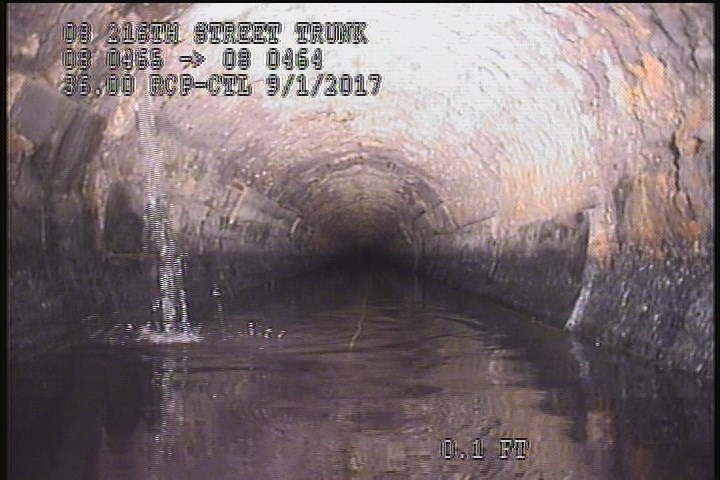

  • General Observation - 36" RCP-CTL

    8 ft. - General Observation - 36" RCP-CTL

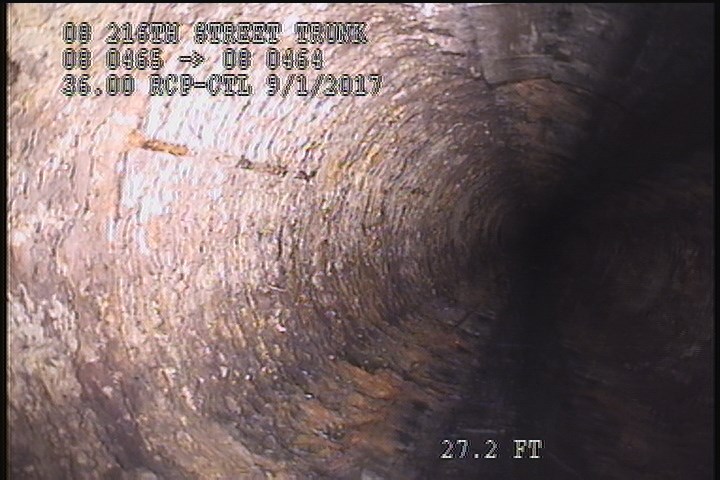

  • Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES - BROKEN ,MISSING REBAR

    27.2 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES - BROKEN ,MISSING REBAR

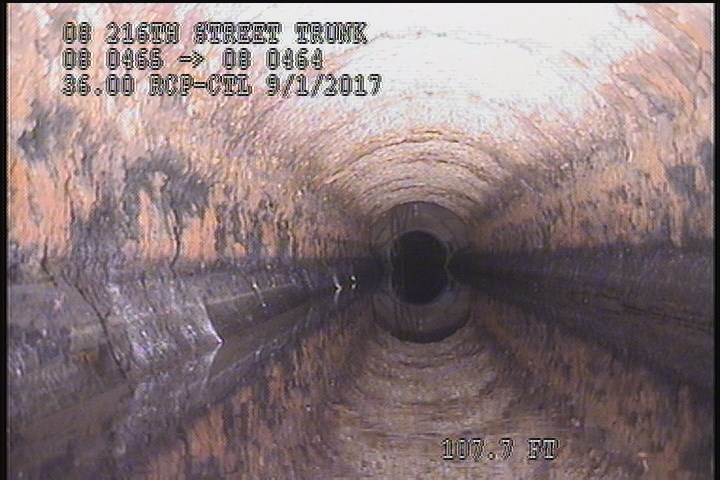

  • General Photograph - 36" RCP-CTL

    107.7 ft. - General Photograph - 36" RCP-CTL

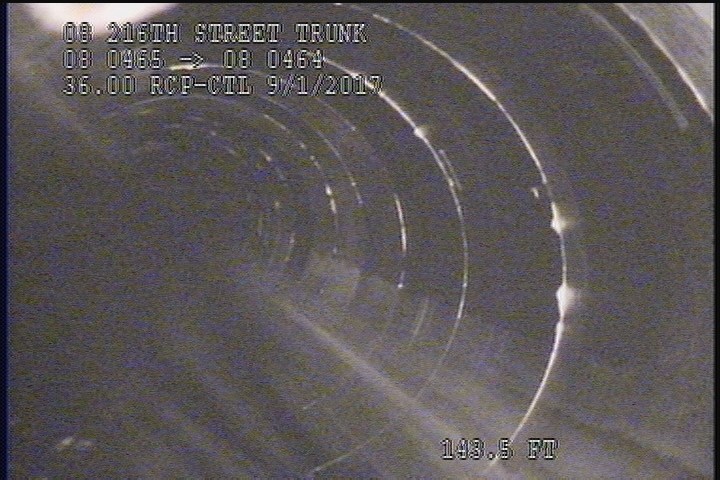

  • General Photograph - LINED PIPE DOWNSTREAM

    143.5 ft. - General Photograph - LINED PIPE DOWNSTREAM

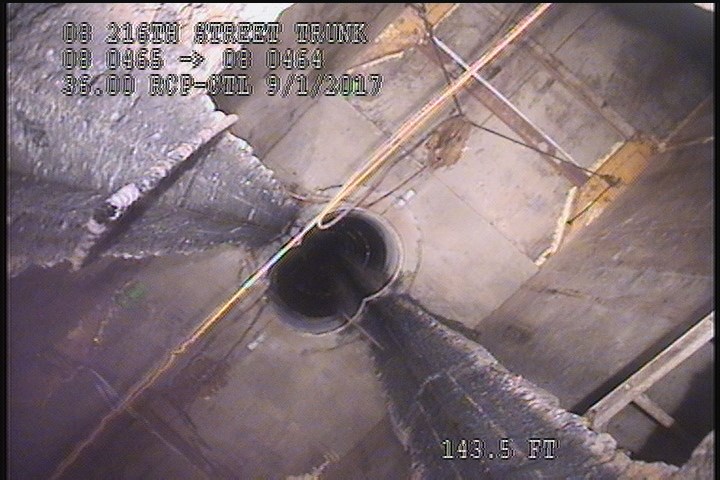

  • General Photograph - INSERTION -PIT

    143.5 ft. - General Photograph - INSERTION -PIT

All inspections of P00521Work order 0660368

Observations (13)

DistanceCodeObservation
143.5MGPLINED PIPE DOWNSTREAM
143.9MSAINSERTION - PIT
143.5SRCBROKEN,MISSING REBAR
10.6TFActive
0MWM—
8MGO36" RCP-CTL
27.2SRCBROKEN ,MISSING REBAR
143.5MGPINSERTION -PIT
2SRCMISSING,BROKEN REBAR
0MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
107.7MGP36" RCP-CTL
0AMH3:55AM

Properties (4)

custom_field_three
MISSING BROKEN REBAR
custom_field_two
1
customer
LACSD
datetime
2017-09-01T03:08:55-07:00
