Wastewater/Activity/PacpInspection/1.0Jul 20, 2017, 09:38 AM
22 1060_22 1059 _20072017_024911.mp4
- Date
- 07/20/2017
- W/O
- 646332
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00812
- PipeID
- P17431
- Time
- 2:38 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4664
- Sewer Name
- 22 IRWINDALE TRUNK, SECTS 2,3,4,&5
- City
- IRWINDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_646332_TV22043_JUL2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 1060
- Downstream MH
- 22 1059
- Dir. of Survey
- Downstream
- Length Surveyed
- 302 ft.
- Total Length
- 302 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 138
Observation photos (4)
4.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
4.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
4.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

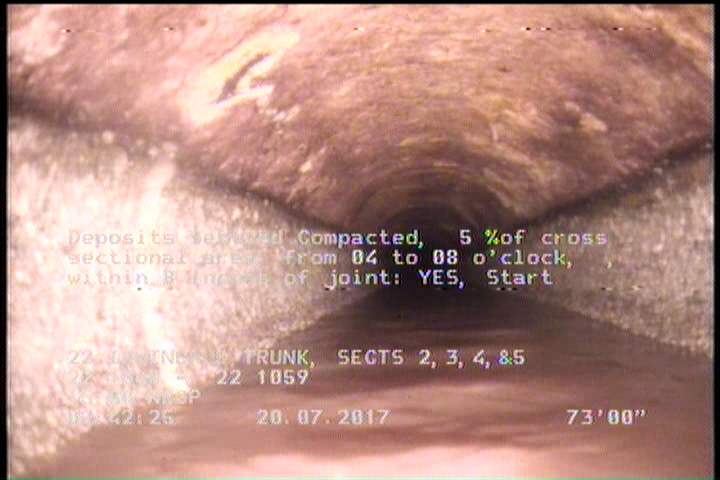

72.4 ft. - Deposits Settled Compacted, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 4.2 | SAV | — |
| 4.2 | DAGS | — |
| 112.6 | TFC | — |
| 302 | SAV | — |
| 164.9 | TFC | — |
| 216 | TF | — |
| 0 | AMH | 22 1060 |
| 302 | AMH | 22 1059 |
| 0 | MWL | — |
| 0 | MWM | — |
| 72.4 | DSC | — |
| 302 | DAGS | — |
| 60.4 | TFC | — |
| 302 | SSS | — |
| 4.2 | SSS | — |
| 90.7 | DSC | — |
| 266 | TFC | — |
Properties (4)
- additional_info
- SC345602
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-20T02:38:59-07:00
