Wastewater/Activity/PacpInspection/1.0Jul 20, 2017, 06:17 AM
22 1066_22 1065 _19072017_234721.mp4
- Date
- 07/19/2017
- W/O
- 646332
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00812
- PipeID
- P17437
- Time
- 11:17 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4664
- Sewer Name
- 22 IRWINDALE TRUNK, SECTS 2,3,4,&5
- City
- IRWINDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_646332_TV22043_JUL2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1066
- Downstream MH
- 22 1065
- Dir. of Survey
- Downstream
- Length Surveyed
- 303.6 ft.
- Total Length
- 303.6 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

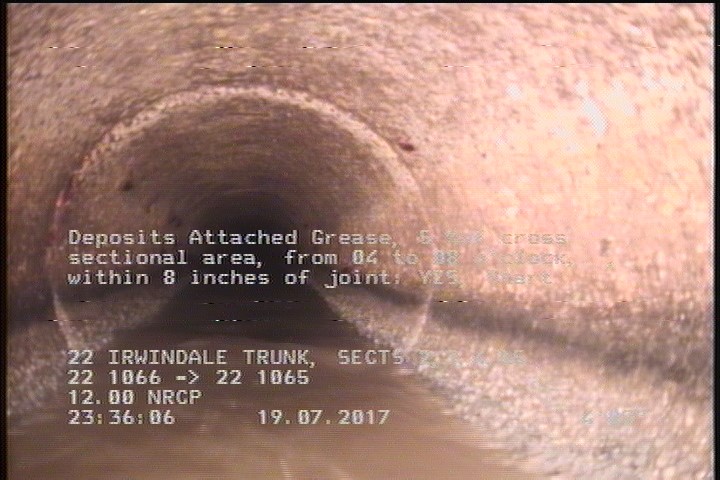

4.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

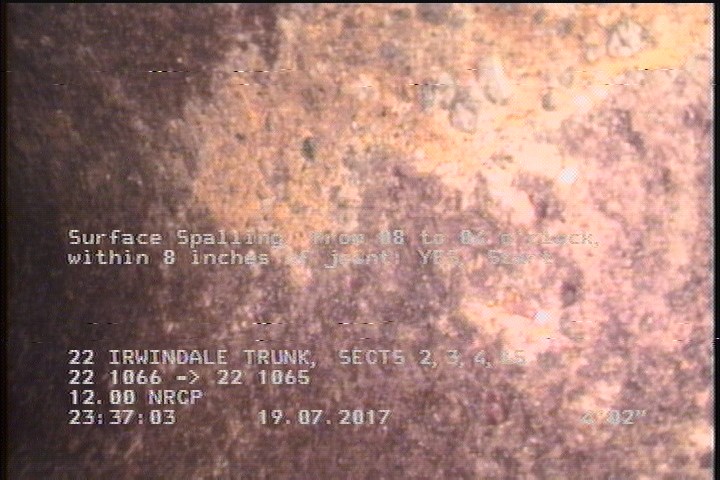

4.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

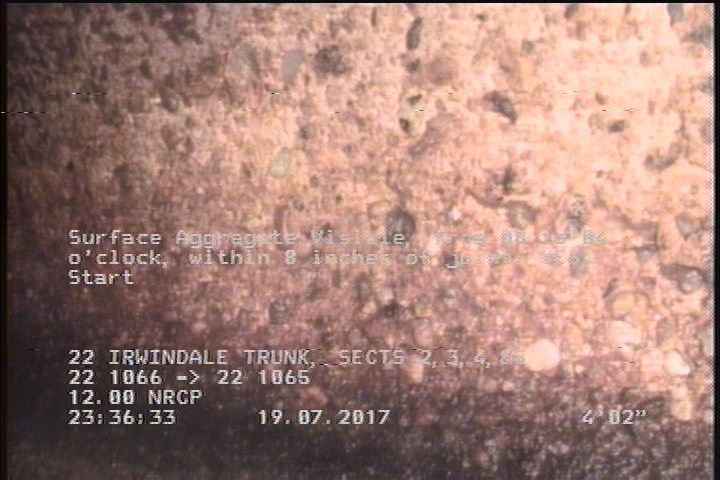

4.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 303.6 | AMH | 22 1065 |
| 4.2 | DAGS | — |
| 0 | MWL | — |
| 224 | TB | — |
| 4.2 | SSS | — |
| 0 | AMH | 22 1066 |
| 303.6 | SAV | — |
| 4.2 | SAV | — |
| 0 | MWM | — |
| 303.5 | MGO | CONNECTION AT 9 OC |
| 303.5 | SSS | — |
| 303.5 | DAGS | — |
Properties (4)
- additional_info
- SC345602
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-19T23:17:14-07:00
