Wastewater/Activity/PacpInspection/1.0Jul 3, 2017, 08:49 AM
H 0731_H 0730 _07032017_015514.mp4
- Date
- 07/03/2017
- W/O
- 640621
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11140
- Time
- 1:49 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4598
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_640621_TV15078_JUN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0731
- Downstream MH
- H 0730
- Dir. of Survey
- Downstream
- Length Surveyed
- 707.9 ft.
- Total Length
- 707.9 ft.
- Structural Index
- 2
- Structural Quick
- 2[00
- Structural Rating
- 282
- O&M Index
- 2
- O&M Quick
- 2[00
- O&M Rating
- 282
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 564
Observation photos (2)

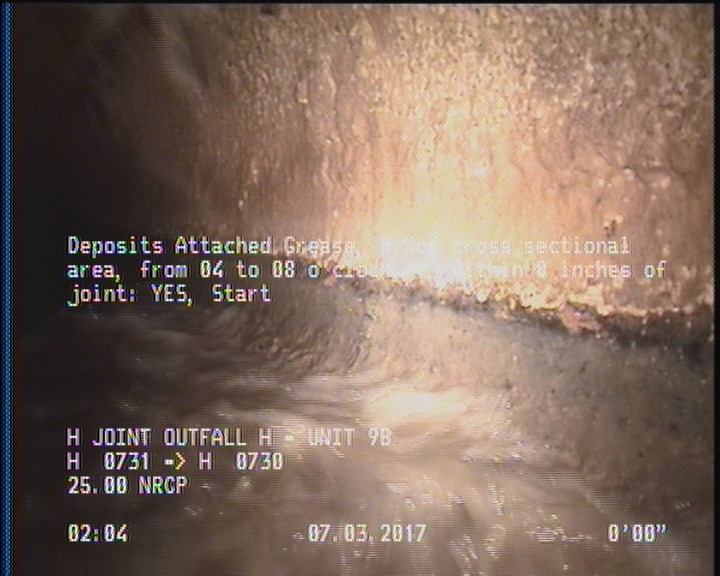

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

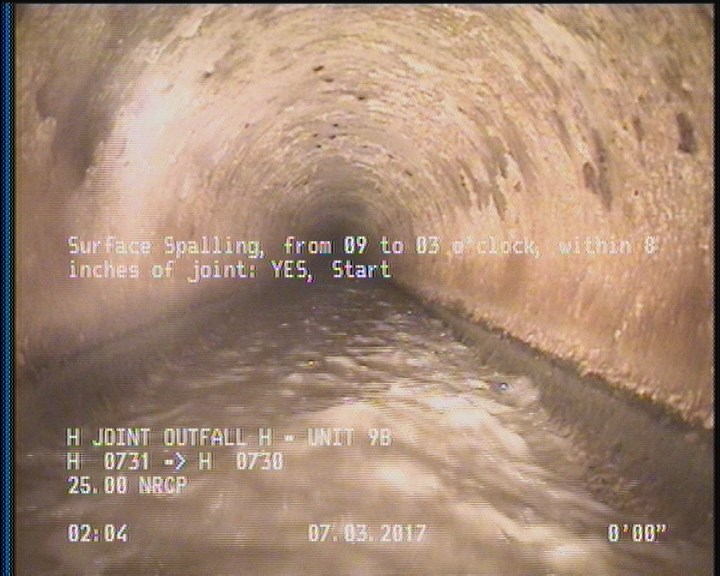

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 707.9 | DAGS | — |
| 707.9 | AMH | H 0730, RUN LIST STATES 725'. |
| 707.9 | SSS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 2 | SSS | — |
| 0 | AMH | H 0731 |
Properties (5)
- additional_info
- SC345427
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-03T01:49:31-07:00
- sewer_category
- Gravity
