Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 10:33 AM
H 0721_H 0720 _07062017_033402.mp4
- Date
- 07/06/2017
- W/O
- 640621
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11130
- Time
- 3:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4599
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- INDUSTRY
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_640621_TV15078_JUN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0721
- Downstream MH
- H 0720
- Dir. of Survey
- Downstream
- Length Surveyed
- 548.9 ft.
- Total Length
- 548.9 ft.
- Structural Index
- 3
- Structural Quick
- 3O2O
- Structural Rating
- 405
- O&M Index
- 2
- O&M Quick
- 2`00
- O&M Rating
- 326
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 731
Observation photos (3)

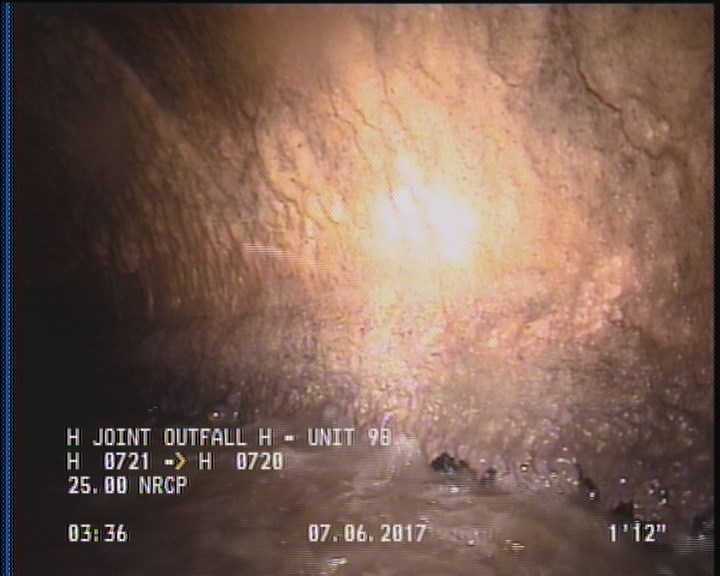

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

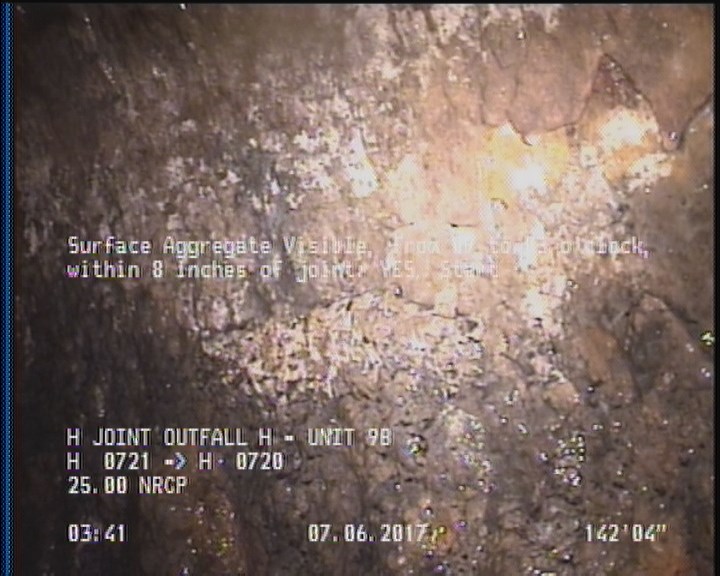

142.3 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

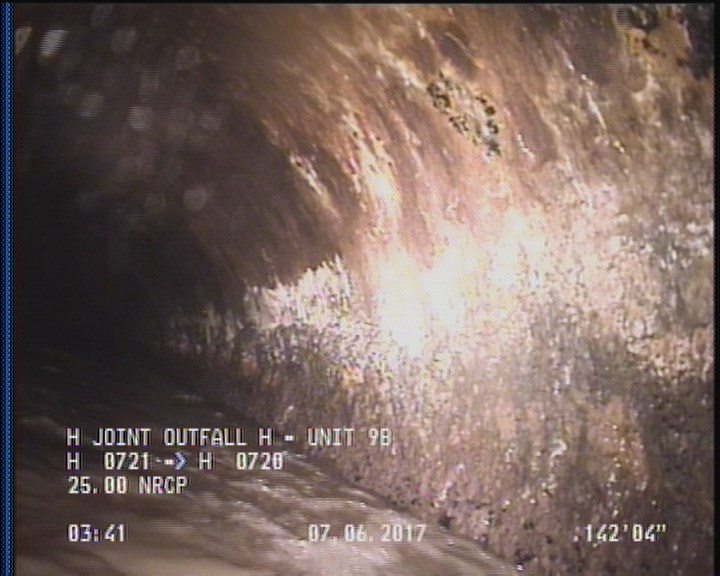

142.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 547 | DSZ | — |
| 0 | AMH | H 0721 |
| 2 | DAGS | — |
| 142.3 | SAV | — |
| 547 | DAGS | — |
| 547 | SAV | — |
| 548.9 | AMH | H 0720 |
| 277.1 | DSZ | DEBRIS |
| 547 | SSS | — |
| 0 | MWM | — |
| 142.3 | SSS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345431
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-06T03:33:39-07:00
- sewer_category
- Gravity
