Wastewater/Activity/PacpInspection/1.0Jul 3, 2017, 10:29 AM
H 0727_H 0726 _07032017_033010.mp4
- Date
- 07/03/2017
- W/O
- 640621
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11136
- Time
- 3:29 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4598
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_640621_TV15078_JUN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 28 in.
- Width
- 28 in.
- Upstream MH
- H 0727
- Downstream MH
- H 0726
- Dir. of Survey
- Downstream
- Length Surveyed
- 821.8 ft.
- Total Length
- 821.8 ft.
- Structural Index
- 2
- Structural Quick
- 2`00
- Structural Rating
- 328
- O&M Index
- 2
- O&M Quick
- 312h
- O&M Rating
- 415
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 743
Observation photos (3)

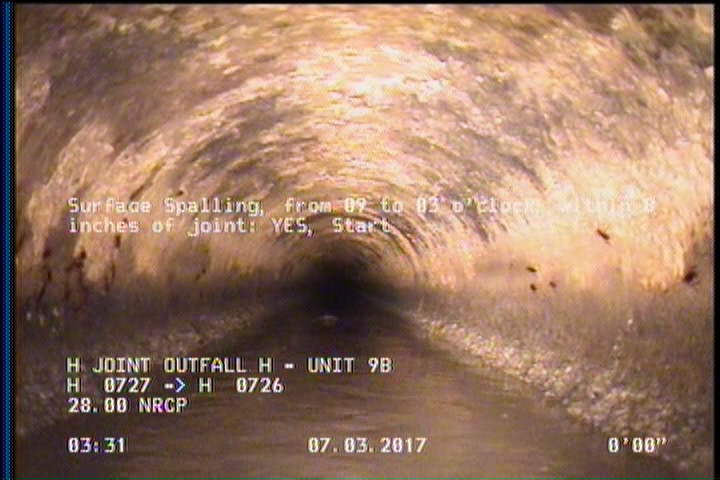

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

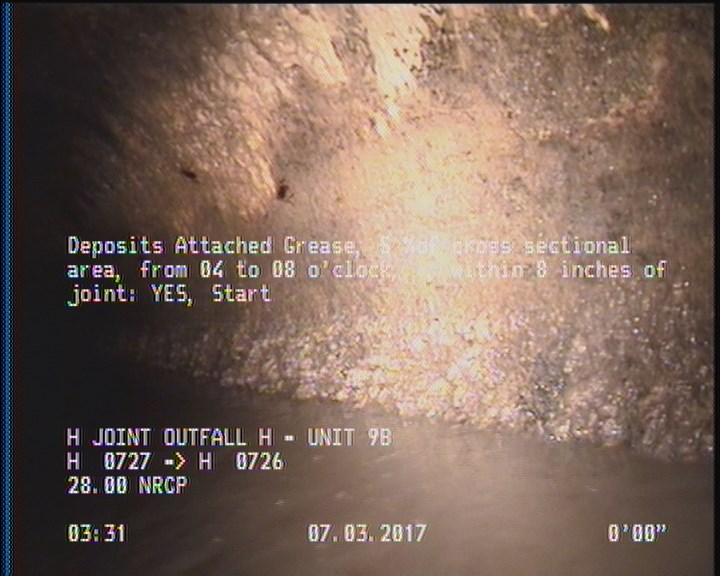

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

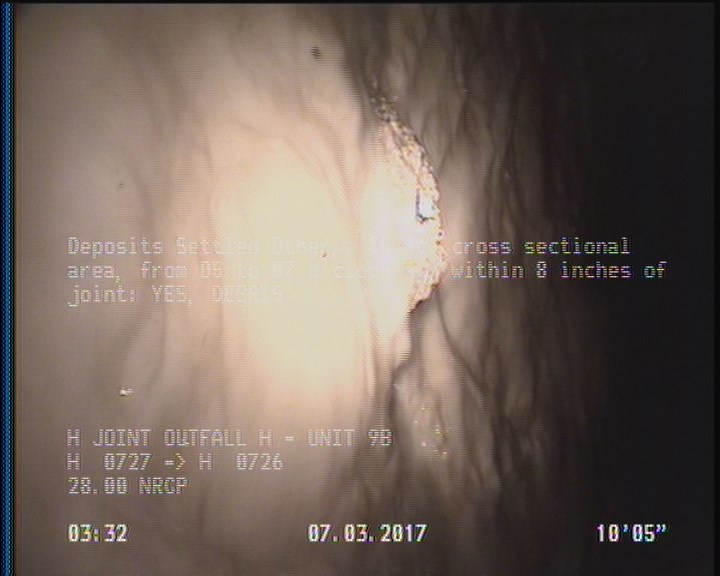

10.3 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 821.8 | AMH | H 0726 |
| 10.3 | DSZ | DEBRIS |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | H 0727 |
| 2 | SSS | — |
| 2 | DAGS | — |
| 821.8 | SSS | — |
| 821.8 | DAGS | — |
| 821.8 | DSZ | — |
| 611.1 | DSZ | DEBRIS |
Properties (5)
- additional_info
- SC345427
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-03T03:29:47-07:00
- sewer_category
- Gravity
