Wastewater/Activity/PacpInspection/1.0Aug 1, 2017, 10:04 AM
H 0336_H 0335 _20170801_043903.mp4
- Date
- 08/01/2017
- W/O
- 646405
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00175
- PipeID
- P10786
- Time
- 3:04 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4674
- Sewer Name
- H JOINT OUTFALL H - UNIT 4
- City
- PICO RIVERA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19A
- Purpose
- Routine Assessment
- Project
- WO_646405_TV02200_JUL2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Width
- 63 in.
- Upstream MH
- H 0336
- Downstream MH
- H 0335
- Dir. of Survey
- Downstream
- Length Surveyed
- 576.5 ft.
- Total Length
- 576.5 ft.
- Structural Index
- 3
- Structural Quick
- 3V00
- Structural Rating
- 342
- O&M Index
- 2
- O&M Quick
- 412V
- O&M Rating
- 232
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 574
Observation photos (2)

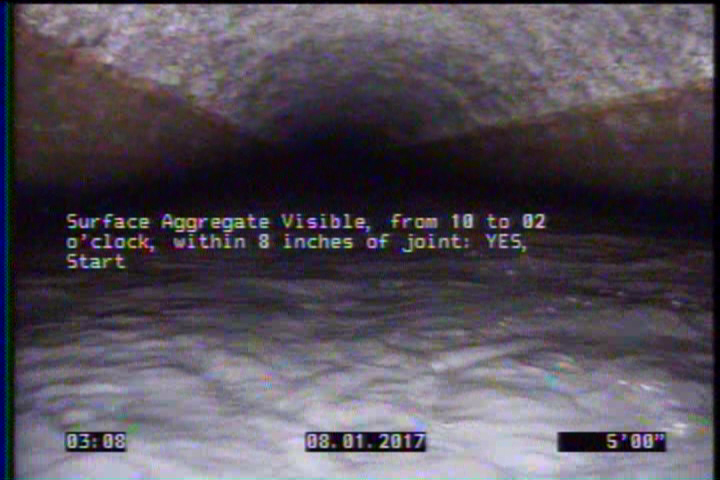

5 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

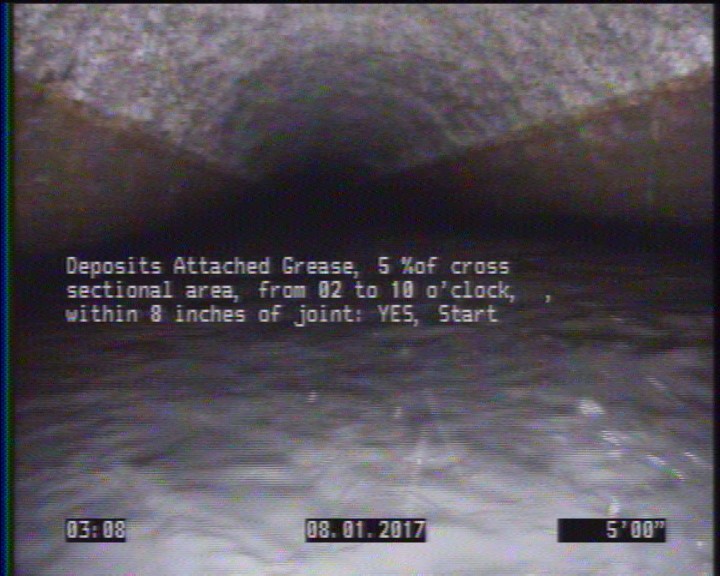

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 0336 |
| 5 | MGO | MAG COATING |
| 5 | SAV | — |
| 576.5 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 576.5 | AMH | H 0335 |
| 5 | DAGS | — |
| 576.5 | DAGS | — |
Properties (5)
- additional_info
- SC345612
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-01T03:04:25-07:00
- sewer_category
- Gravity
