Wastewater/Activity/PacpInspection/1.0Jul 20, 2017, 07:53 AM
02 1026_02 1025_20170802_095629.mp4
- Date
- 07/20/2017
- W/O
- 646392
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00280
- PipeID
- P03600
- Time
- 12:53 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3991
- Sewer Name
- 02 MONTEBELLO CITY TRUNK
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_646392_TV02077_JUL2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1026
- Downstream MH
- 02 1025
- Dir. of Survey
- Downstream
- Length Surveyed
- 493.8 ft.
- Total Length
- 493.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412S
- O&M Rating
- 200
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 200
Observation photos (1)

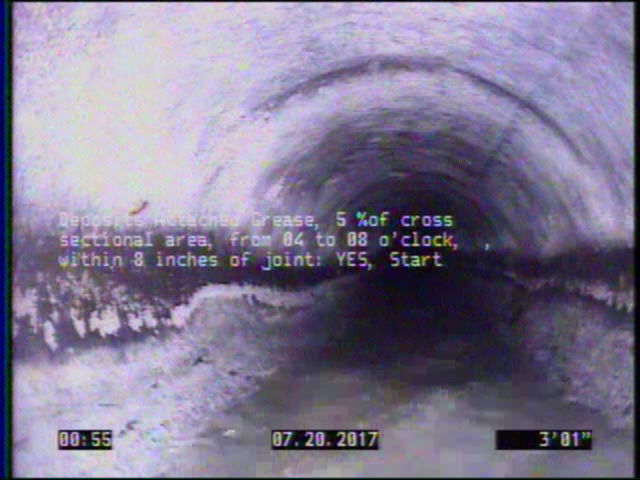

3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 1026 |
| 493.8 | AMH | 02 1025 |
| 0 | MWM | — |
| 492.8 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 3.1 | DAGS | — |
| 492.8 | DAGS | — |
| 0 | MWL | — |
Properties (4)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-20T00:53:42-07:00
- sewer_category
- Gravity
