Wastewater/Activity/PacpInspection/1.0Aug 2, 2017, 04:50 AM
J 0014_J 0012 _20170802_001432.mp4
- Date
- 08/01/2017
- W/O
- 646290
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00060
- PipeID
- P11597
- Time
- 9:50 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4675
- Sewer Name
- J JOINT OUTFALL J - UNIT 2A
- City
- HARBOR CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_646290_TV08100_JUL2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- J 0014
- Downstream MH
- J 0012
- Dir. of Survey
- Downstream
- Length Surveyed
- 476.4 ft.
- Total Length
- 476.4 ft.
- Structural Index
- 4
- Structural Quick
- 5Q3K
- Structural Rating
- 632
- O&M Index
- 2
- O&M Quick
- 412R
- O&M Rating
- 190
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 822
Observation photos (3)

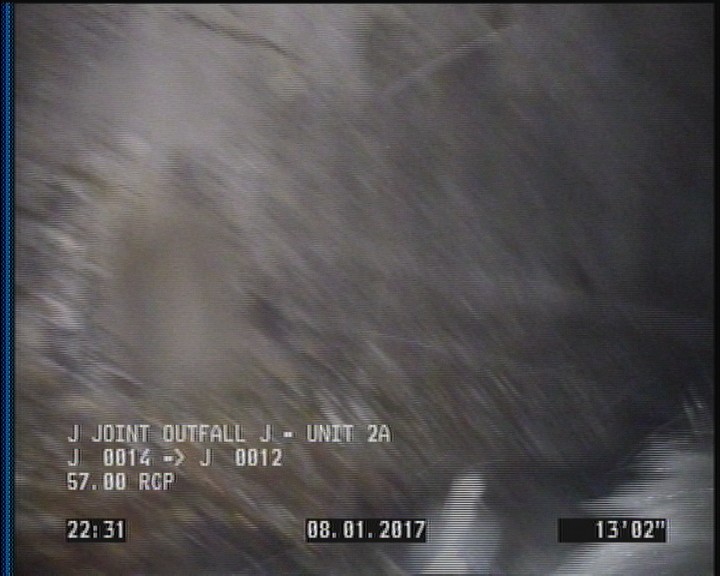

13.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

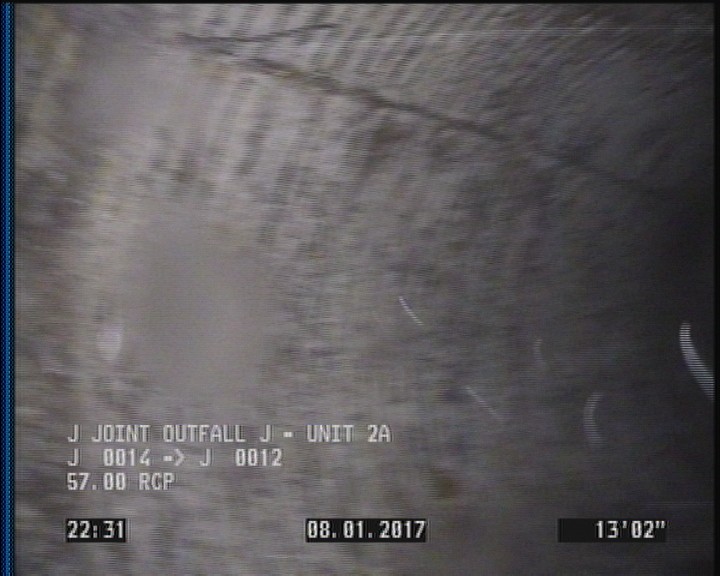

20.4 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

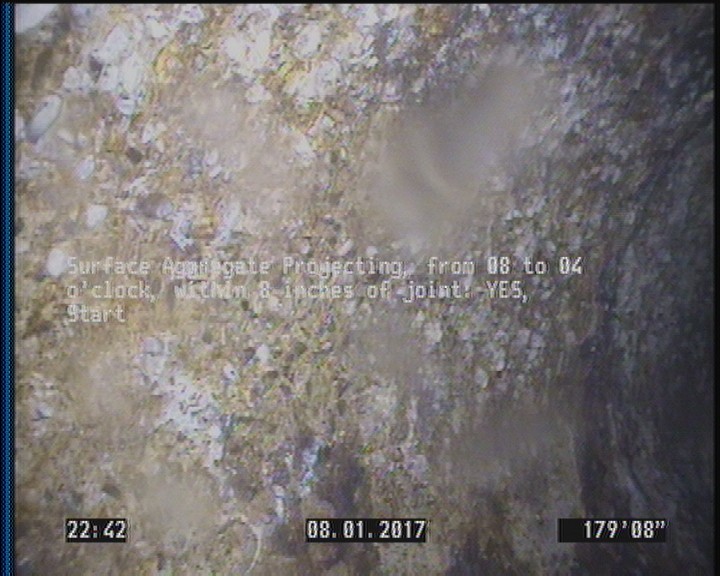

179.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 13.2 | DAGS | — |
| 476.4 | MGO | CONNECTION AT 9 OC |
| 0 | AMH | J 0014 |
| 20.4 | SRV | — |
| 476.4 | AMH | J 0012 |
| 13.2 | MGO | RESUMING VIDEO |
| 476.4 | SRV | — |
| 179.7 | SAP | — |
| 0.1 | MWM | — |
| 476.4 | SAP | — |
| 476.4 | DAGS | — |
| 476.4 | MGO | CONNECTION AT 3 OC |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345613
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-01T21:50:43-07:00
- sewer_category
- Gravity
