Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2017, 05:25 AM

  • J 0005_J 0004 _20170803_001132.mp4

Date
08/02/2017
W/O
646290
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00060
PipeID
P11593
Time
10:25 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4676
Sewer Name
J JOINT OUTFALL J - UNIT 2A
City
HARBOR CITY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
WO_646290_TV08100_JUL2017
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Width
57 in.
Upstream MH
J 0005
Downstream MH
J 0004
Dir. of Survey
Downstream
Length Surveyed
631.1 ft.
Total Length
631.1 ft.
Structural Index
3
Structural Quick
3X2X
Structural Rating
625
O&M Index
2
O&M Quick
412X
O&M Rating
254
Overall Index
2
Overall Quick
—
Overall Rating
879
Pipe schematic from manhole J 0005 to J 0004
MH: J 0005MH: J 0004downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - J 00050 ft. MWL - Water Level, 50 %of cross sectional area7.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start7.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start7.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start567.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 10"631.1 ft. AMH - Downstream Manhole, Survey Ends - J 0004631.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish631.1 ft. MGO - General Observation - CAPPED CONNECTION 3 OC631.1 ft. MGO - General Observation - CAPPED CONNECTION AT 9 OC631.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish631.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (3)

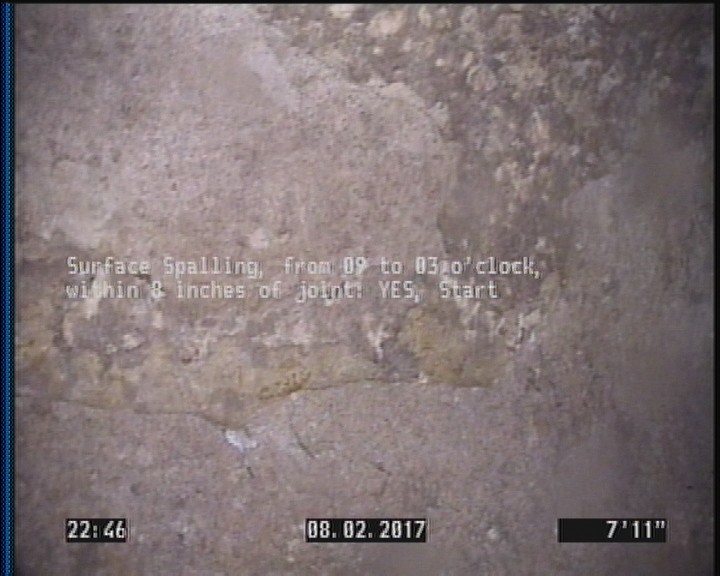

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

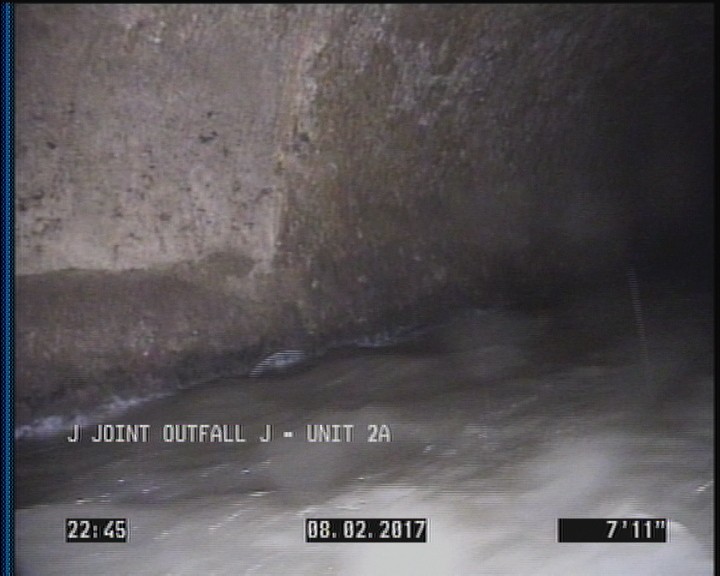

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

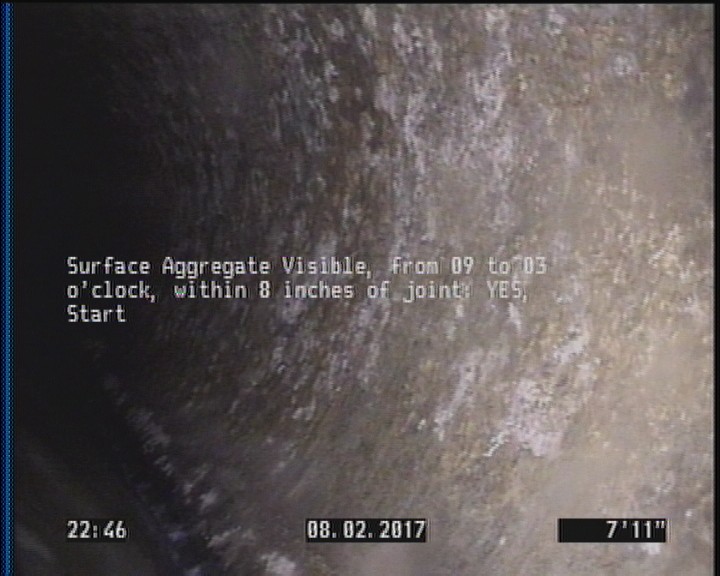

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P11593Work order 646290

Observations (13)

DistanceCodeObservation
631.1AMHJ 0004
0MWM—
631.1SAV—
0AMHJ 0005
567.9TFA—
631.1MGOCAPPED CONNECTION 3 OC
631.1MGOCAPPED CONNECTION AT 9 OC
631.1SSS—
7.9SSS—
7.9DAGS—
7.9SAV—
631.1DAGS—
0MWL—

Properties (5)

additional_info
SC345614
custom_field_two
3
customer
LACSD
datetime
2017-08-02T22:25:52-07:00
sewer_category
Gravity
