Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2017, 07:02 AM

  • H 0342_H 0341_20170801_054359.mp4

Date
08/01/2017
W/O
646405
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00175
PipeID
P20454
Time
12:02 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4674
Sewer Name
H JOINT OUTFALL H - UNIT 4
City
PICO RIVERA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
WO_646405_TV02200_JUL2017
Sewer Type
Siphon
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Width
48 in.
Upstream MH
H 0342
Downstream MH
H 0341
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole H 0342 to H 0341
MH: H 0342MH: H 0341downstream0 ft. MGO - General Observation - NORTH BARREL0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - Reversal Inspection0 ft. AMH - Upstream Manhole, Survey Begins - H 0.3422 ft. MSA - Survey Abandoned - SIPHON DOWNLEG2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

Observation photos (2)

  • Survey Abandoned - SIPHON DOWNLEG

    2 ft. - Survey Abandoned - SIPHON DOWNLEG

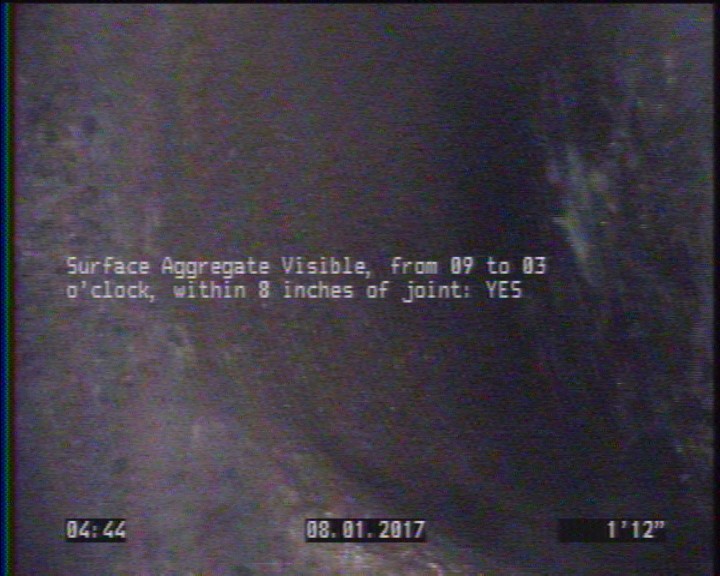

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P20454Work order 646405

Observations (7)

DistanceCodeObservation
0MGONORTH BARREL
2MSASIPHON DOWNLEG
0MWL—
0MWM—
2SAV—
0MGO—
0AMHH 0.342

Properties (4)

additional_info
SC345612
custom_field_two
3
customer
LACSD
datetime
2017-08-01T00:02:02-07:00
