Wastewater/Activity/PacpInspection/1.0Aug 1, 2017, 05:58 AM
H 0353A_H 0340 _20170801_001329.mp4
- Date
- 07/31/2017
- W/O
- 646405
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00175
- PipeID
- P10791
- Time
- 10:58 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4674
- Sewer Name
- H JOINT OUTFALL H - UNIT 4
- City
- PICO RIVERA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19A
- Purpose
- Routine Assessment
- Project
- WO_646405_TV02200_JUL2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Width
- 63 in.
- Upstream MH
- H 0353A
- Downstream MH
- H 0340
- Dir. of Survey
- Downstream
- Length Surveyed
- 85.5 ft.
- Total Length
- 85.5 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 48
- O&M Index
- 2
- O&M Quick
- 412B
- O&M Rating
- 36
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 84
Observation photos (2)
5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

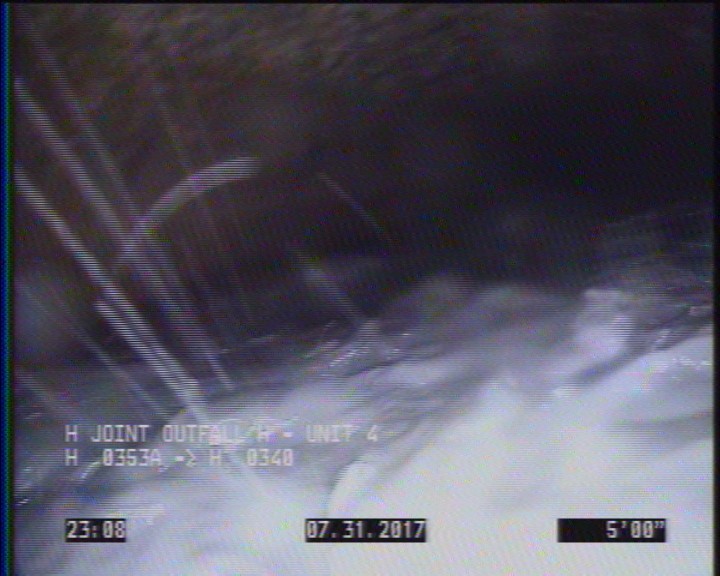

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 5 | SAV | — |
| 85.5 | AMH | H 0340 |
| 85.5 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 5 | DAGS | — |
| 85.5 | DAGS | — |
| 0 | AMH | H 0353A |
Properties (4)
- additional_info
- SC345612
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-31T22:58:04-07:00
