Wastewater/Activity/PacpInspection/1.0Jun 22, 2017, 09:51 AM
J 0002_J 0001 _20170803_041520.mp4
- Date
- 06/22/2017
- W/O
- 646290
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00060
- PipeID
- P11589
- Time
- 2:51 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4676
- Sewer Name
- J JOINT OUTFALL J - UNIT 2A
- City
- HARBOR CITY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_646290_TV08100_JUL2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- J 0002
- Downstream MH
- J 0001
- Dir. of Survey
- Downstream
- Length Surveyed
- 375.2 ft.
- Total Length
- 375.2 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 365
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 373
Observation photos (3)

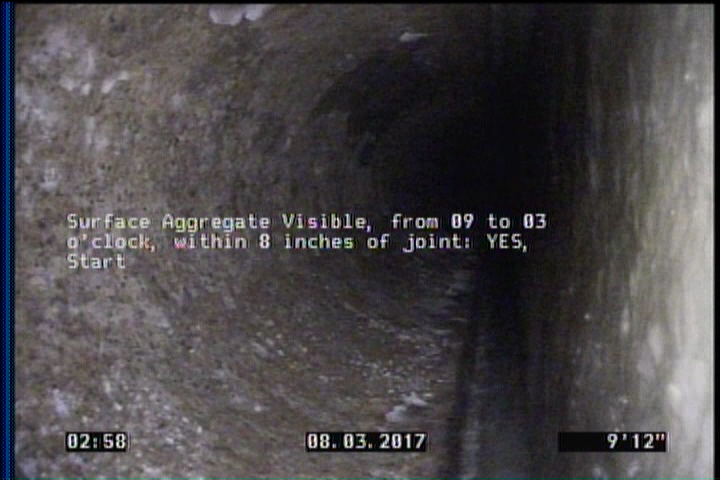

10 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

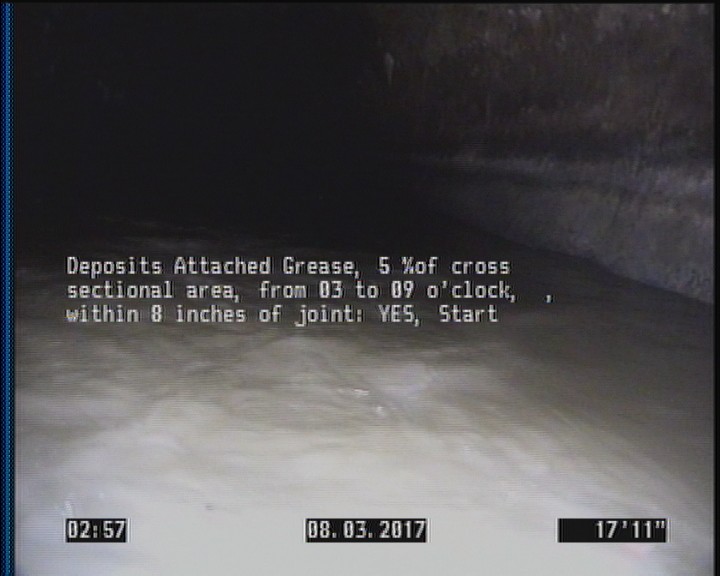

10 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

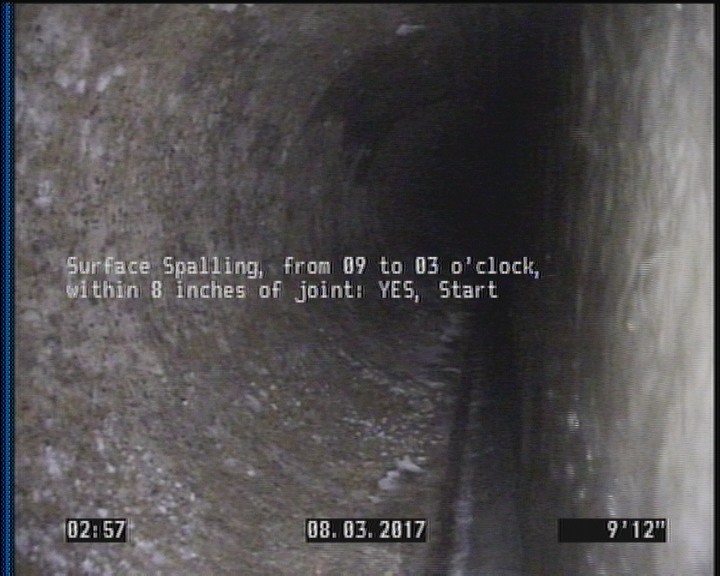

10 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 10 | SAV | — |
| 375.2 | AMH | J 0001 |
| 375.2 | SSS | — |
| 10 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 375.2 | DAGS | — |
| 0 | AMH | J 0002 |
| 375.2 | SAV | — |
| 10 | SSS | — |
Properties (4)
- additional_info
- SC345614
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-22T02:51:37-07:00
