Wastewater/Activity/PacpInspection/1.0Aug 7, 2017, 09:31 AM
32 0069_32 0068 _07082017_023131.mp4
- Date
- 08/07/2017
- W/O
- 646253
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00886
- PipeID
- P19833
- Time
- 2:31 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4770
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_646253_TV32047_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0069
- Downstream MH
- 32 0068
- Dir. of Survey
- Downstream
- Length Surveyed
- 193.1 ft.
- Total Length
- 193.1 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (5)

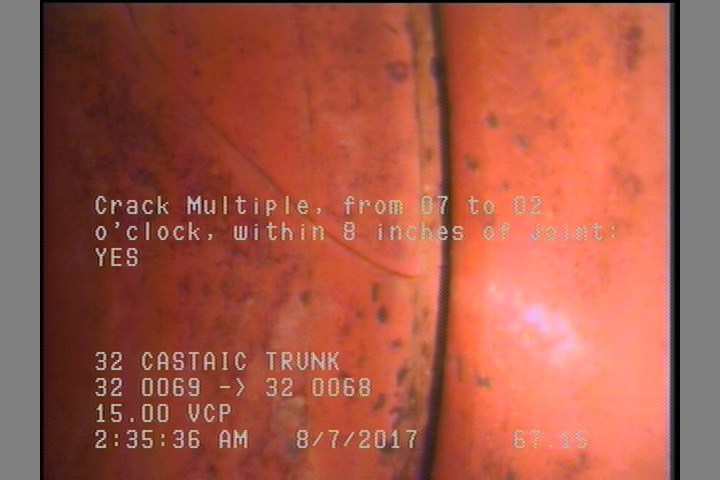

67.2 ft. - Crack Multiple, from 07 to 02 o'clock, within 8 inches of joint: YES

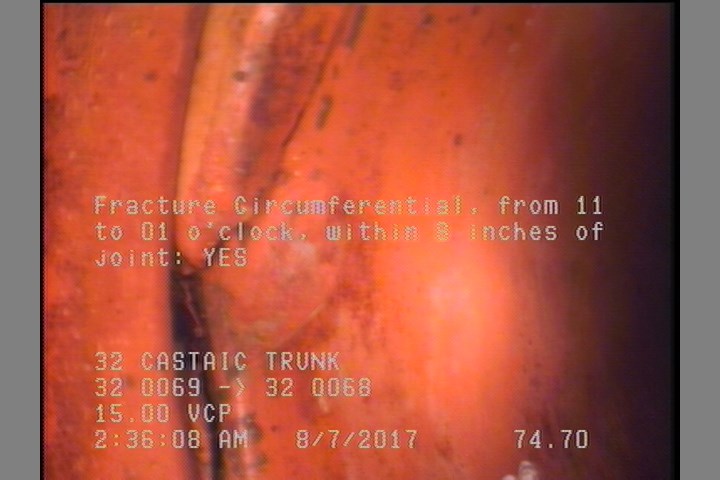

74.7 ft. - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

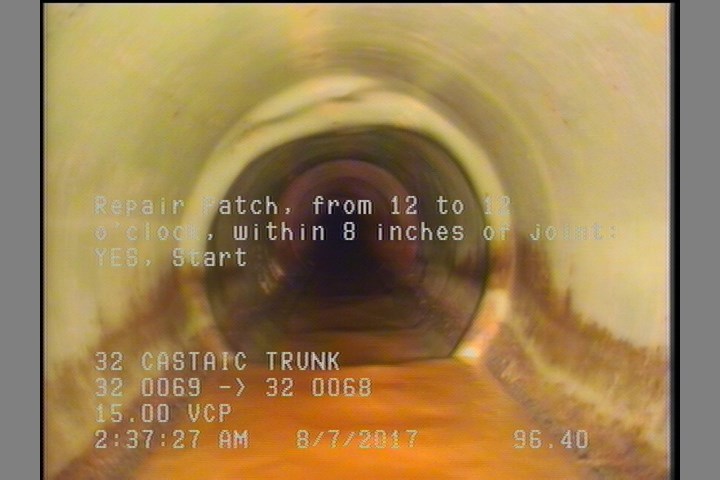

96.4 ft. - Repair Patch, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

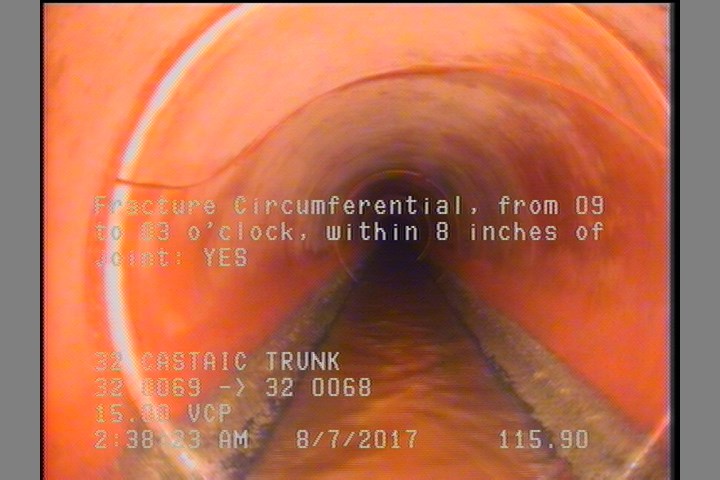

115.9 ft. - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES

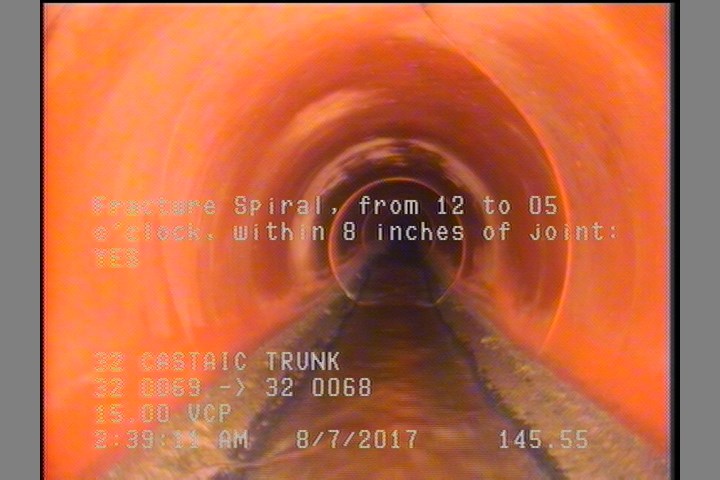

145.6 ft. - Fracture Spiral, from 12 to 05 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 74.7 | FC | — |
| 115.9 | FC | — |
| 102.7 | RPP | — |
| 96.4 | RPP | — |
| 193.1 | AMH | 32 0068 |
| 67.2 | CM | — |
| 0 | AMH | 32 0069 |
| 145.6 | FS | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345530
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-07T02:31:11-07:00
- year_laid
- 27282
