Wastewater/Activity/PacpInspection/1.0Jul 19, 2017, 05:17 AM
05 1484_05 2341 _31072017_151627.mp4
- Date
- 07/18/2017
- W/O
- 635631
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00438
- PipeID
- P06710
- Time
- 10:17 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3990-SC345555
- Sewer Name
- 05 EL NIDO TRUNK
- City
- TORRANCE CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_635631_TV05253_JUN2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 05 1484
- Downstream MH
- 05 2341
- Dir. of Survey
- Downstream
- Length Surveyed
- 335.1 ft.
- Total Length
- 335.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 138
Observation photos (2)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

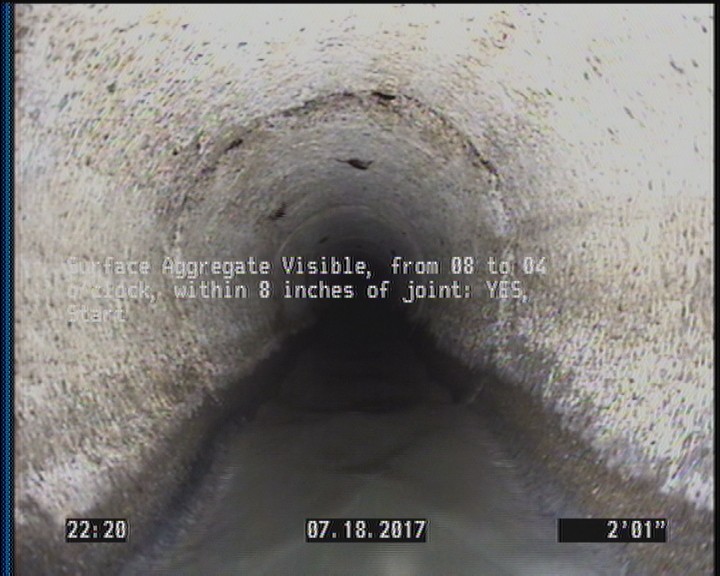

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 333.7 | SAV | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 83 | TB | — |
| 200.8 | TFC | — |
| 2 | MGO | Magnesium hydroxide coating start |
| 280.3 | TB | — |
| 247.6 | TB | — |
| 333.7 | DAGS | — |
| 0 | MWM | — |
| 186.9 | TB | — |
| 335.1 | AMH | 05 2341 |
| 0 | AMH | 05 1484 |
| 189.8 | TB | — |
| 2 | SAV | — |
| 128.1 | TB | — |
| 333.7 | MGO | Magnesium hydroxide coating finish |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-18T22:17:35-07:00
