Wastewater/Activity/PacpInspection/1.0Jul 17, 2017, 09:05 AM
05 1458_05 1457 _27072017_153515.mp4
- Date
- 07/17/2017
- W/O
- 635631
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00438
- PipeID
- P06680
- Time
- 2:05 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3988-SC345553
- Sewer Name
- 05 EL NIDO TRUNK
- City
- TORRANCE CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_635631_TV05253_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 1458
- Downstream MH
- 05 1457
- Dir. of Survey
- Downstream
- Length Surveyed
- 339.3 ft.
- Total Length
- 339.3 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 201
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 138
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 339
Observation photos (2)
2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

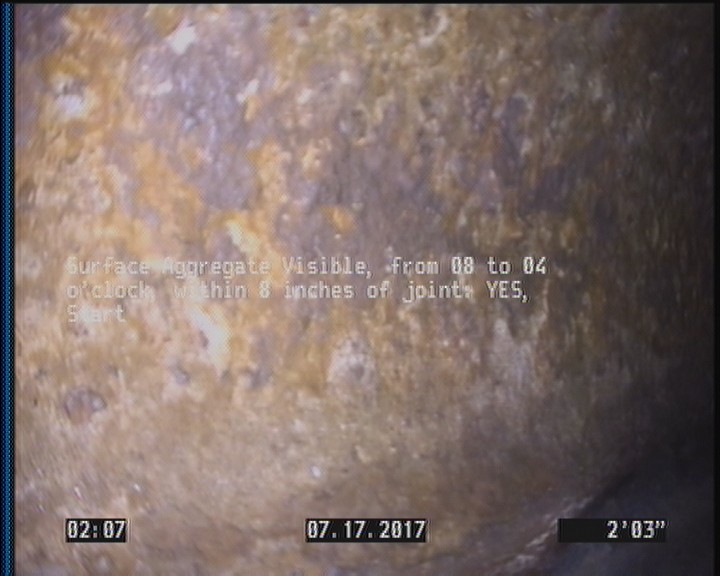

2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 339.3 | AMH | 05 1457 |
| 2.3 | DAGS | — |
| 336.3 | SAV | — |
| 2.3 | SAV | — |
| 336.3 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 05 1458 |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-17T02:05:17-07:00
