Wastewater/Activity/PacpInspection/1.0Jul 19, 2017, 07:15 AM
02 1546_02 1545B_19072017_002030.mp4
- Date
- 07/19/2017
- W/O
- 646606
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00230
- PipeID
- P03977
- Time
- 12:15 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4653
- Sewer Name
- 02 ARIZONA AVENUE TRUNK, SECTION 1
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_646606_TV02006_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1545B
- Downstream MH
- 02 1546
- Dir. of Survey
- Upstream
- Length Surveyed
- 12.6 ft.
- Total Length
- 12.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3121
- O&M Rating
- 9
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (6)

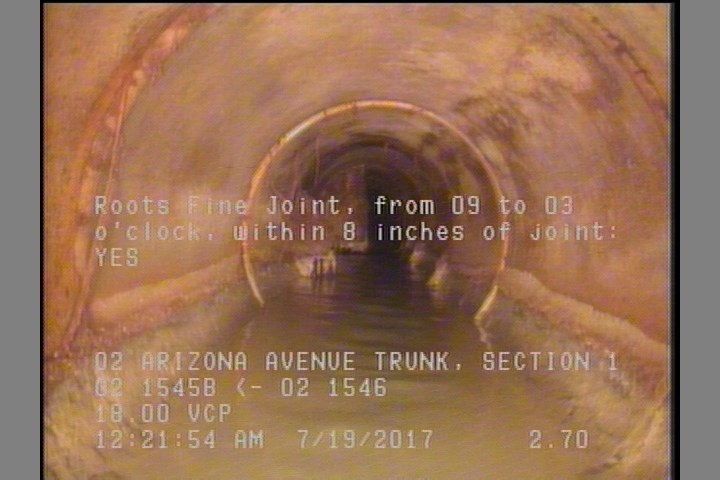

2.7 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

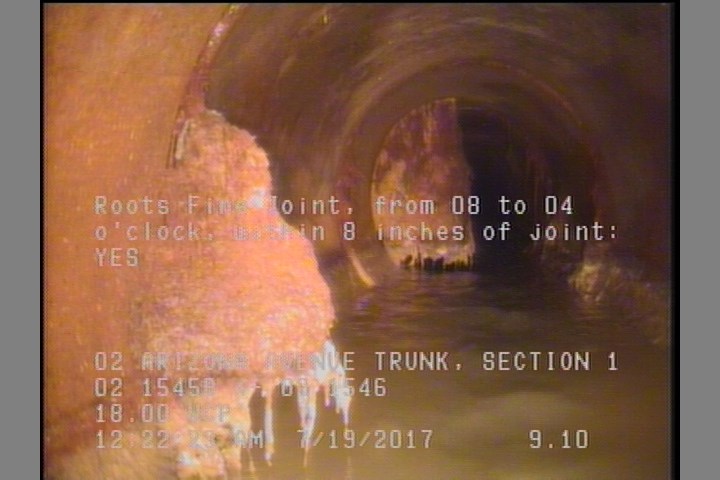

9.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

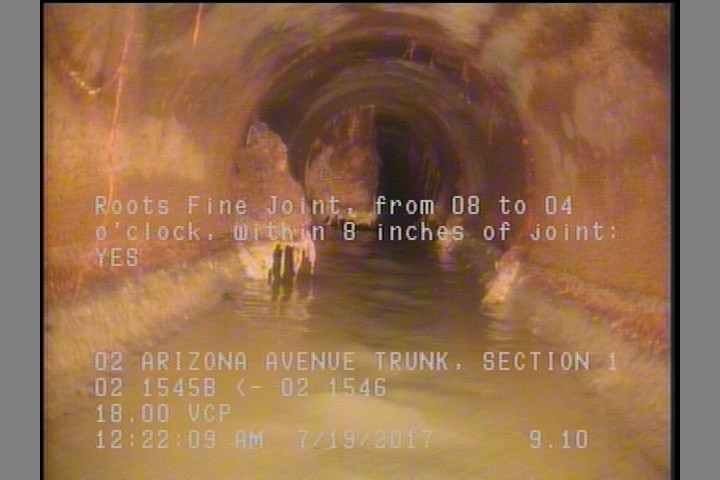

9.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

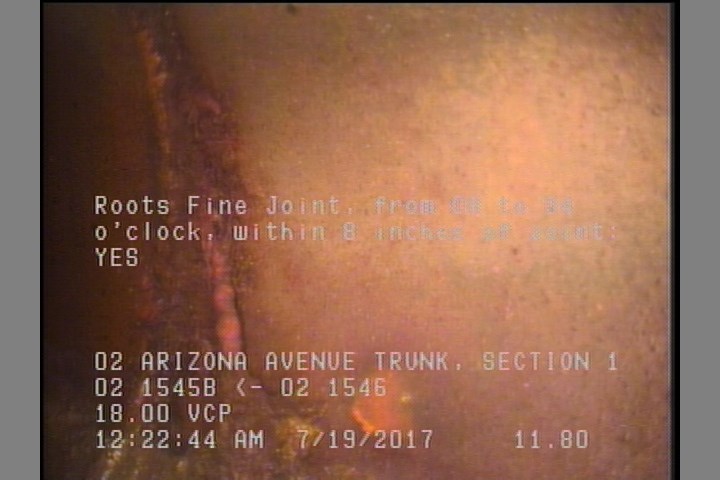

11.8 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

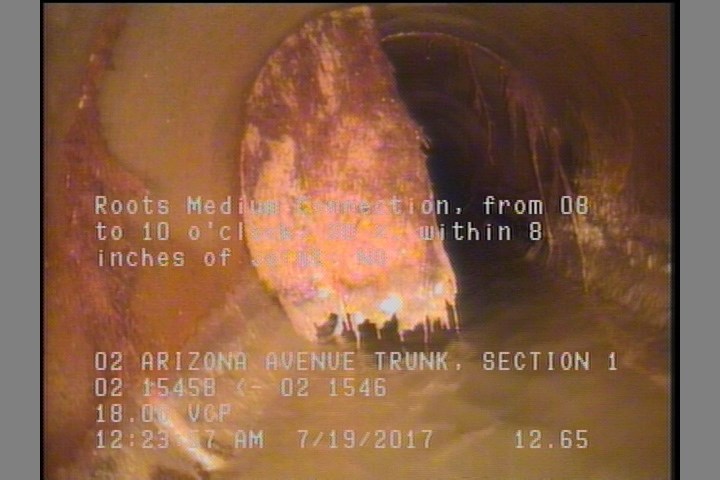

12.7 ft. - Roots Medium Connection, from 08 to 10 o'clock, 20 %, within 8 inches of joint: NO

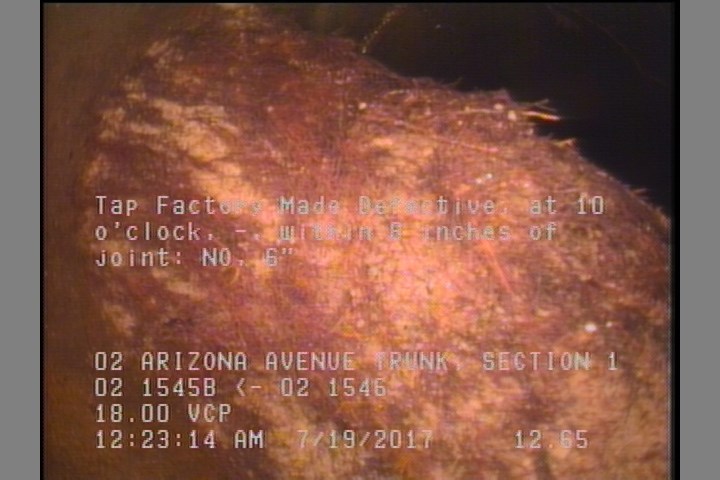

12.7 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 9.1 | RFJ | — |
| 2.7 | RFJ | — |
| 0 | AMH | 02 1545B |
| 12.7 | MSA | CAM BLKD BY ROOTS |
| 11.8 | RFJ | — |
| 12.7 | RMC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 12.7 | TFD | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 9.1 | RFJ | — |
Properties (5)
- additional_info
- SC345513
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-19T00:15:00-07:00
- sewer_category
- Gravity
