Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2017, 05:36 AM

  • 02 1549_02 1548_18072017_223850.mp4

Date
07/18/2017
W/O
646606
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00230
PipeID
P03981
Time
10:36 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4653
Sewer Name
02 ARIZONA AVENUE TRUNK, SECTION 1
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
WO_646606_TV02006_JUL2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1549
Downstream MH
02 1548
Dir. of Survey
Downstream
Length Surveyed
314.9 ft.
Total Length
314.9 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 02 1549 to 02 1548
MH: 02 1549MH: 02 1548downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 15490 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK32 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES42 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"54.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"78.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"81.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"125.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"129 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"154.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"180.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"183.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"207 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"228.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"232.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"256.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES260.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"266.1 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES283.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"287.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"307.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES311.2 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES314.9 ft. AMH - Downstream Manhole, Survey Ends - 02 1548314.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (5)

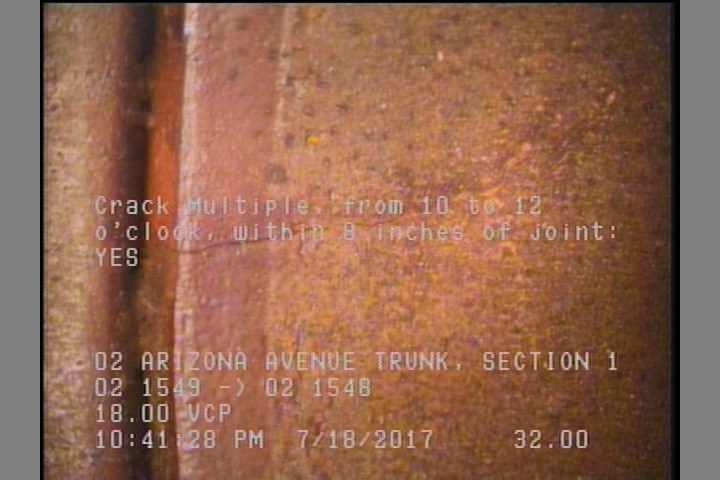

  • Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

    32 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    256.2 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

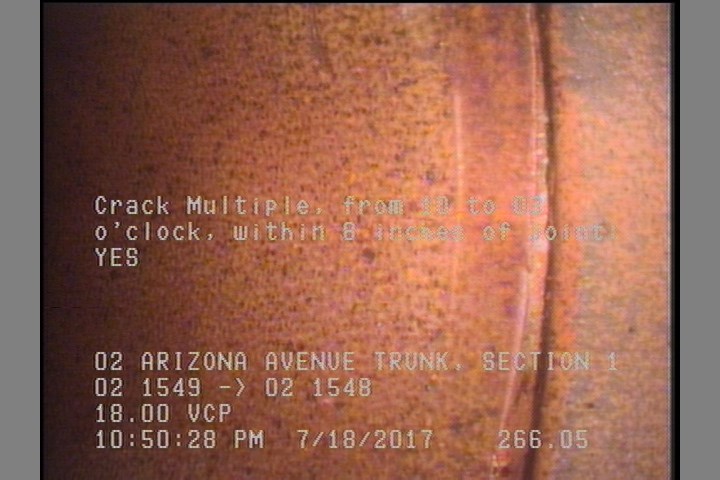

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    266.1 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

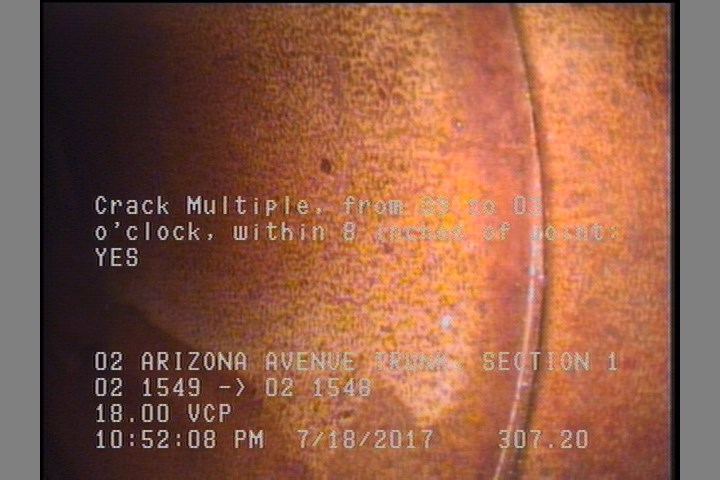

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    307.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

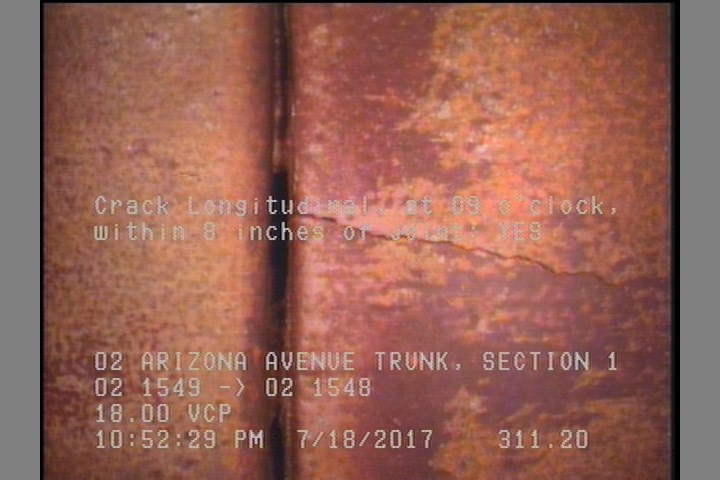

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    311.2 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P03981Work order 646606

Observations (27)

DistanceCodeObservation
42TFC—
256.2CL—
0MWL—
54.9TF—
125.2TFC—
232.8TFC—
314.9AMH02 1548
32CM—
104.9TF—
207TF—
314.9MGOCONNECTION AT MH 9 O'CLOCK
180.4TFC—
287.3TF—
0MWM—
228.9TF—
78.3TF—
260.1TF—
129TFC—
81.6TFC—
307.2CM—
0AMH02 1549
0MGOCONNECTION AT MH 9 O'CLOCK
311.2CL—
154.7TF—
266.1CM—
183.1TFC—
283.3TFC—

Properties (5)

additional_info
SC345513
custom_field_two
3
customer
LACSD
datetime
2017-07-18T22:36:59-07:00
sewer_category
Gravity
