Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 13, 2017, 07:45 AM

  • F 0078_F 0077 _13072017_004609.mp4

Date
07/13/2017
W/O
640863
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00043
PipeID
P10282
Time
12:45 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4644
Sewer Name
F JOINT OUTFALL F - UNIT 7A
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
WO_640863_TV02203_JUN2017
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Width
60 in.
Upstream MH
F 0078
Downstream MH
F 0077
Dir. of Survey
Downstream
Length Surveyed
551.5 ft.
Total Length
551.6 ft.
Structural Index
4
Structural Quick
5S3U
Structural Rating
827
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
827
Pipe schematic from manhole F 0078 to F 0077
MH: F 0078MH: F 0077downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - F 00784.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51.3 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start550.8 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish551.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish551.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK551.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK551.6 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK551.6 ft. AMH - Downstream Manhole, Survey Ends - F 0077

Observation photos (2)

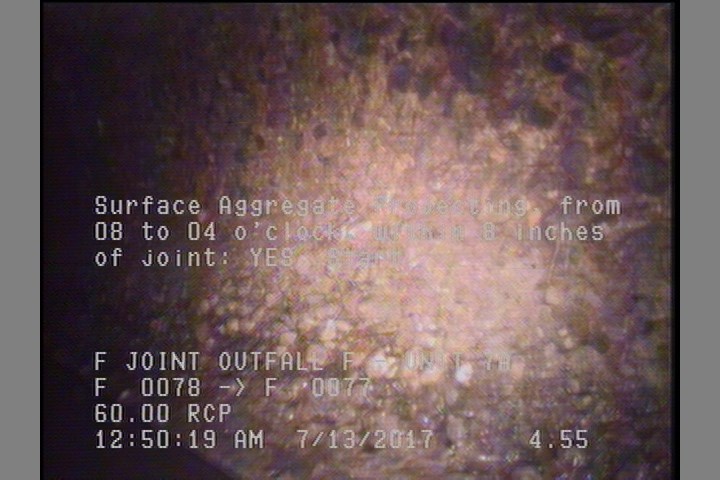

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

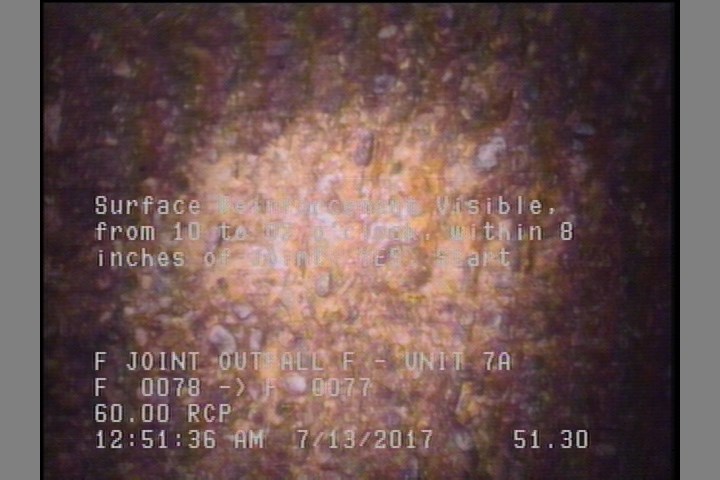

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    51.3 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P10282Work order 640863

Observations (12)

DistanceCodeObservation
4.6SAP—
551.6MGOCONNECTION AT MH 12 O'CLOCK
0MWM—
0MWL—
551.1SAP—
551.2MGOCONNECTION AT MH 9 O'CLOCK
550.8SRV—
51.3SRV—
0MGOCONNECTION AT MH 9 O'CLOCK
551.2MGOCONNECTION AT MH 3 O'CLOCK
551.6AMHF 0077
0AMHF 0078

Properties (5)

additional_info
SC345504
custom_field_two
2
customer
LACSD
datetime
2017-07-13T00:45:36-07:00
sewer_category
Gravity
