Wastewater/Activity/PacpInspection/1.0Aug 25, 2017, 07:39 AM
05 1872_05 1871_8252017_004615.mp4
- Date
- 08/25/2017
- W/O
- 0652018
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00507
- PipeID
- P07097
- Time
- 12:39 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0623
- Sewer Name
- 05 NARBONNE AVENUE TRUNK, SECTION 1(WEST)
- City
- LOMITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- 20170825MDM_NARBONNE_AVENUE_TRUNK_SECTION_1_WEST
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 1871
- Downstream MH
- 05 1872
- Dir. of Survey
- Upstream
- Length Surveyed
- 283.9 ft.
- Total Length
- 283.9 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

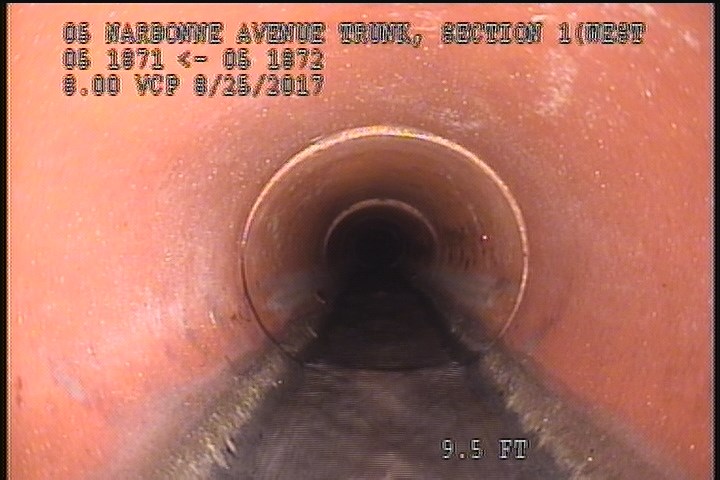

9.5 ft. - General Observation - 8" VCP

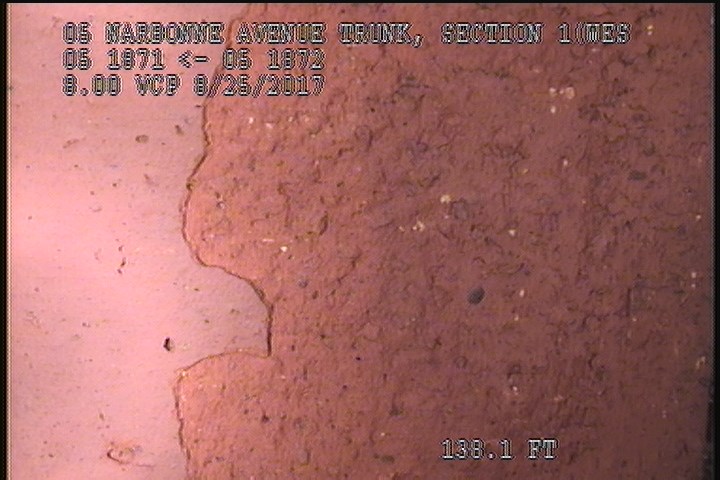

138.1 ft. - Surface Spalling, from 08 to 03 o'clock, within 8 inches of joint: YES

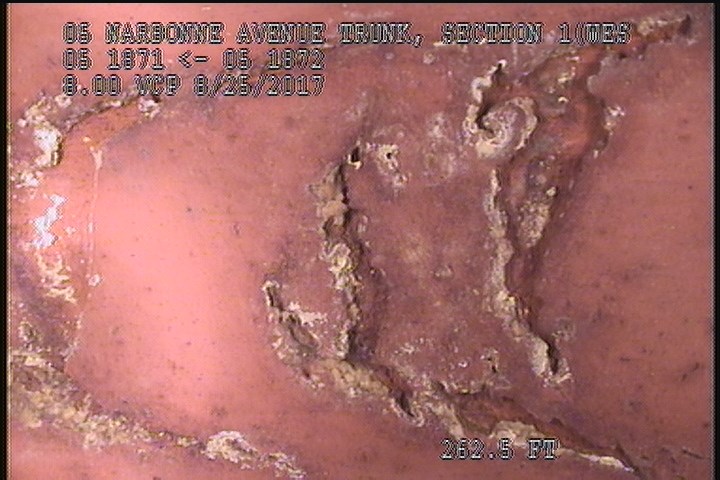

262.5 ft. - Surface Spalling, from 01 to 02 o'clock, within 8 inches of joint: NO - PIPE DEFECT OR SURFACE PEELING
283.9 ft. - Upstream Manhole, Survey Ends - 1:30AM
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 262.5 | SSS | PIPE DEFECT OR SURFACE PEELING |
| 0 | MWM | — |
| 221.2 | TFC | Capped |
| 122.2 | TF | Open |
| 138.1 | SSS | — |
| 211 | MGO | SLIGHT OFFSET JOINT SEALED |
| 283.4 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 173.4 | TFC | Capped |
| 21.9 | TFC | Capped |
| 70.7 | TF | Open |
| 0 | MWL | — |
| 0 | AMH | 12:40AM |
| 9.5 | MGO | 8" VCP |
| 283.9 | AMH | 1:30AM |
Properties (4)
- custom_field_three
- SPALLING BLISTERING PEELING SURFACE-UNUSAL
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-25T00:39:51-07:00
