Wastewater/Activity/PacpInspection/1.0May 30, 2017, 11:14 AM
- Date
- 05/30/2017
- W/O
- 641198
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01131
- PipeID
- P25309
- Time
- 4:14 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4272
- Sewer Name
- 05 COLDEN AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_641198_TV05127_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 2604
- Downstream MH
- 05 2603
- Dir. of Survey
- Downstream
- Length Surveyed
- 382.9 ft.
- Total Length
- 382.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

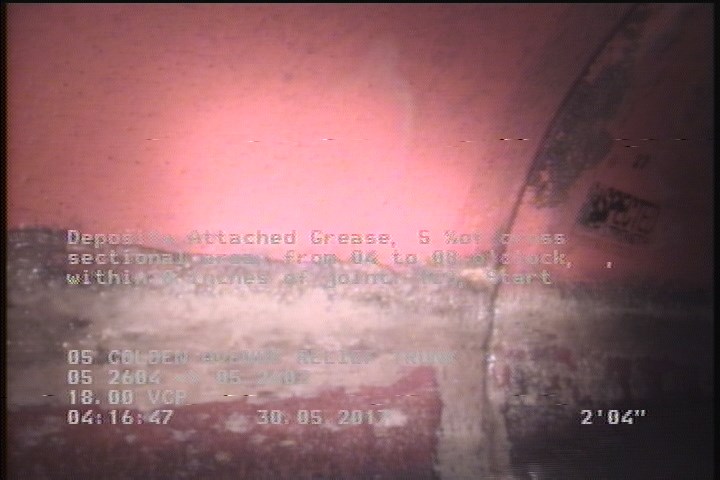

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.3 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 05 2604 |
| 379.8 | DAGS | — |
| 382.9 | AMH | 05 2603 |
Properties (6)
- additional_info
- SC345272
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-30T04:14:03-07:00
- sewer_category
- Gravity
- year_laid
- 38590
