Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 10, 2017, 08:35 AM

  • 15 0281_15 0280 _07102017_014328.mp4

Date
07/10/2017
W/O
640706
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00591
PipeID
P12204
Time
1:35 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4601
Sewer Name
15 AMAR ROAD TRUNK
City
LA PUENTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
WO_640706_TV15142_JUN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
15 0281
Downstream MH
15 0280
Dir. of Survey
Downstream
Length Surveyed
354.4 ft.
Total Length
354.4 ft.
Structural Index
2
Structural Quick
3124
Structural Rating
11
O&M Index
2
O&M Quick
412M
O&M Rating
144
Overall Index
2
Overall Quick
—
Overall Rating
155
Pipe schematic from manhole 15 0281 to 15 0280
MH: 15 0281MH: 15 0280downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 02812 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start12.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES78.9 ft. FS - Fracture Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES101.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES179.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"224.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"262.3 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES279.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"333 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES344.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"351.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish354.4 ft. AMH - Downstream Manhole, Survey Ends - 15 0280354.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (6)

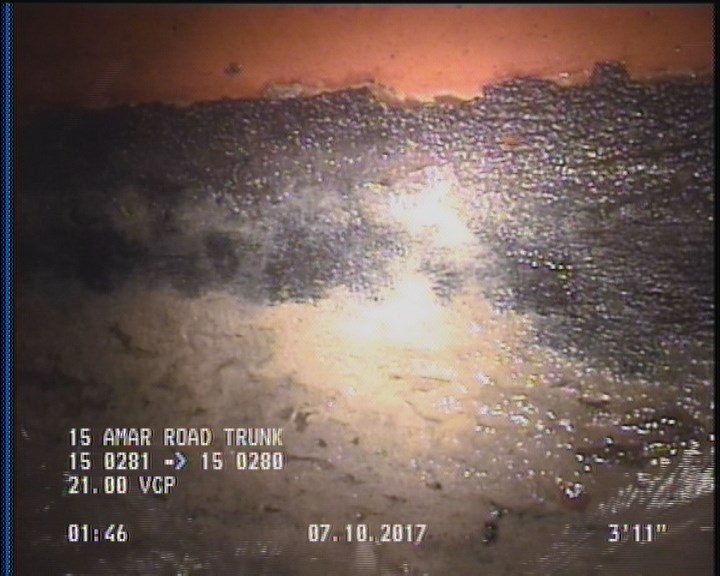

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

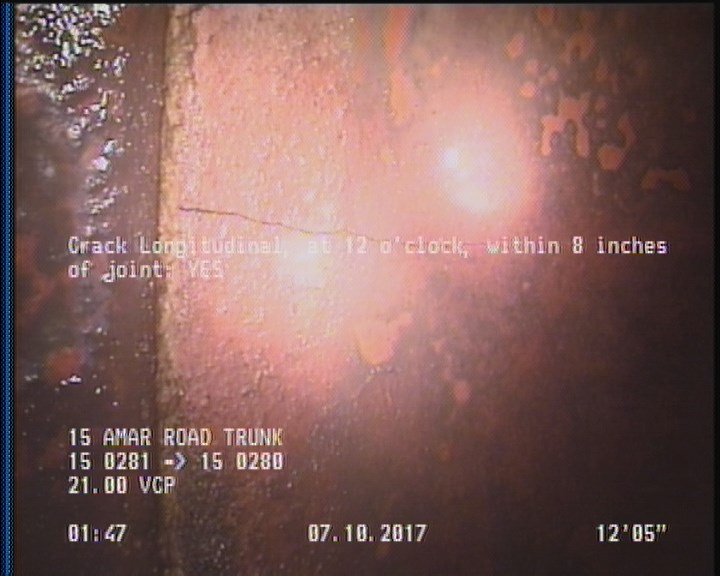

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    12.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

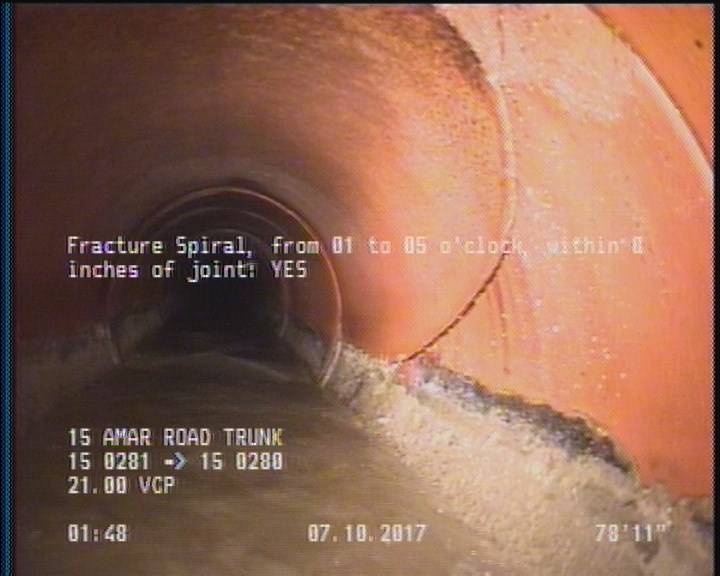

  • Fracture Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES

    78.9 ft. - Fracture Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES

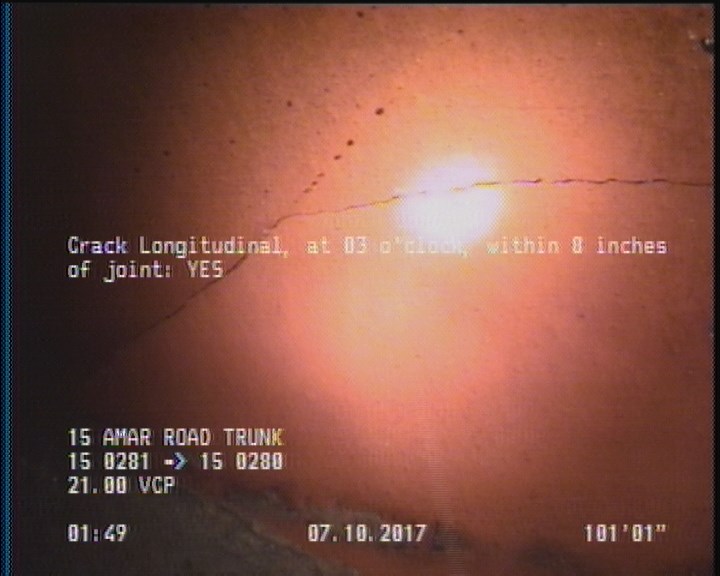

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    101.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

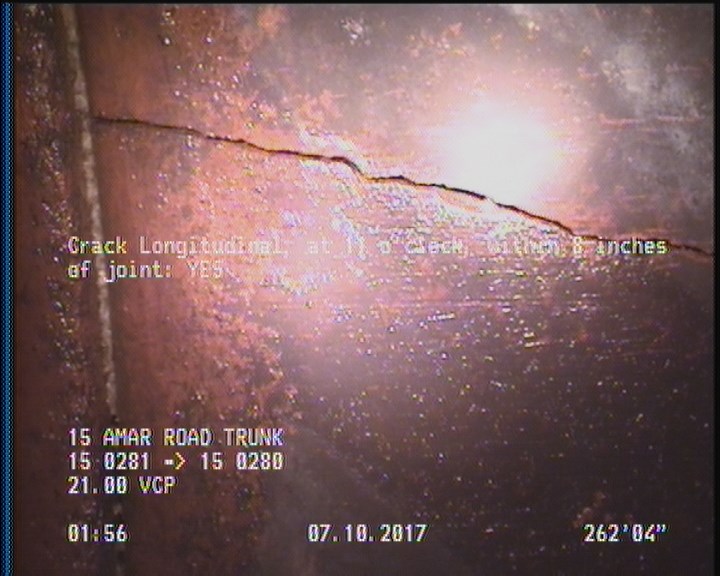

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    262.3 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

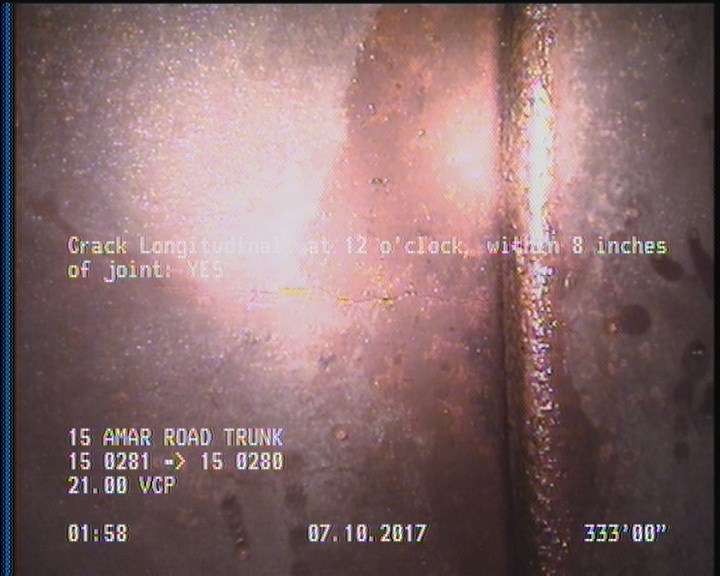

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    333 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P12204Work order 640706

Observations (16)

DistanceCodeObservation
2DAGS—
179.1TFC—
354.4AMH15 0280
101.1CL—
333CL—
0MWM—
78.9FS—
0MWL—
0AMH15 0281
354.4MGOCOCKROACHES IN MANHOLE
344.8TFC—
224.6TFC—
279.8TFC—
12.4CL—
351.9DAGS—
262.3CL—

Properties (5)

additional_info
SC345433
custom_field_two
3
customer
LACSD
datetime
2017-07-10T01:35:27-07:00
sewer_category
Gravity
