Wastewater/Activity/PacpInspection/1.0Jul 11, 2017, 09:59 AM
- Date
- 07/11/2017
- W/O
- 635631
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00438
- PipeID
- P25321
- Time
- 2:59 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3984-SC345389
- Sewer Name
- 05 EL NIDO TRUNK
- City
- TORRANCE CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_635631_TV05253_JUN2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 1465
- Downstream MH
- 05 1464A
- Dir. of Survey
- Downstream
- Length Surveyed
- 279.9 ft.
- Total Length
- 279.9 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 165
- O&M Index
- 2
- O&M Quick
- 422J
- O&M Rating
- 118
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 283
Observation photos (4)

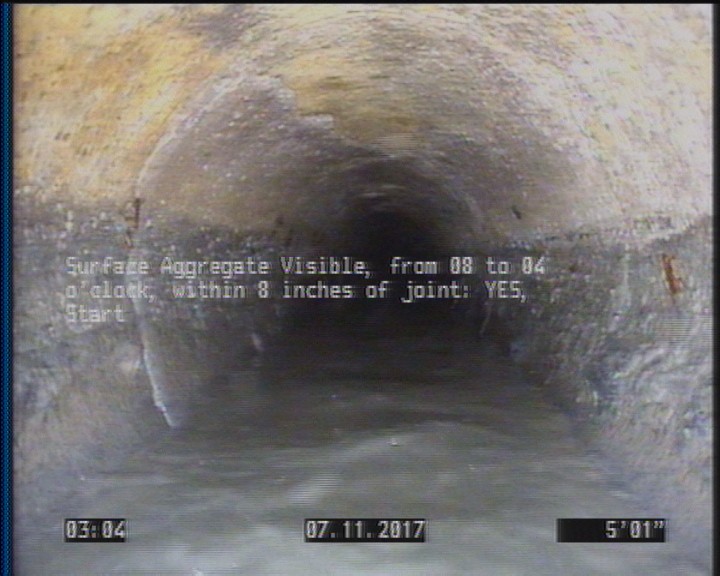

5.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
5.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

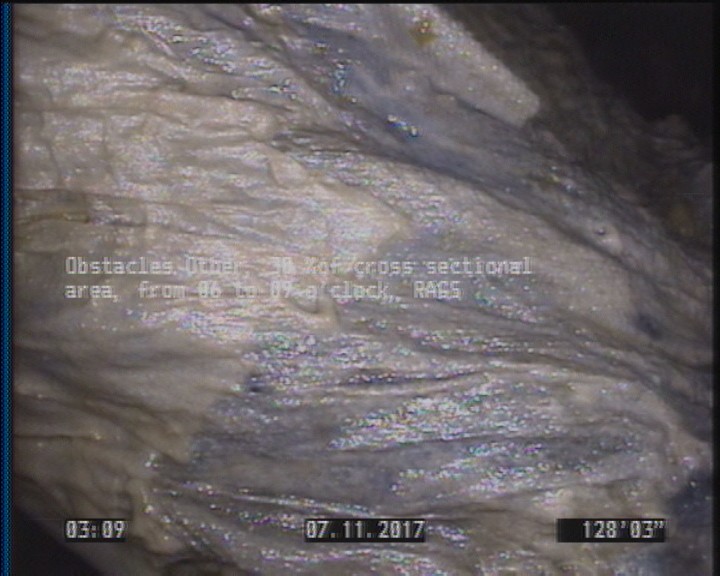

128.2 ft. - Obstacles Other, 30 %of cross sectional area, from 06 to 09 o'clock - RAGS

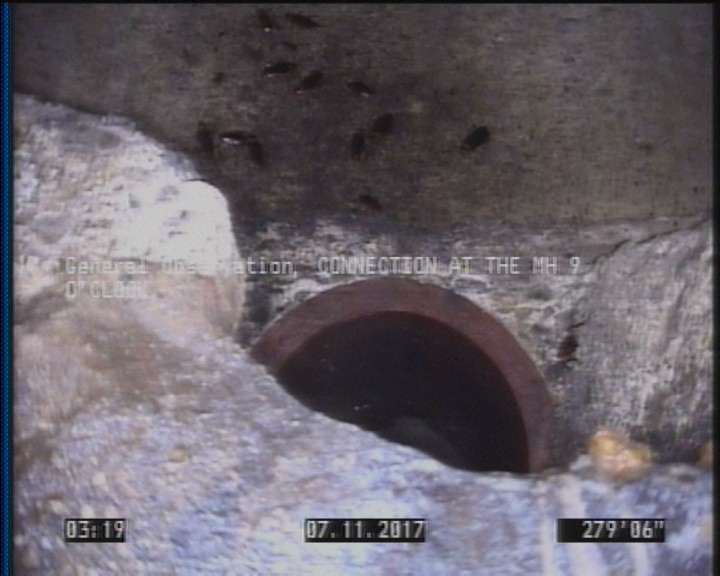

279.5 ft. - General Observation - CONNECTION AT THE MH 9 O'CLOCK
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 278.3 | DAGS | — |
| 196.7 | TFC | — |
| 128.2 | OBZ | RAGS |
| 0 | MWM | — |
| 5.1 | SAV | — |
| 279.5 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 121.8 | TFC | — |
| 220 | TFC | — |
| 0 | MWL | — |
| 0 | AMH | 05 1465 |
| 172.5 | TFC | — |
| 279.9 | AMH | 05 1464A |
| 278.3 | SAV | — |
| 74.3 | TFC | — |
| 5.1 | DAGS | — |
| 271.6 | TFC | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-11T02:59:16-07:00
