Wastewater/Activity/PacpInspection/1.0May 5, 2016, 08:08 AM
H 0583_H 0582_05052016_011052.mp4
- Date
- 05/05/2016
- W/O
- 568671
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00188
- PipeID
- P11006
- Time
- 1:08 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3340
- Sewer Name
- H JOINT OUTFALL H - UNIT 8E
- City
- BALDWIN PARK
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_568671_TV15173_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- H 0583
- Downstream MH
- H 0582
- Dir. of Survey
- Downstream
- Length Surveyed
- 531 ft.
- Total Length
- 531 ft.
- Structural Index
- 3
- Structural Quick
- 3S00
- Structural Rating
- 306
- O&M Index
- 2
- O&M Quick
- 2T00
- O&M Rating
- 212
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 518
Observation photos (2)

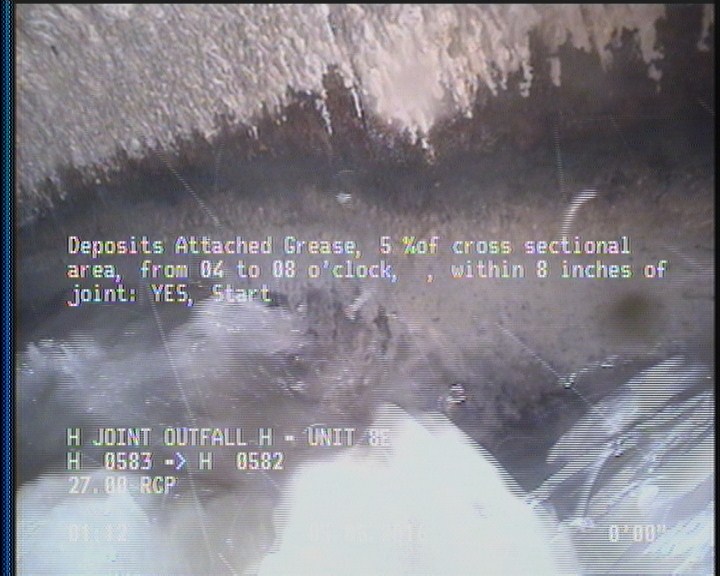

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

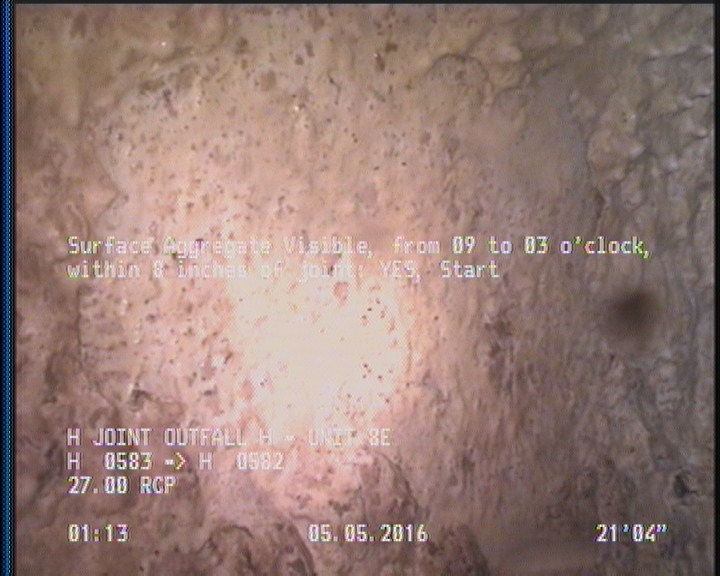

21.4 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 531 | SAV | — |
| 21.4 | SAV | — |
| 2 | MGO | MAG COATING 80% |
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | AMH | H 0583 |
| 212.7 | TFC | — |
| 84 | TFC | — |
| 0 | MWM | — |
| 531 | AMH | H 0582 |
| 531 | DAGS | — |
Properties (4)
- additional_info
- SC305617
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-05T01:08:42-07:00
