Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 28, 2016, 08:45 AM

  • 18 0012_18 0011_042816_014523.mpg

Date
04/28/2016
W/O
568736
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00713
PipeID
P13828
Time
1:45 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3356
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
WO_568736_TV18059_MAY2016
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
18 0011
Downstream MH
18 0012
Dir. of Survey
Upstream
Length Surveyed
196.7 ft.
Total Length
196.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 18 0011 to 18 0012
MH: 18 0011MH: 18 0012upstream0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK CAPPED0 ft. AMH - Upstream Manhole, Survey Ends - 18 00126.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"27.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"29.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO74.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"132.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"136.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"180.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"194.3 ft. MGO - General Observation - MAG COAT 90%196.7 ft. MWL - Water Level, 5 %of cross sectional area196.7 ft. AMH - Downstream Manhole, Survey Begins - 18 0011196.7 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK196.7 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (1)

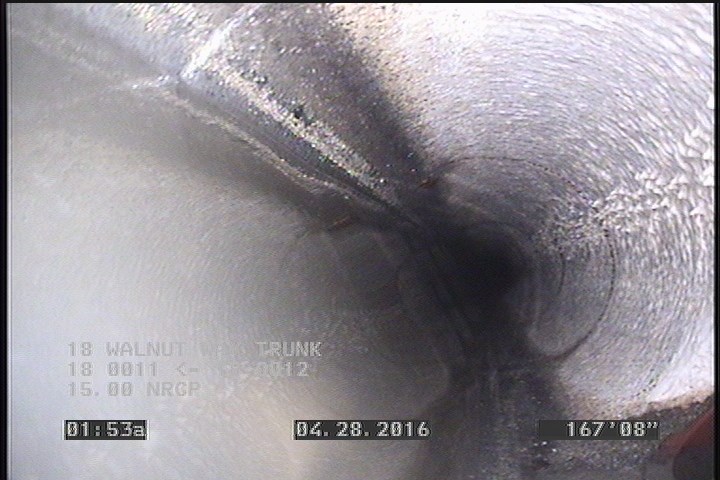

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

    167.1 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

All inspections of P13828Work order 568736

Observations (15)

DistanceCodeObservation
167.1DSZ—
121.9TF—
63.8TF—
196.7MGOCONNECTION AT MH 9 OCLOCK CAPPED
196.7AMH18 0012
0MWL—
118TF—
0AMH18 0011
60.4TF—
16TF—
0MGOCONNECTION AT MH 3 OCLOCK
0MWM—
169.3TF—
2.4MGOMAG COAT 90%
190.5TF—

Properties (5)

additional_info
SC300352
custom_field_two
5
customer
LACSD
datetime
2016-04-28T01:45:01-07:00
sewer_category
GRAVITY
