Wastewater/Activity/PacpInspection/1.0Apr 27, 2016, 10:38 AM
18 0027_18 0026_042716_033925.mpg
- Date
- 04/27/2016
- W/O
- 568736
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00713
- PipeID
- P13843
- Time
- 3:38 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3330
- Sewer Name
- 18 WALNUT WAY TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_568736_TV18059_MAY2016
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 18 0027
- Downstream MH
- 18 0026
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.9 ft.
- Total Length
- 87.9 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

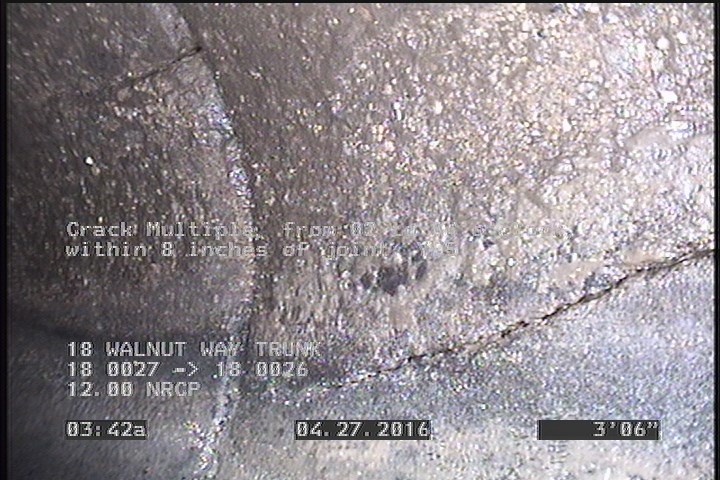

3.5 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

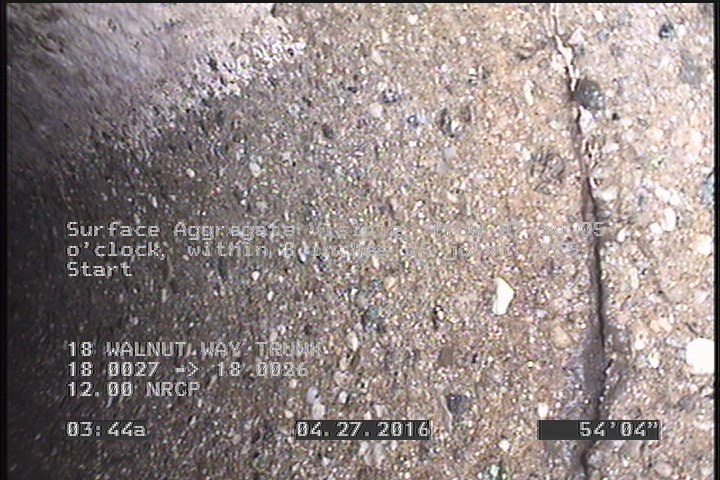

54.4 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

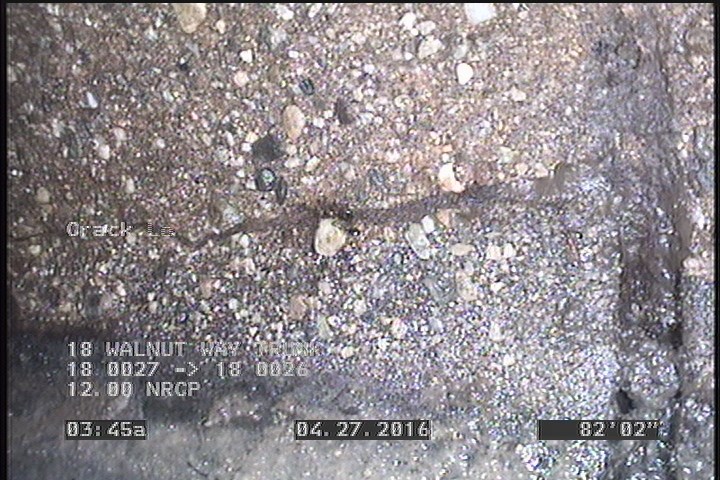

82.2 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 87.9 | MGO | CONNECTION AT MH 3 OCLOCK |
| 82.2 | CL | — |
| 84.4 | SAV | — |
| 0 | AMH | 18 0027 |
| 71.5 | TFC | — |
| 0 | MWL | — |
| 2.1 | MGO | MAG COAT 5% |
| 3.5 | CM | — |
| 0 | MGO | CONNECTION AT MH 9 OCLOCK |
| 87.9 | AMH | 18 0026 |
| 0 | MWM | — |
| 54.4 | SAV | — |
Properties (5)
- additional_info
- SC226000
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-04-27T03:38:53-07:00
- sewer_category
- SIPHON
