Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 28, 2016, 06:10 AM

  • 18 0017_18 0016_042716_231033.mpg

Date
04/27/2016
W/O
568736
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00713
PipeID
P13833
Time
11:10 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3356
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Routine Assessment
Project
WO_568736_TV18059_MAY2016
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0017
Downstream MH
18 0016
Dir. of Survey
Downstream
Length Surveyed
146.1 ft.
Total Length
146.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0017 to 18 0016
MH: 18 0017MH: 18 0016downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 00170 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK CAPPED2.4 ft. MGO - General Observation - MAG COAT 15%3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start18.3 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"38 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: NO146.1 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK146.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0016146.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

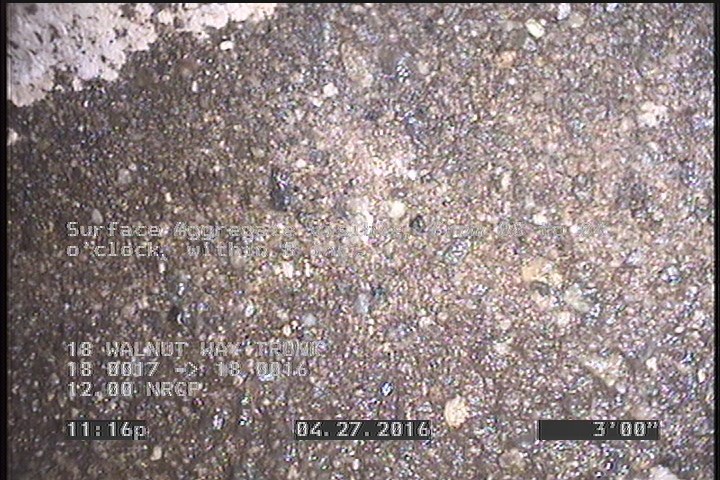

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

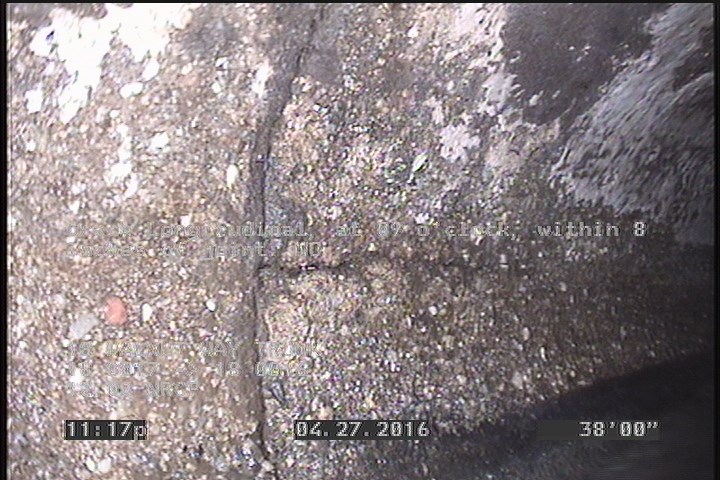

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: NO

    38 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: NO

All inspections of P13833Work order 568736

Observations (11)

DistanceCodeObservation
146.1MGOCONNECTION AT MH 9 OCLOCK
38CL—
0AMH18 0017
146.1AMH18 0016
18.3TFA—
0MWL—
0MWM—
2.4MGOMAG COAT 15%
3SAV—
0MGOCONNECTION AT MH 3 OCLOCK CAPPED
146.1SAV—

Properties (5)

additional_info
SC300352
custom_field_two
3
customer
LACSD
datetime
2016-04-27T23:10:00-07:00
sewer_category
GRAVITY
