Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 27, 2016, 08:38 AM

  • 18 0034_18 0033_042716_014320.mpg

Date
04/27/2016
W/O
568736
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00713
PipeID
P13850
Time
1:38 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3330
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Routine Assessment
Project
WO_568736_TV18059_MAY2016
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0034
Downstream MH
18 0033
Dir. of Survey
Downstream
Length Surveyed
312 ft.
Total Length
312 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0034 to 18 0033
MH: 18 0034MH: 18 0033downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 00342.1 ft. MGO - General Observation - MAG COAT 5%8.6 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start16.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"21.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"70.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"76.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"122.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"128.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"166 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"168.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"171.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"223.9 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES225.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"256.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"283.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"312 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish312 ft. AMH - Downstream Manhole, Survey Ends - 18 0033312 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK

Observation photos (2)

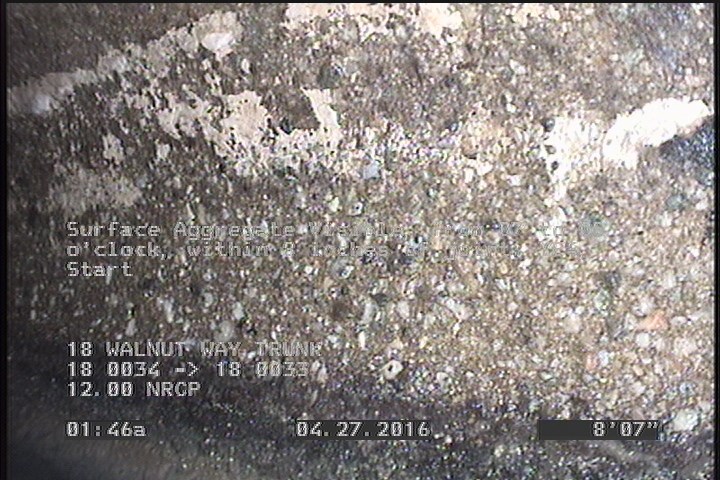

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    8.6 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

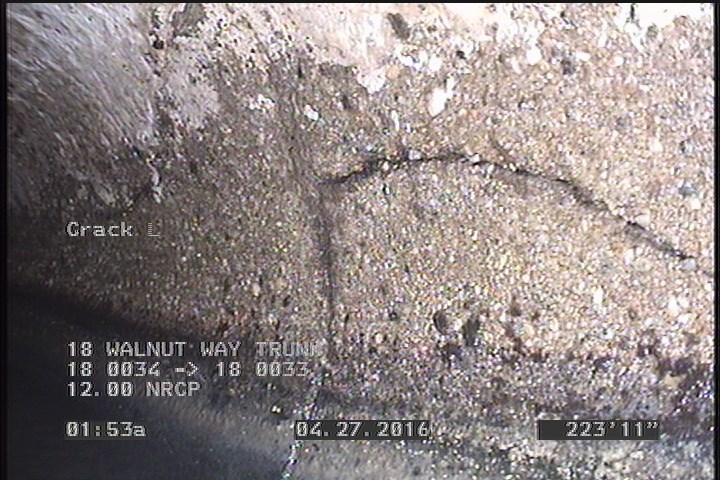

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    223.9 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

All inspections of P13850Work order 568736

Observations (21)

DistanceCodeObservation
2.1MGOMAG COAT 5%
312SAV—
168.2TFC—
225.6TFC—
8.6SAV—
0MWL—
128.8TF—
166TF—
21.7TFC—
0MWM—
312AMH18 0033
70.6TFC—
283.7TFC—
256.4TF—
0AMH18 0034
312MGOCONNECTION AT MH 3 OCLOCK
16.4TF—
223.9CL—
122.5TFC—
171.1TFC—
76.6TF—

Properties (5)

additional_info
SC226000
custom_field_two
3
customer
LACSD
datetime
2016-04-27T01:38:45-07:00
sewer_category
GRAVITY
