Wastewater/Activity/PacpInspection/1.0Apr 28, 2016, 07:23 AM
18 0022_18 0021_042816_002422.mpg
- Date
- 04/28/2016
- W/O
- 568736
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00713
- PipeID
- P13838
- Time
- 12:23 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3356
- Sewer Name
- 18 WALNUT WAY TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_568736_TV18059_MAY2016
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 18 0021
- Downstream MH
- 18 0022
- Dir. of Survey
- Upstream
- Length Surveyed
- 200.9 ft.
- Total Length
- 200.9 ft.
- Structural Index
- 2
- Structural Quick
- 3123
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

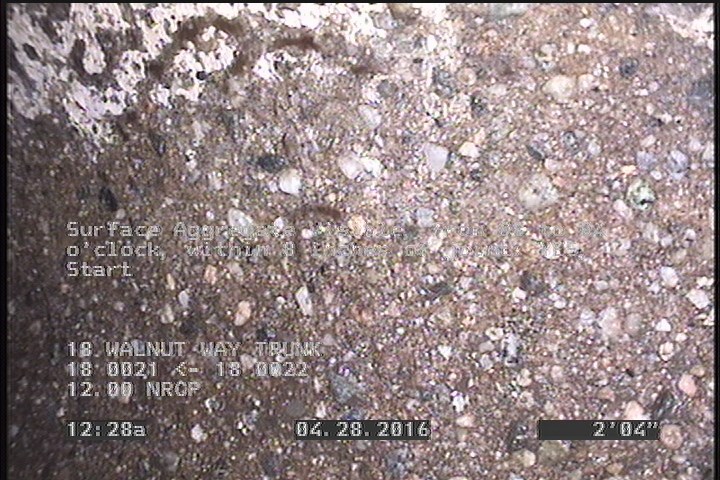

2.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

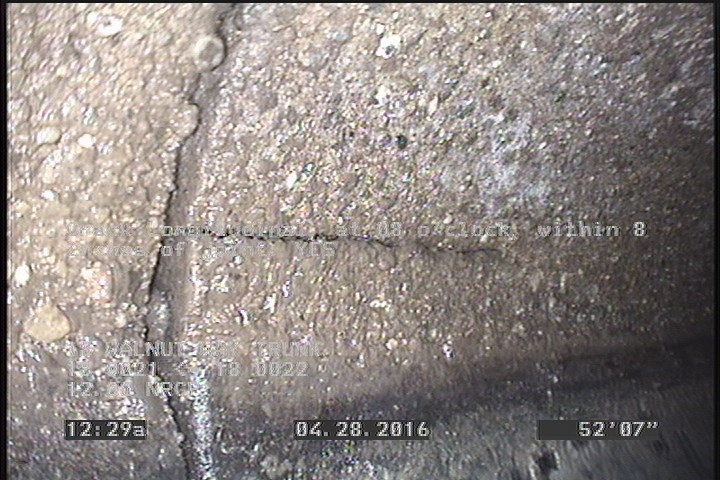

52.6 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

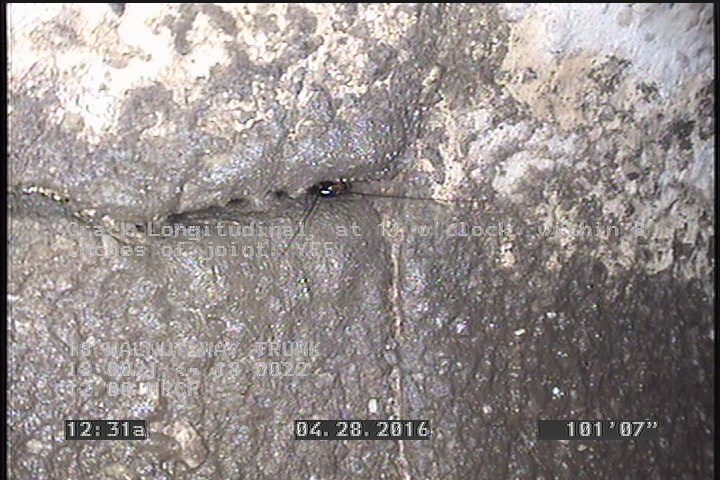

101.6 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

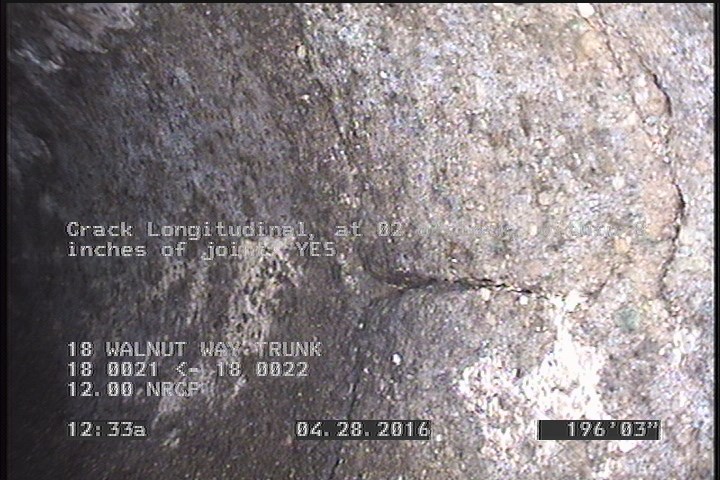

196.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 196.3 | SAV | — |
| 0 | AMH | 18 0021 |
| 2.4 | SAV | — |
| 0 | MWL | — |
| 196.3 | CL | — |
| 52.6 | CL | — |
| 101.6 | CL | — |
| 200.9 | AMH | 18 0022 |
| 2.4 | MGO | MAG COAT 5% |
| 200.9 | MGO | CONNECTION AT MH 9 OCLOCK |
| 17 | TF | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 9 OCLOCK CAPPED |
| 0 | MGO | CONNECTION AT MH 3 OCLOCK CAPPED |
Properties (5)
- additional_info
- SC300352
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-04-28T00:23:33-07:00
- sewer_category
- SIPHON
