Wastewater/Activity/PacpInspection/1.0Apr 28, 2016, 09:50 AM
18 0003_18 0002_042816_025049.mpg
- Date
- 04/28/2016
- W/O
- 568736
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00713
- PipeID
- P13818
- Time
- 2:50 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3356
- Sewer Name
- 18 WALNUT WAY TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_568736_TV18059_MAY2016
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 18 0003
- Downstream MH
- 18 0002
- Dir. of Survey
- Downstream
- Length Surveyed
- 346.5 ft.
- Total Length
- 346.5 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

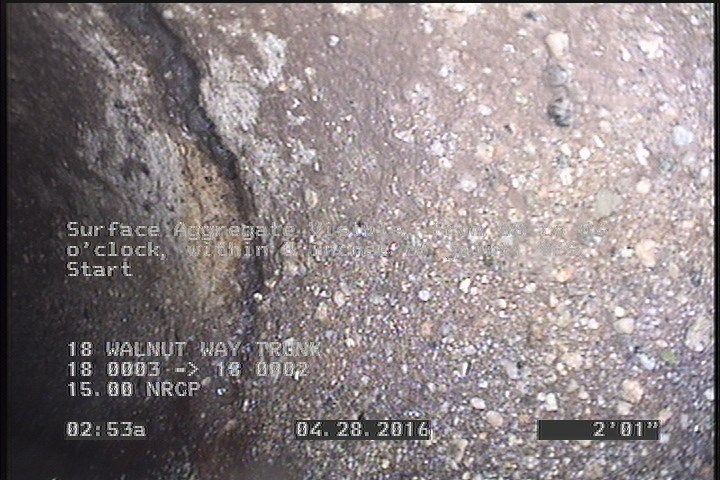

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

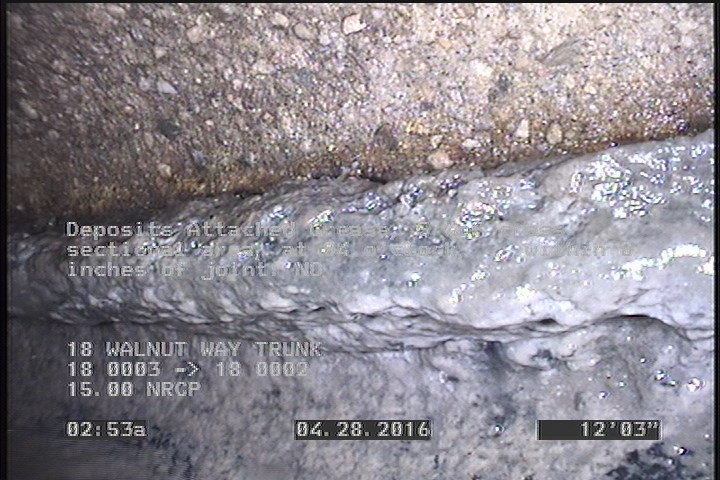

12.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 04 o'clock, , within 8 inches of joint: NO

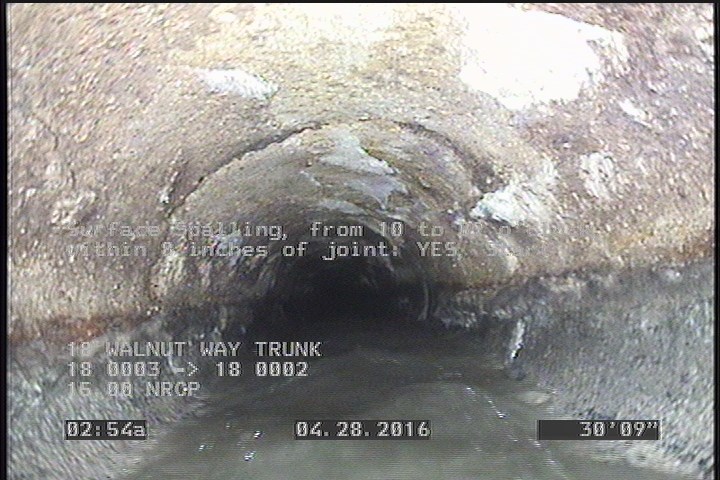

30.8 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 283.3 | TF | — |
| 195.6 | TF | — |
| 41.1 | TF | — |
| 137.7 | TF | — |
| 341.9 | SSS | — |
| 346.5 | AMH | 18 0002 |
| 189.4 | TF | — |
| 319.8 | TF | — |
| 338.4 | TF | — |
| 0 | MWM | — |
| 341.9 | SAV | — |
| 0 | AMH | 18 0003 |
| 67.9 | TF | — |
| 0 | MWL | — |
| 155.8 | TF | — |
| 2.1 | SAV | — |
| 92.3 | TF | — |
| 30.8 | SSS | — |
| 12.2 | DAGS | — |
| 228.8 | TF | — |
Properties (5)
- additional_info
- SC300352
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-04-28T02:50:03-07:00
- sewer_category
- GRAVITY
