Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 28, 2016, 06:45 AM

  • 18 0020_18 0019_042716_235128.mpg

Date
04/27/2016
W/O
568736
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00713
PipeID
P13836
Time
11:45 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3356
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Routine Assessment
Project
WO_568736_TV18059_MAY2016
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0019
Downstream MH
18 0020
Dir. of Survey
Upstream
Length Surveyed
55.8 ft.
Total Length
55.8 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0019 to 18 0020
MH: 18 0019MH: 18 0020upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 00200 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK2.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"24.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"42.7 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES53.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start53.7 ft. MGO - General Observation - MAG COAT 5%55.8 ft. MWM - Water Mark, 15 %of cross sectional area55.8 ft. AMH - Downstream Manhole, Survey Begins - 18 001955.8 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

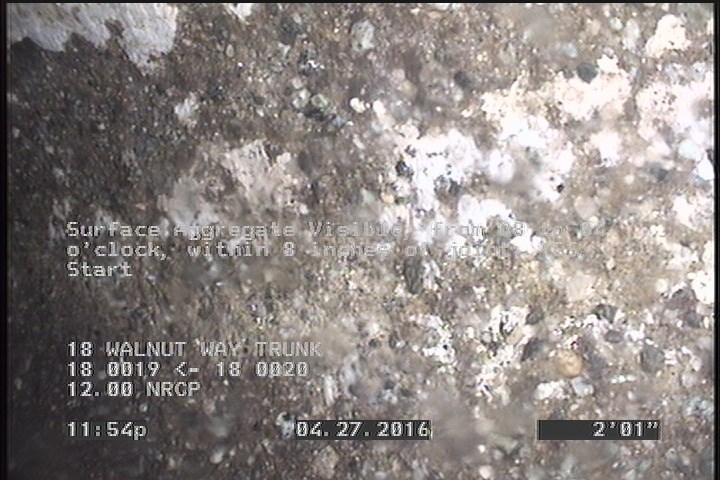

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

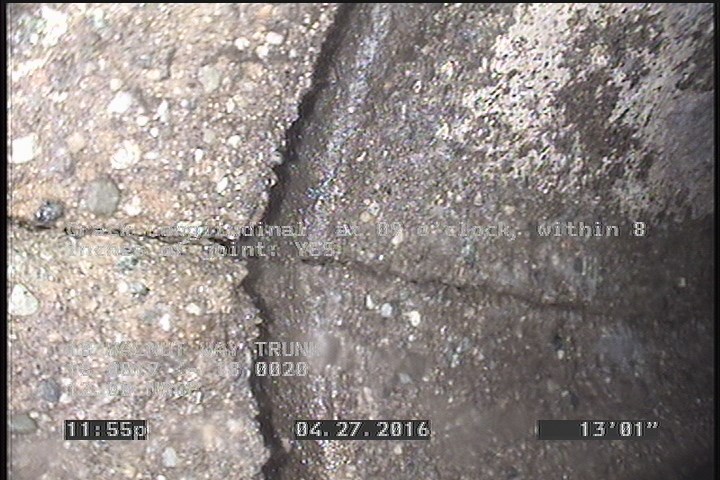

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    13.1 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P13836Work order 568736

Observations (11)

DistanceCodeObservation
2.1SAV—
51.8TFC—
55.8AMH18 0020
0MWM—
2.1MGOMAG COAT 5%
53.1SAV—
13.1CL—
55.8MGOCONNECTION AT MH 3 OCLOCK
31.3TFC—
0AMH18 0019
0MWL—

Properties (5)

additional_info
SC300352
custom_field_two
3
customer
LACSD
datetime
2016-04-27T23:45:13-07:00
sewer_category
GRAVITY
