Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2016, 08:34 AM
Date
05/16/2016
W/O
568671
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00188
PipeID
P21382
Time
1:34 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3349
Sewer Name
H JOINT OUTFALL H - UNIT 8E
City
BALDWIN PARK
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
19
Purpose
Routine Assessment
Project
WO_568671_TV15173_MAY2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
H 1195
Downstream MH
H 0580
Dir. of Survey
Downstream
Length Surveyed
202.5 ft.
Total Length
202.5 ft.
Structural Index
4
Structural Quick
5G3G
Structural Rating
368
O&M Index
2
O&M Quick
2G00
O&M Rating
80
Overall Index
3
Overall Quick
—
Overall Rating
448
Pipe schematic from manhole H 1195 to H 0580
MH: H 1195MH: H 0580downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 11950 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 4 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start80.3 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start199.5 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish199.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish199.5 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish199.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish202.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE202.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK202.5 ft. AMH - Downstream Manhole, Survey Ends - H 0580, RUN LIST STATES MH AT 351'.

Observation photos (5)

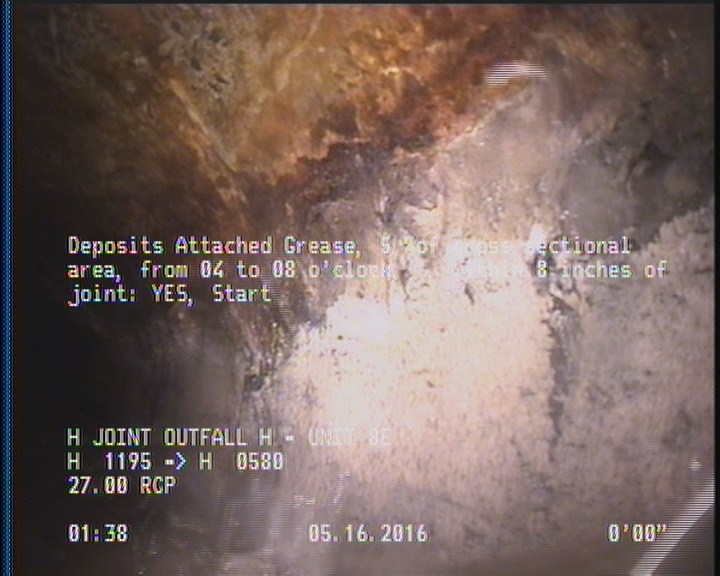

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

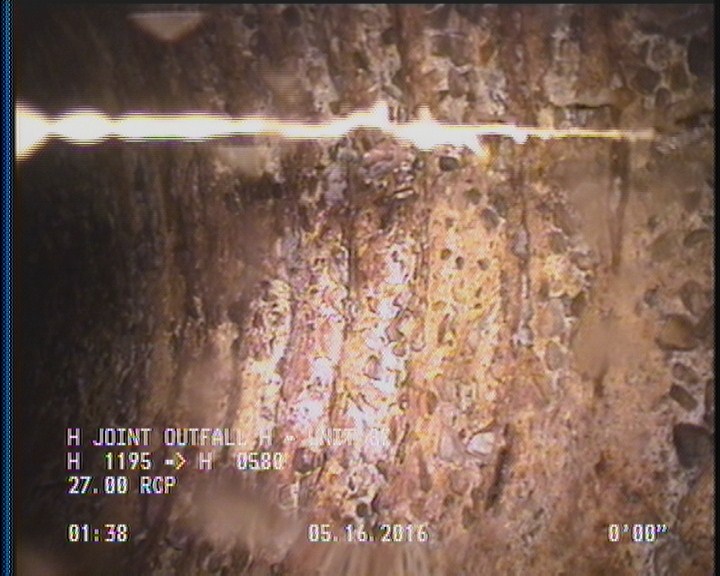

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

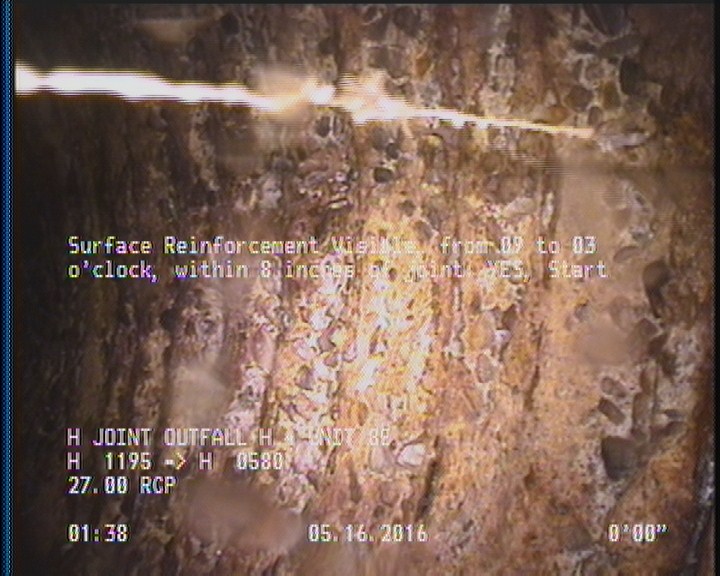

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

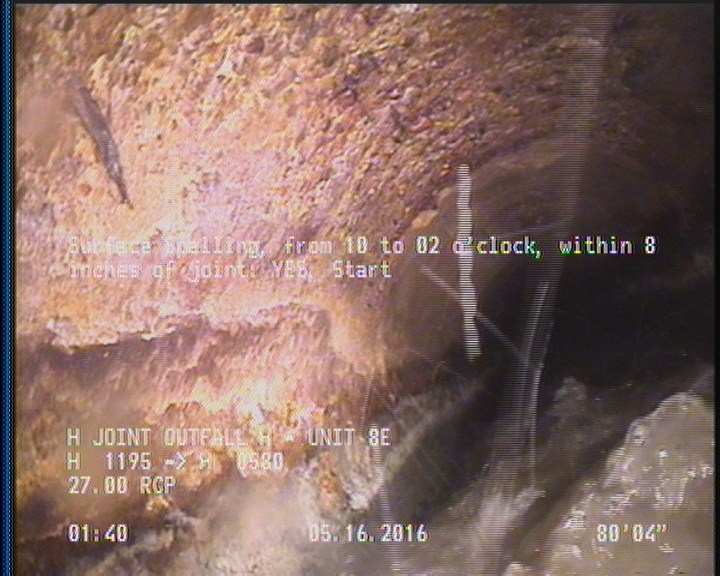

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    80.3 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

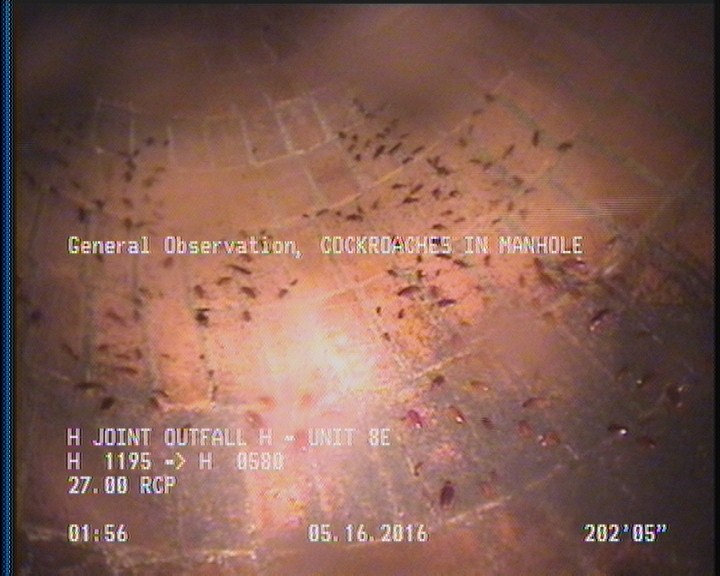

  • General Observation - COCKROACHES IN MANHOLE

    202.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21382Work order 568671

Observations (15)

DistanceCodeObservation
202.5MGOCOCKROACHES IN MANHOLE
0MWM—
199.5SRV—
2DAGS—
199.5DAGS—
0MWL—
202.5MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0AMHH 1195
199.5SSS—
80.3SSS—
0MGOACTIVE CONNECTION AT MH 4 O'CLOCK
2SAP—
199.5SAP—
202.5AMHH 0580, RUN LIST STATES MH AT 351'.
2SRV—

Properties (5)

additional_info
SC305628
custom_field_two
3
customer
LACSD
datetime
2016-05-16T01:34:03-07:00
sewer_category
GRAVITY
