Wastewater/Activity/PacpInspection/1.0Aug 24, 2017, 02:10 PM
Section#3_05 2622_05 2621__8242017__G6809.mp4
- Date
- 08/24/2017
- W/O
- 0651131
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z01145
- PipeID
- P25713
- Time
- 7:10 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- G6809
- Sewer Name
- 05 MANCHESTER AVENUE PUMP RELIEF TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Maintenance Related
- Project
- 20170824AM_MANCHESTER_AVENUE_PUMP_RELIEF_TRUNK
- Material
- RGRCP-PTL
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 05 2622
- Downstream MH
- 05 2621
- Dir. of Survey
- Downstream
- Length Surveyed
- 368.3 ft.
- Total Length
- 368.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 5141
- O&M Rating
- 155
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 155
Observation photos (5)

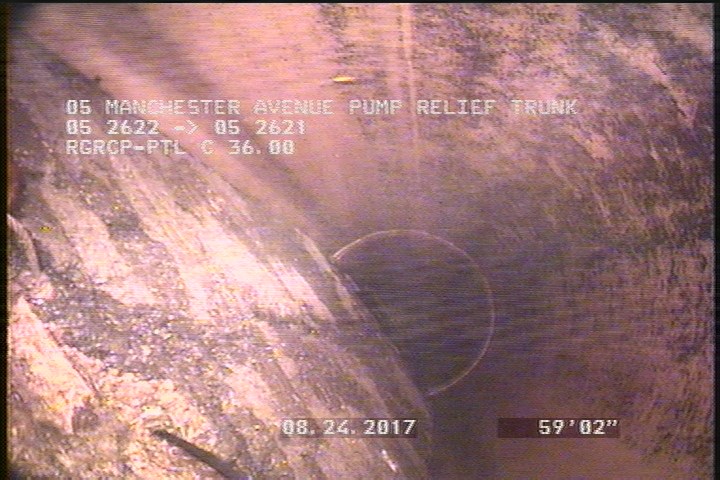

1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

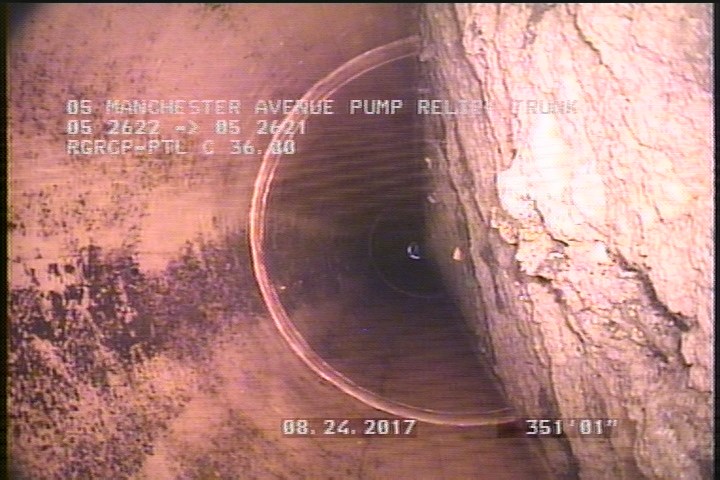

351.1 ft. - General Photograph - DEBRIS

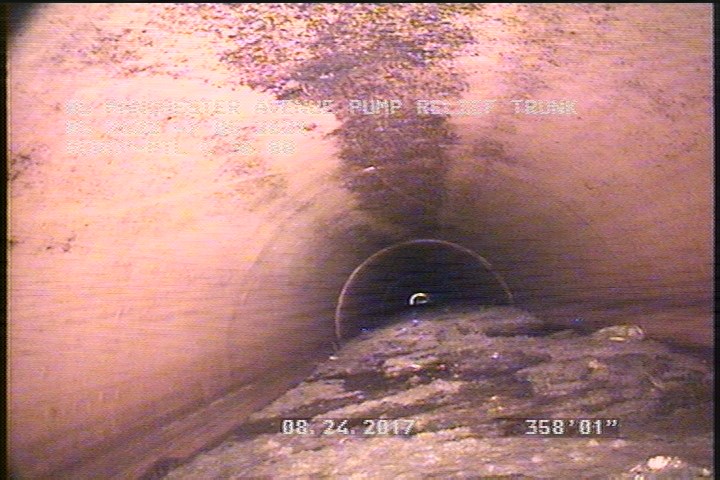

358.1 ft. - General Photograph - DEBRIS

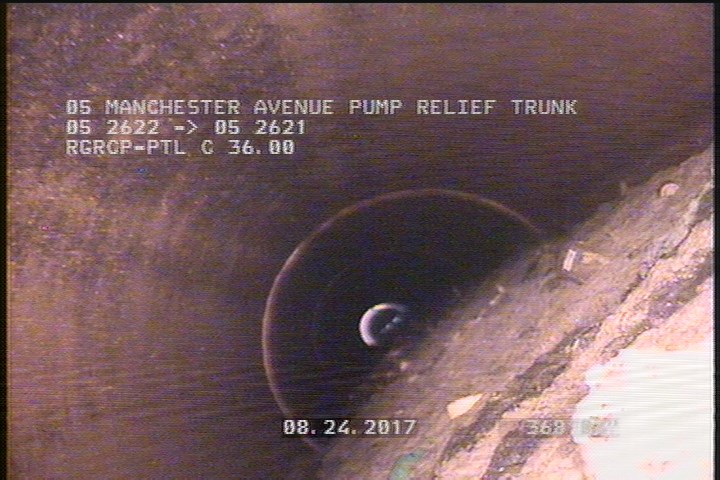

368.3 ft. - Deposits Settled Other, 55 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES - TONS OF DEBRIS

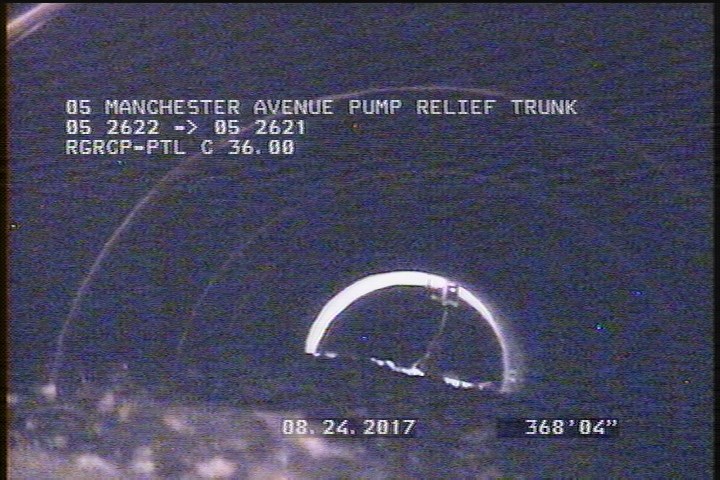

368.3 ft. - Survey Abandoned - ZOOMED ALL THE WAY TO MH 2621
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 368.3 | DSZ | TONS OF DEBRIS |
| 1 | DSZ | DEBRIS |
| 368.3 | MSA | ZOOMED ALL THE WAY TO MH 2621 |
| 0 | MWL | — |
| 368.3 | DSZ | DEBRIS |
| 0 | AMH | 1140 |
| 358.1 | MGP | DEBRIS |
| 0 | MWM | — |
| 351.1 | MGP | DEBRIS |
Properties (5)
- additional_info
- LOOKING FOR ANY MAJOR DAMAGE
- custom_field_three
- ZOOMED ALL THE WAY TO 2621, LINER IS GOOD
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-24T07:10:23-07:00
