Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 14, 2017, 07:43 AM

  • 02 0851_STACK_8142017_012359.mp4

Date
08/14/2017
W/O
0656803
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00297
PipeID
P03418
Time
12:43 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0613
Sewer Name
02 OLD RIVER SCHOOL ROAD RELIEF TRUNK, SECTS 2&3
City
DOWNEY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Capital Improvement Program Assesment
Project
20170814MDM_OLD_RIVER_SCHOOL_ROAD_RELIEF_SECTS_2_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
02 0851
Downstream MH
STACK
Dir. of Survey
Downstream
Length Surveyed
9 ft.
Total Length
9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 0851 to STACK
MH: 02 0851MH: STACKdownstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:55AM1 ft. MGO - General Observation - FRAME2 ft. MGO - General Observation - GRADE RING & RISER NORTH3 ft. MGO - General Observation - GRADE RING & RISER SOUTH4 ft. MGO - General Observation - STEPS WESTSIDE5 ft. MGO - General Observation - MH CONE SOUTHSIDE6 ft. MGO - General Observation - MH STACK NORTH SIDE7 ft. MGO - General Observation - MH STACK SOUTH7.5 ft. MGO - General Observation - POSSIBLE STUB CONN EASTSIDE8 ft. MGO - General Observation - SHELF EAST9 ft. MGO - General Observation - SHELF WEST

Observation photos (10)

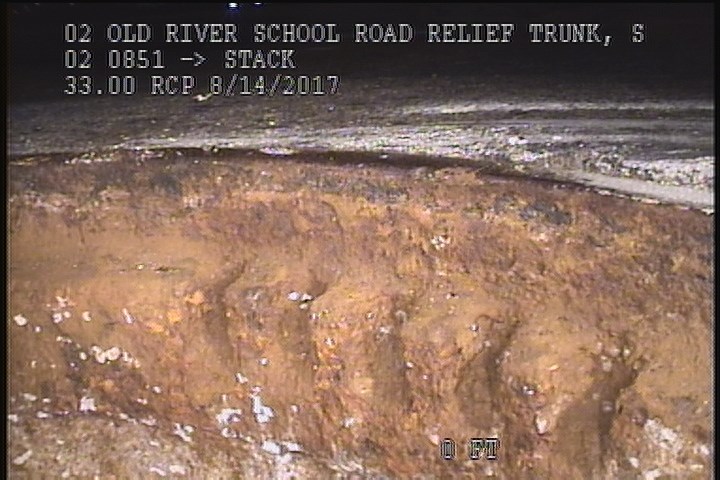

  • General Observation - FRAME

    1 ft. - General Observation - FRAME

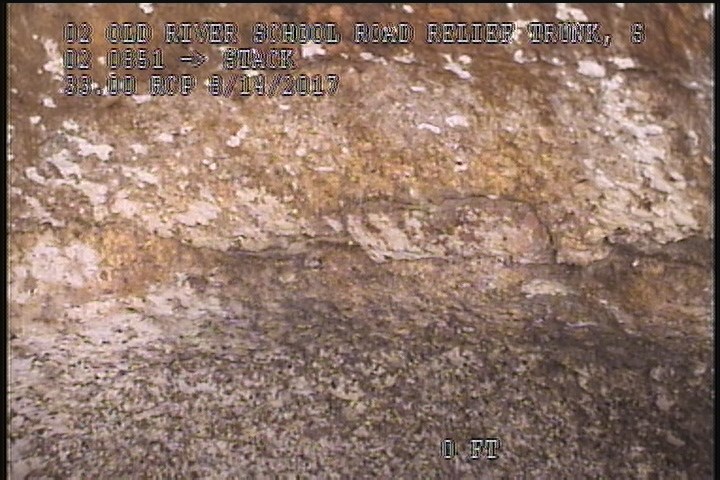

  • General Observation - GRADE RING & RISER NORTH

    2 ft. - General Observation - GRADE RING & RISER NORTH

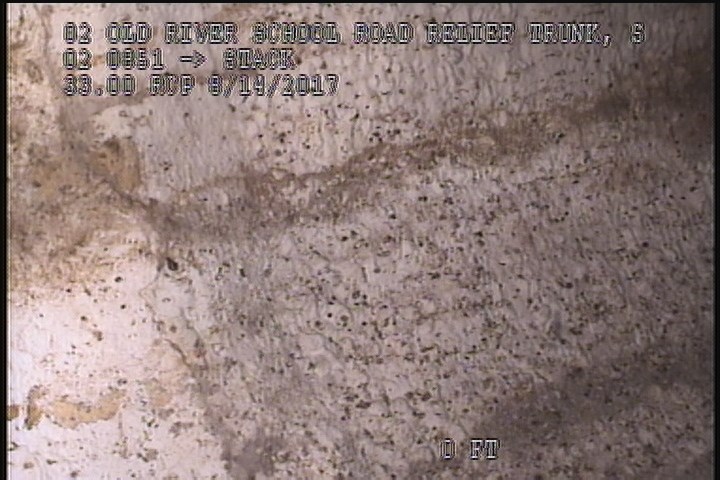

  • General Observation - GRADE RING & RISER SOUTH

    3 ft. - General Observation - GRADE RING & RISER SOUTH

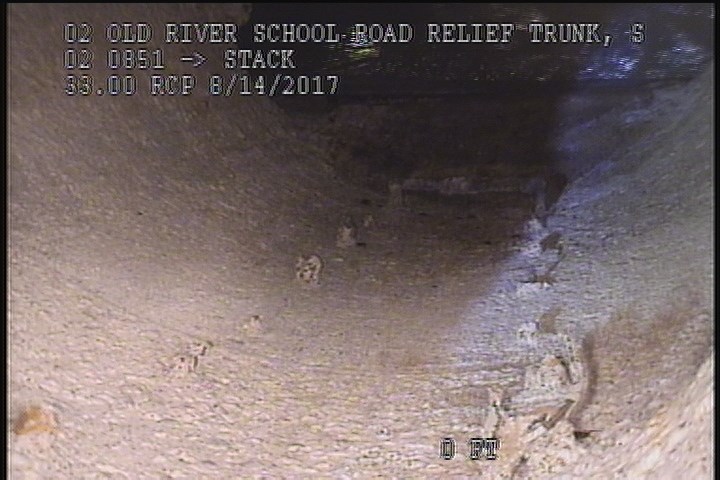

  • General Observation - STEPS WESTSIDE

    4 ft. - General Observation - STEPS WESTSIDE

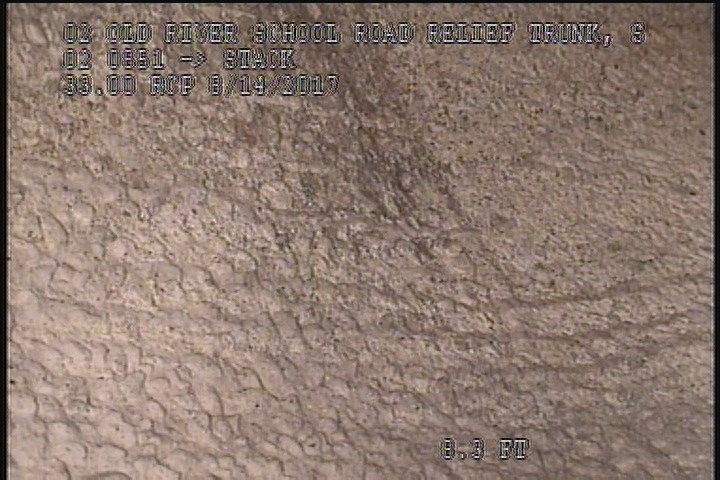

  • General Observation - MH CONE SOUTHSIDE

    5 ft. - General Observation - MH CONE SOUTHSIDE

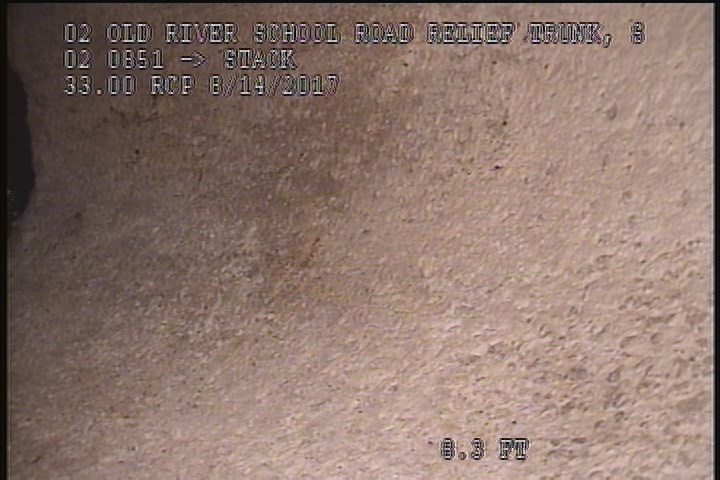

  • General Observation - MH STACK NORTH SIDE

    6 ft. - General Observation - MH STACK NORTH SIDE

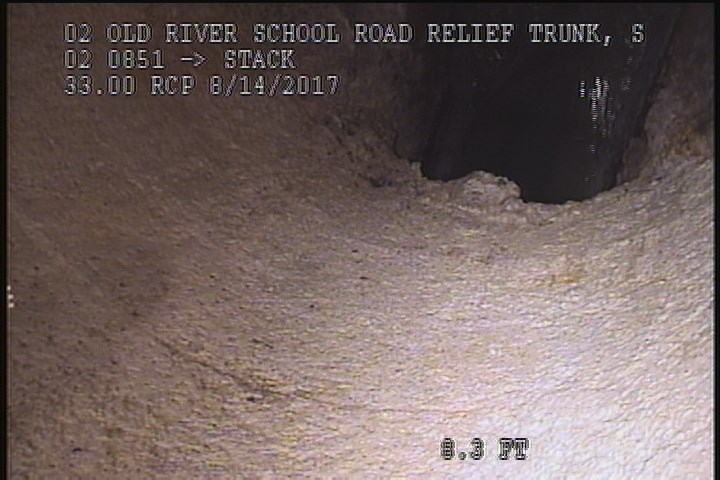

  • General Observation - MH STACK SOUTH

    7 ft. - General Observation - MH STACK SOUTH

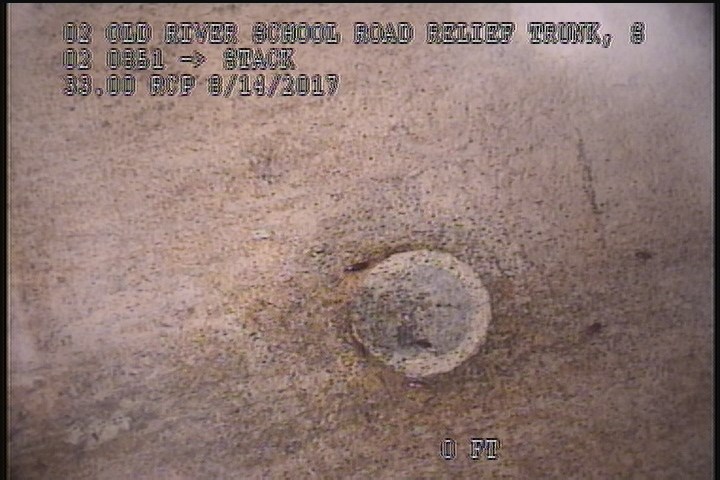

  • General Observation - POSSIBLE STUB CONN EASTSIDE

    7.5 ft. - General Observation - POSSIBLE STUB CONN EASTSIDE

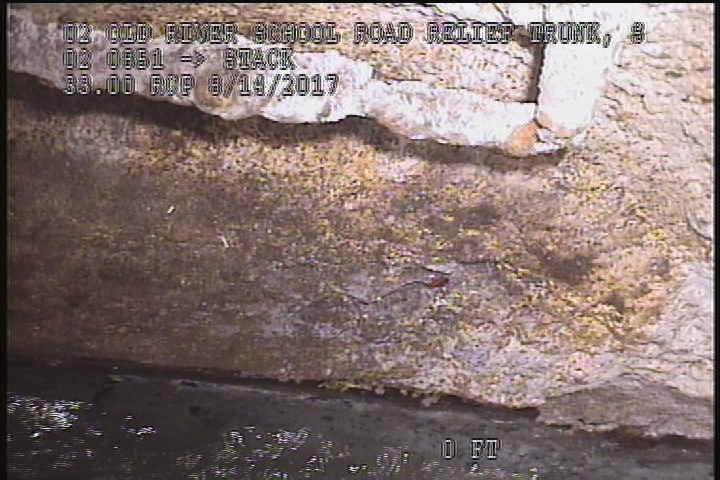

  • General Observation - SHELF EAST

    8 ft. - General Observation - SHELF EAST

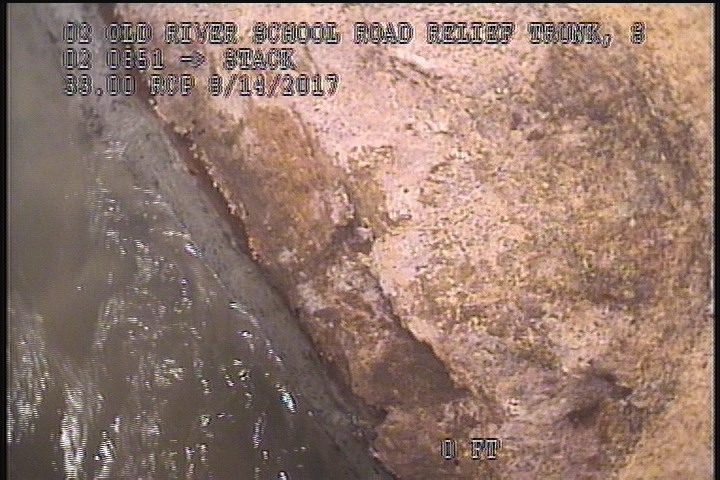

  • General Observation - SHELF WEST

    9 ft. - General Observation - SHELF WEST

All inspections of P03418Work order 0656803

Observations (11)

DistanceCodeObservation
5MGOMH CONE SOUTHSIDE
1MGOFRAME
6MGOMH STACK NORTH SIDE
9MGOSHELF WEST
4MGOSTEPS WESTSIDE
2MGOGRADE RING & RISER NORTH
7.5MGOPOSSIBLE STUB CONN EASTSIDE
0AMH12:55AM
7MGOMH STACK SOUTH
8MGOSHELF EAST
3MGOGRADE RING & RISER SOUTH

Properties (3)

additional_info
MH. TOPSIDE INSPECTION
customer
LACSD
datetime
2017-08-14T00:43:19-07:00
