Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 17, 2017, 08:22 AM

  • Section#13_F 0201_F 0200__8172017__G6804.mp4

Date
08/17/2017
W/O
0646419
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00048
PipeID
P10331
Time
1:22 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6804
Sewer Name
F JOINT OUTFALL F - UNIT 7F
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
38
Purpose
Capital Improvement Program Assesment
Project
20170812MDM_JOINT_OUTFALL_F_UNIT_7F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
F 0201
Downstream MH
F 0200
Dir. of Survey
Downstream
Length Surveyed
502.5 ft.
Total Length
502.5 ft.
Structural Index
2
Structural Quick
312S
Structural Rating
203
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
203
Pipe schematic from manhole F 0201 to F 0200
MH: F 0201MH: F 0200downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:25AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:002 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE9.4 ft. SAV - Surface Aggregate Visible, from 02 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC51.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 8" - ACTIVE93 ft. MGP - General Photograph - 80% MAG COAT136.8 ft. MGO - General Observation - POSSILE GREASE BALLS ON PIPE FROM HOT SEWAGE STEAM181.6 ft. MGO - General Observation - DISCLORED MAG COAT FROM GREASE COAT ON PIPE196.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB280 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB459.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB502.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE502.1 ft. MGO - General Observation - OLD MAG COAT 80% FINISH502.1 ft. MGO - General Observation - MH CONN ACTIVE 3:00502.5 ft. AMH - Downstream Manhole, Survey Ends - 2:10AM

Observation photos (6)

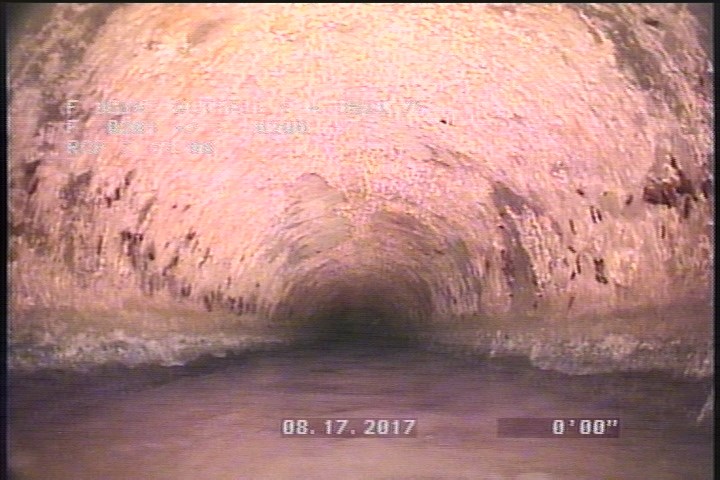

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

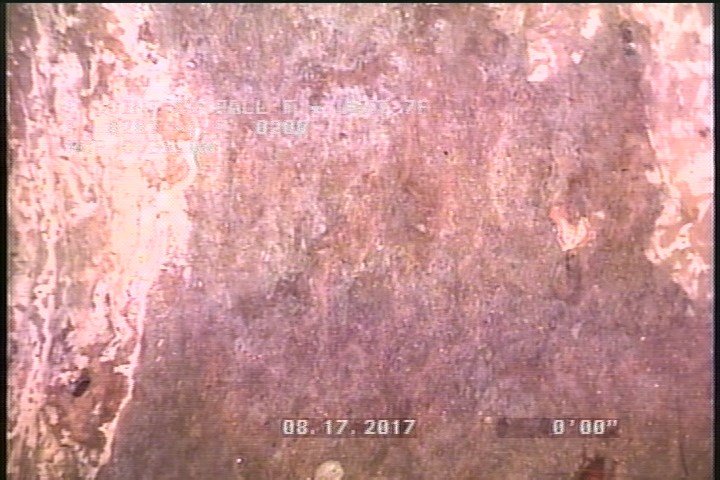

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

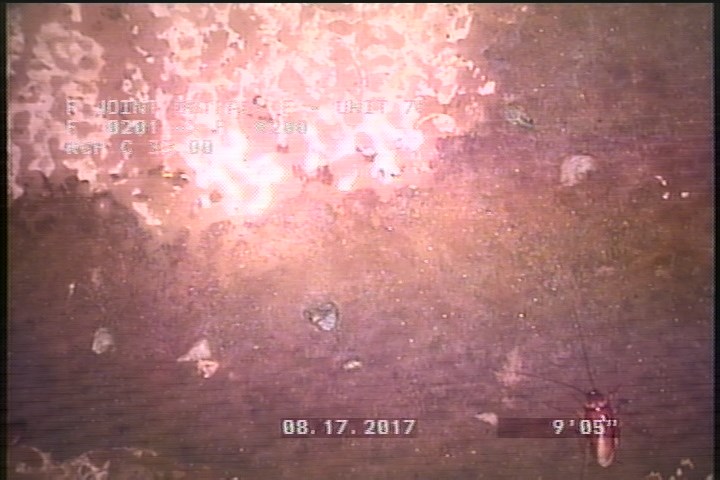

  • Surface Aggregate Visible, from 02 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

    9.4 ft. - Surface Aggregate Visible, from 02 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

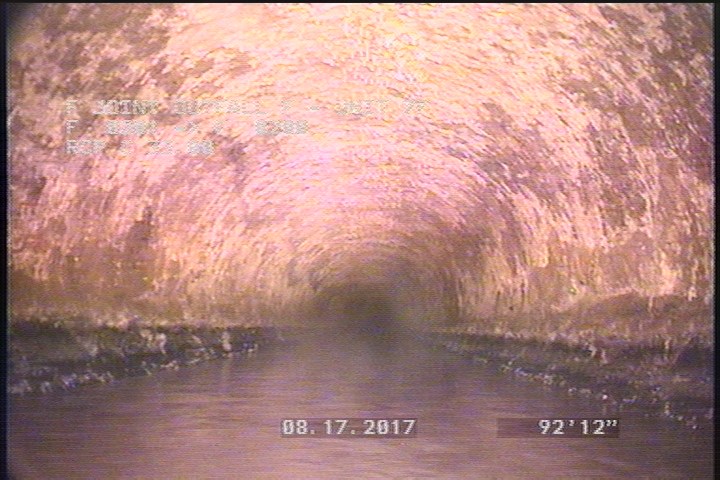

  • General Photograph - 80% MAG COAT

    93 ft. - General Photograph - 80% MAG COAT

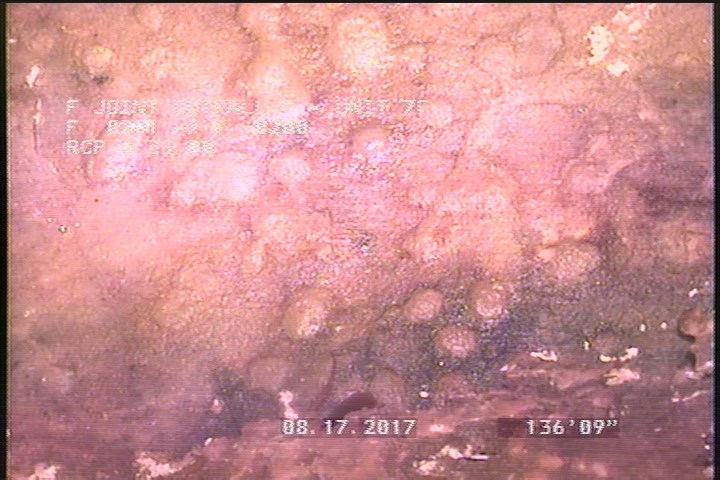

  • General Observation - POSSILE GREASE BALLS ON PIPE FROM HOT SEWAGE STEAM

    136.8 ft. - General Observation - POSSILE GREASE BALLS ON PIPE FROM HOT SEWAGE STEAM

  • General Observation - DISCLORED MAG COAT FROM GREASE COAT ON PIPE

    181.6 ft. - General Observation - DISCLORED MAG COAT FROM GREASE COAT ON PIPE

All inspections of P10331Work order 0646419

Observations (17)

DistanceCodeObservation
280TFCSTUB
502.1SSSBLISTERING PEELING CONCRETE
502.1MGOOLD MAG COAT 80% FINISH
0MWM—
0AMH1:25AM
181.6MGODISCLORED MAG COAT FROM GREASE COAT ON PIPE
2MGOMAG COAT 80% START 8:00 TO 4:00
2SSSBLISTERING PEELING CONCRETE
51.6TFACTIVE
0MWL—
502.5AMH2:10AM
93MGP80% MAG COAT
196.2TFCSTUB
9.4SAVSEVERE AGG SPORATIC
502.1MGOMH CONN ACTIVE 3:00
459.8TFCSTUB
136.8MGOPOSSILE GREASE BALLS ON PIPE FROM HOT SEWAGE STEAM

Properties (4)

custom_field_three
80% MAG COAT
custom_field_two
5
customer
LACSD
datetime
2017-08-17T01:22:51-07:00
