  • Section#10_F 0204_F 0203__8162017__G6802.mp4

Date
08/16/2017
W/O
0646419
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00048
PipeID
P10334
Time
2:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6803
Sewer Name
F JOINT OUTFALL F - UNIT 7F
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
38
Purpose
Capital Improvement Program Assesment
Project
20170812MDM_JOINT_OUTFALL_F_UNIT_7F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
F 0204
Downstream MH
F 0203
Dir. of Survey
Downstream
Length Surveyed
38.6 ft.
Total Length
38.6 ft.
Structural Index
2
Structural Quick
2700
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole F 0204 to F 0203
MH: F 0204MH: F 0203downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:40AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. MGO - General Observation - OLD MAG COAT 80% START 8:00 TO 4:0023.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB38.2 ft. MGO - General Observation - MAG COAT 80% FINISH38.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE38.2 ft. MGO - General Observation - MH CONN 3:00 ACTIVE38.6 ft. AMH - Downstream Manhole, Survey Ends - 4:45AM

Observation photos (2)

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

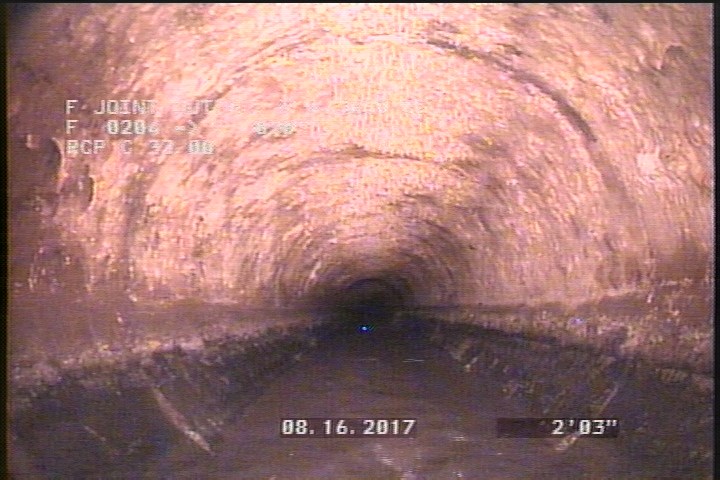

  • General Observation - OLD MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - OLD MAG COAT 80% START 8:00 TO 4:00

All inspections of P10334Work order 0646419

Observations (10)

DistanceCodeObservation
38.2MGOMAG COAT 80% FINISH
38.6AMH4:45AM
38.2SSSBLISTERING PEELING CONCRETE
2SSSBLISTERING PEELING CONCRETE
2MGOOLD MAG COAT 80% START 8:00 TO 4:00
0AMH4:40AM
0MWL—
38.2MGOMH CONN 3:00 ACTIVE
23.6TFCSTUB
0MWM—

Properties (4)

custom_field_three
80% MAG COAT
custom_field_two
5
customer
LACSD
datetime
2017-08-16T02:54:23-07:00
