Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 09:52 AM

  • Section#9_F 0205_F 0204__8162017__G6802.mp4

Date
08/16/2017
W/O
0646419
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00048
PipeID
P10335
Time
2:52 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6803
Sewer Name
F JOINT OUTFALL F - UNIT 7F
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
38
Purpose
Capital Improvement Program Assesment
Project
20170812MDM_JOINT_OUTFALL_F_UNIT_7F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
F 0205
Downstream MH
F 0204
Dir. of Survey
Downstream
Length Surveyed
394.7 ft.
Total Length
394.7 ft.
Structural Index
2
Structural Quick
2O00
Structural Rating
158
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
158
Pipe schematic from manhole F 0205 to F 0204
MH: F 0205MH: F 0204downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:002 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE U7NDER MAG COAT5.6 ft. MGO - General Observation - POSSIBLE BALLS OF GREASE ON PIPE FROM HEATED OILY SEWAGE32.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB116.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN156.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE212.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN238.6 ft. MGO - General Observation - 80% OLD MAG COAT271.8 ft. MGP - General Photograph394.1 ft. MGO - General Observation - OLD MAG COAT 80% FINISH394.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE UNDER MAG COAT394.7 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (6)

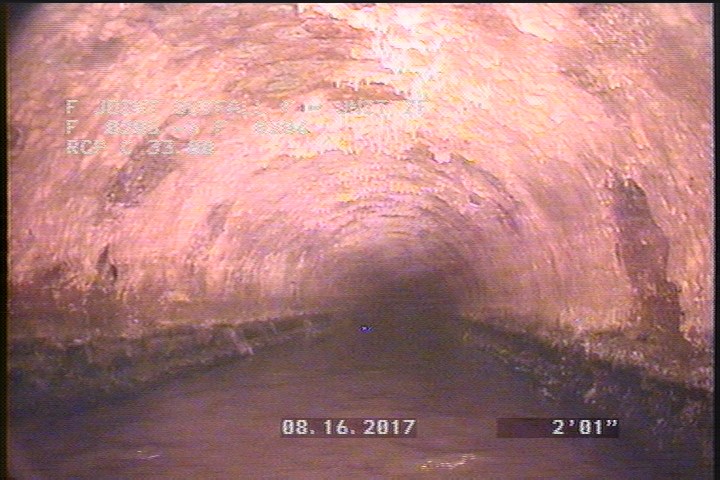

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

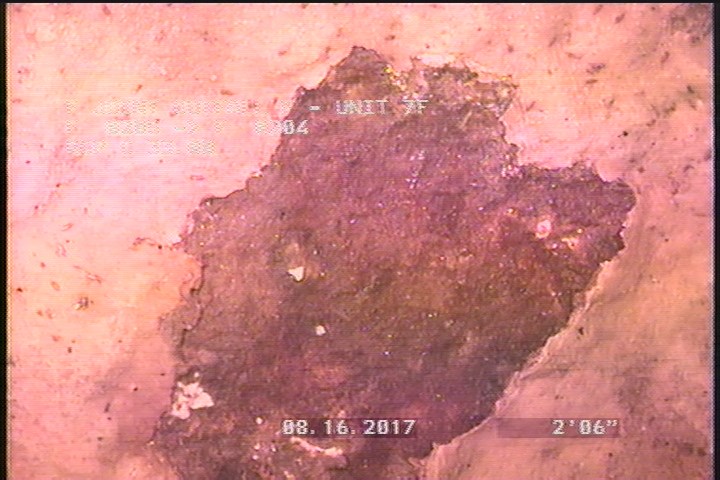

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE U7NDER MAG COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE U7NDER MAG COAT

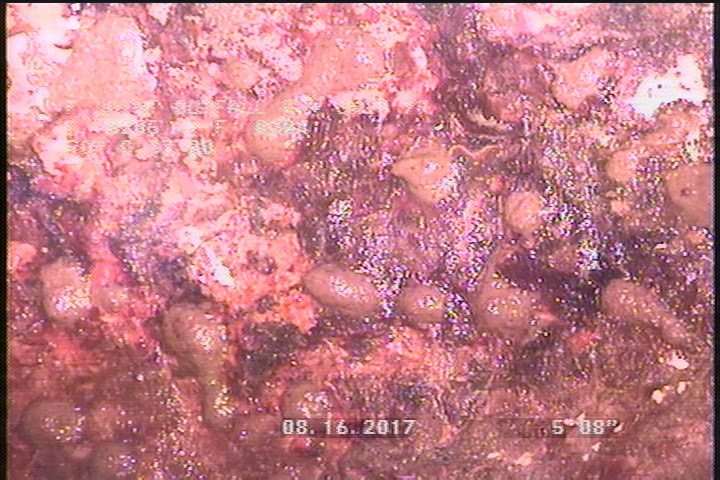

  • General Observation - POSSIBLE BALLS OF GREASE ON PIPE FROM HEATED OILY SEWAGE

    5.6 ft. - General Observation - POSSIBLE BALLS OF GREASE ON PIPE FROM HEATED OILY SEWAGE

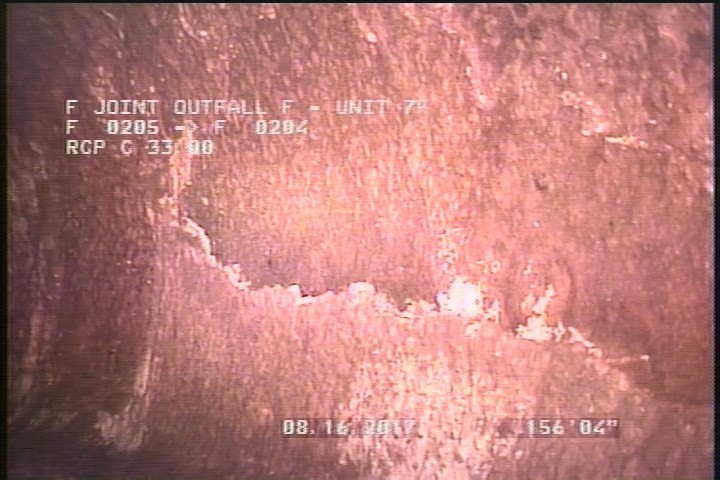

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

    156.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

  • General Observation - 80% OLD MAG COAT

    238.6 ft. - General Observation - 80% OLD MAG COAT

  • General Photograph

    271.8 ft. - General Photograph

All inspections of P10335Work order 0646419

Observations (15)

DistanceCodeObservation
0AMH4:00AM
116.9TFOPEN
394.1MGOOLD MAG COAT 80% FINISH
394.7AMH4:30AM
0MWM—
394.1SSSBLISTERING PEELING CONCRETE UNDER MAG COAT
212.6TFOPEN
32.5TFCSTUB
0MWL—
2MGOMAG COAT 80% START 8:00 TO 4:00
2SSSBLISTERING PEELING CONCRETE U7NDER MAG COAT
5.6MGOPOSSIBLE BALLS OF GREASE ON PIPE FROM HEATED OILY SEWAGE
156.3SSSPEELING CONCRETE
271.8MGP—
238.6MGO80% OLD MAG COAT

Properties (4)

custom_field_three
80% MAG COAT
custom_field_two
5
customer
LACSD
datetime
2017-08-16T02:52:32-07:00
