Wastewater/Activity/PacpInspection/1.0Aug 10, 2017, 06:15 PM
H 0187_H 0186_8102017_111742.mp4
- Date
- 08/10/2017
- W/O
- 0635578
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00168
- PipeID
- P10634
- Time
- 11:15 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7488
- Sewer Name
- H JOINT OUTFALL H - UNIT 2B
- City
- BELL GARDENS
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- 20170810SHO_JOINT_OUTFALL_H_UNIT_2B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- H 0187
- Downstream MH
- H 0186
- Dir. of Survey
- Downstream
- Length Surveyed
- 442.8 ft.
- Total Length
- 442.8 ft.
- Structural Index
- 3
- Structural Quick
- 3421
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (5)

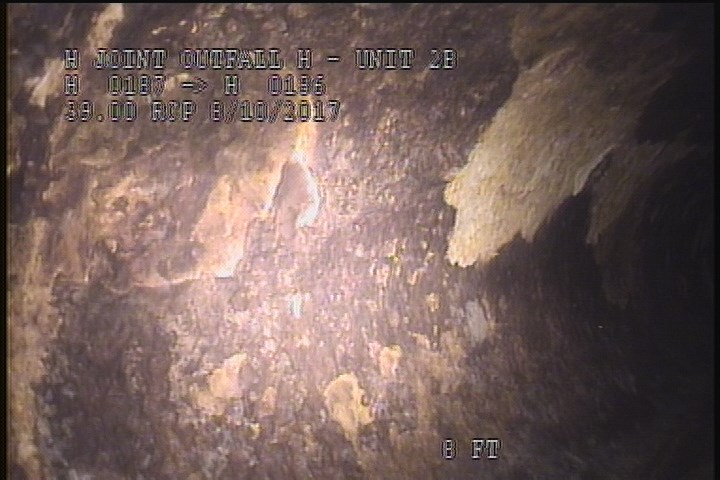

8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

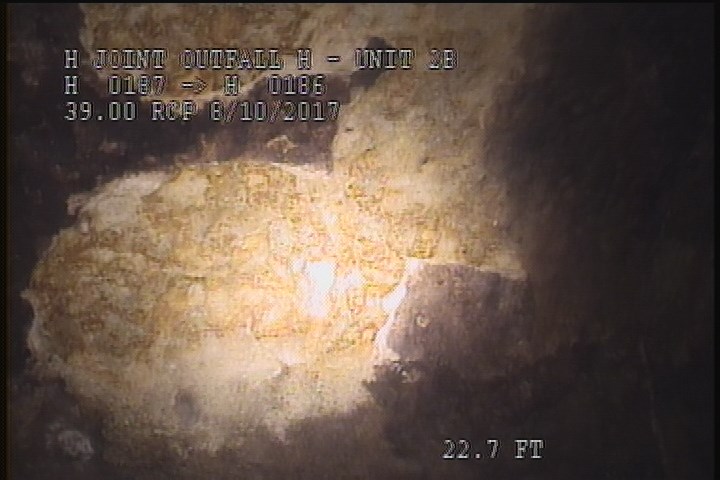

22.7 ft. - Surface Aggregate Visible, from 08 to 10 o'clock, within 8 inches of joint: NO

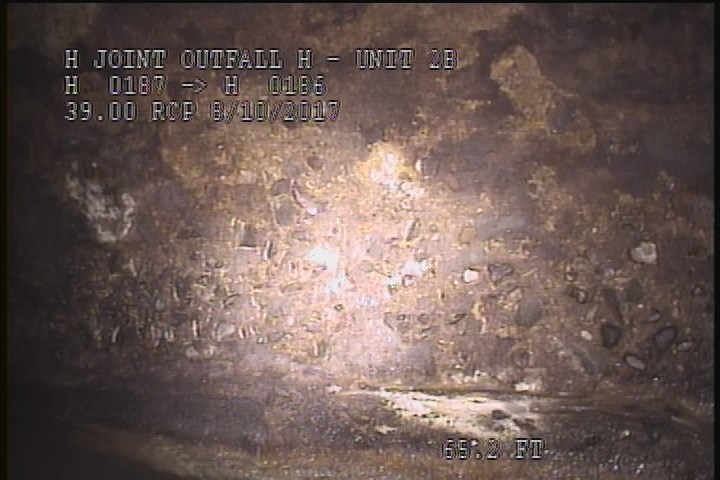

65.2 ft. - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: NO

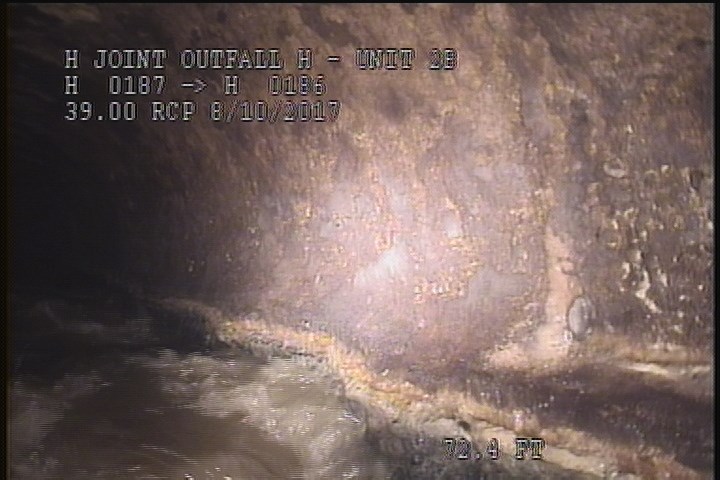

72.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SPORATIC

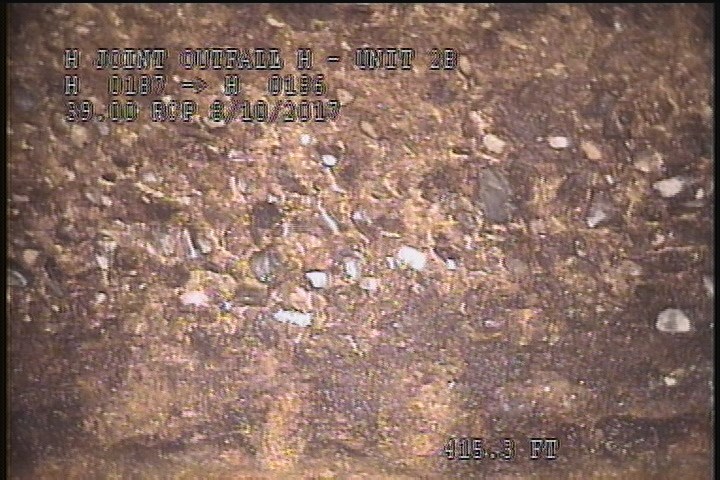

415.3 ft. - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 72.4 | SAP | SPORATIC |
| 442.8 | AMH | 1150 |
| 65.2 | SAP | — |
| 22.7 | SAV | — |
| 415.3 | SAP | — |
| 106.2 | SAP | — |
| 0 | AMH | 1117 |
| 0 | MWL | — |
| 441.6 | SSS | — |
| 8 | SSS | — |
Properties (4)
- custom_field_three
- PROJECTING AGGREGATE HERE AND THERE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-10T11:15:51-07:00
