Wastewater/Activity/PacpInspection/1.0Jun 27, 2017, 07:21 AM
15 0126_15 0125 _27062017_003253.mp4
- Date
- 06/27/2017
- W/O
- 624421
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00634
- PipeID
- P12025
- Time
- 12:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4594
- Sewer Name
- 15 TYLER AVENUE TRUNK
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_624421_TV15037_JUN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 15 0126
- Downstream MH
- 15 0125
- Dir. of Survey
- Downstream
- Length Surveyed
- 154.8 ft.
- Total Length
- 154.8 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 64
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 70
Observation photos (3)

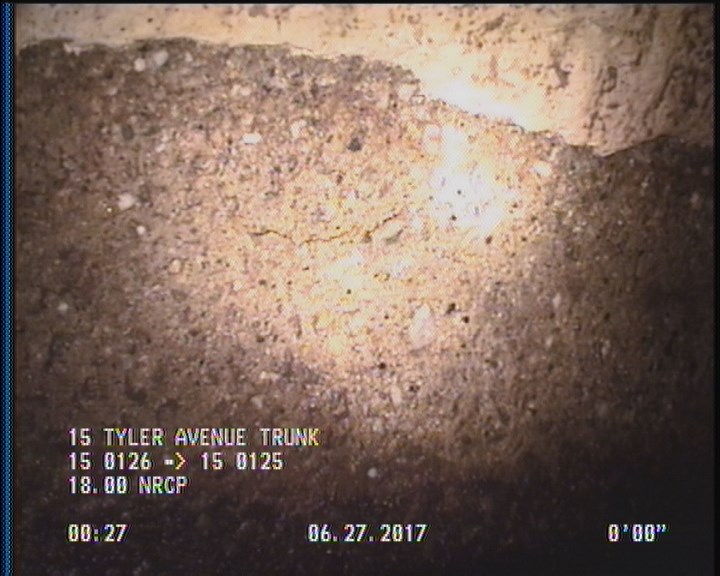

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

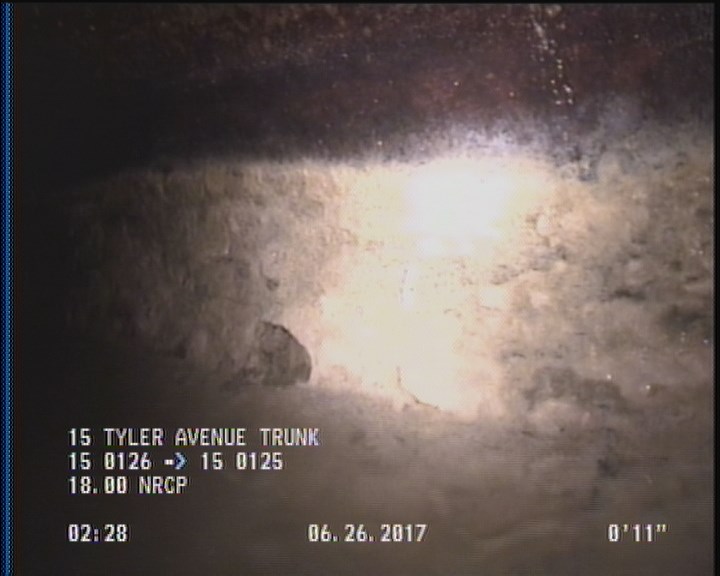

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

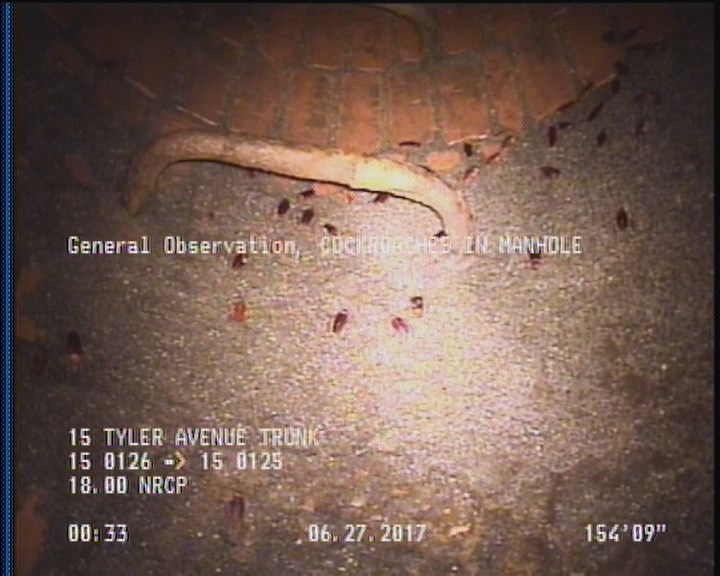

154.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 153.8 | SAV | — |
| 154.8 | MGO | ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK |
| 0 | MWL | — |
| 70.8 | TFC | — |
| 0 | MWM | — |
| 2 | SAV | — |
| 154.8 | AMH | 15 0125 |
| 55.6 | TF | — |
| 83.4 | MGO | 60% MAG COATING |
| 15.8 | TFA | — |
| 0 | AMH | 15 0126 |
| 2 | DAGS | — |
| 12.6 | TFC | — |
| 153.8 | DAGS | — |
| 154.8 | MGO | COCKROACHES IN MANHOLE |
Properties (5)
- additional_info
- SC345342
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-27T00:21:42-07:00
- sewer_category
- Gravity
