Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2017, 06:56 AM

  • 15 0117_15 0116 _28062017_001746.mp4

Date
06/27/2017
W/O
624421
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00634
PipeID
P12014
Time
11:56 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4595
Sewer Name
15 TYLER AVENUE TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_624421_TV15037_JUN2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0116
Downstream MH
15 0117
Dir. of Survey
Upstream
Length Surveyed
434.5 ft.
Total Length
434.5 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
258
O&M Index
2
O&M Quick
2P00
O&M Rating
172
Overall Index
3
Overall Quick
—
Overall Rating
430
Pipe schematic from manhole 15 0116 to 15 0117
MH: 15 0116MH: 15 0117upstream0 ft. AMH - Upstream Manhole, Survey Ends - 15 01170.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE2.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish92.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"113.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"216.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"224.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"310.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"336.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"342.8 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"359.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"381.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"409.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"432.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start432.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start434.5 ft. MWM - Water Mark, 15 %of cross sectional area434.5 ft. MGO - General Observation - MAG COATING 60%434.5 ft. AMH - Downstream Manhole, Survey Begins - 15 0116434.5 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

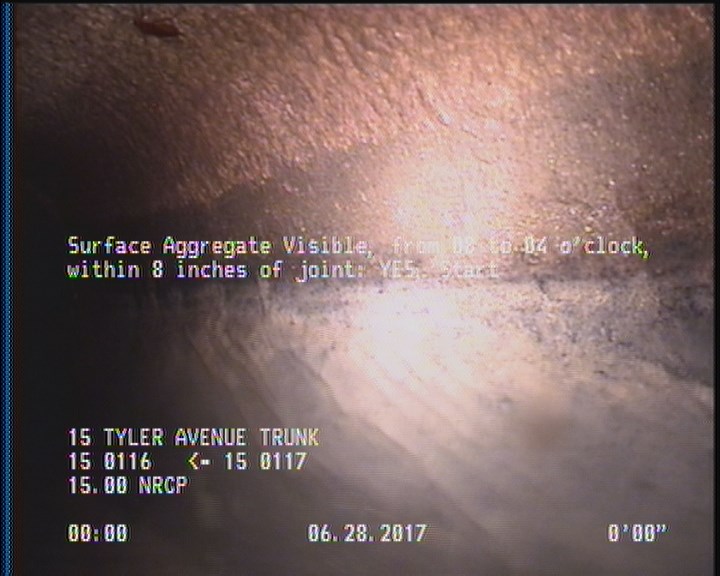

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

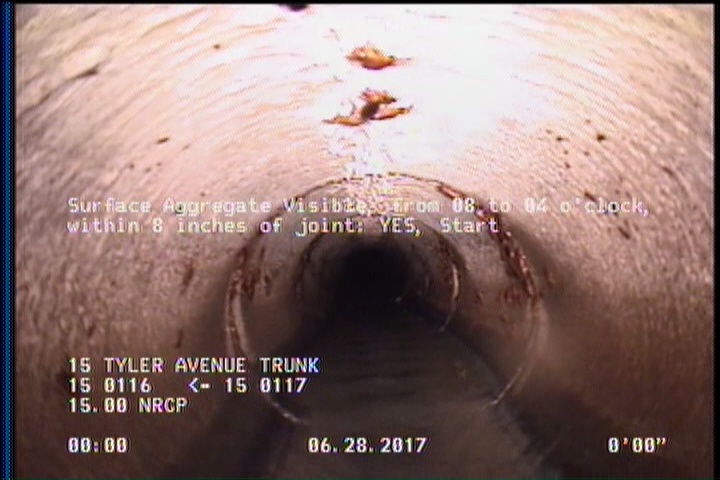

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P12014Work order 624421

Observations (22)

DistanceCodeObservation
0MWM—
53.2TFA—
98.3TF—
75.3TFA—
91.7TBA—
218TF—
434.3MGOCOCKROACHES IN MANHOLE
431.6SAV—
2DAGS—
2SAV—
341.9TBA—
434.5AMH15 0117
0MGOMAG COATING 60%
321.1TFC—
0AMH15 0116
124.4TFC—
431.6DAGS—
0MWL—
329.9TF—
24.6TF—
210TFA—
221TFA—

Properties (5)

additional_info
SC345421
custom_field_two
3
customer
LACSD
datetime
2017-06-27T23:56:46-07:00
sewer_category
Gravity
